Trunk Lid Garnish: Removal

  1. Remove the trunk lid trim.
    1. Remove the trunk handle.
    2. Remove the clips and the trunk lid trim.

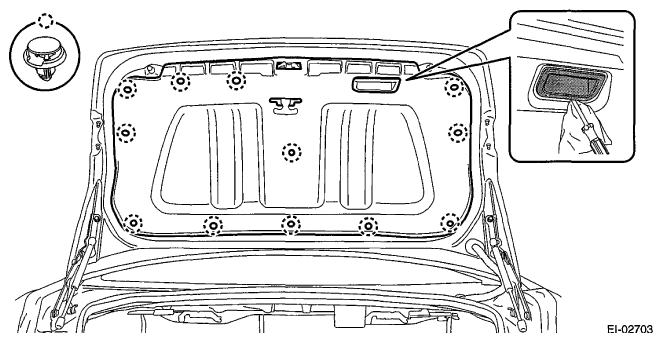

      Fig 1: Identifying Trunk Lid Trim Clips
      G06653627Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the trunk lid garnish.
    1. Remove the nuts.
    2. Remove the clips and the trunk lid garnish.

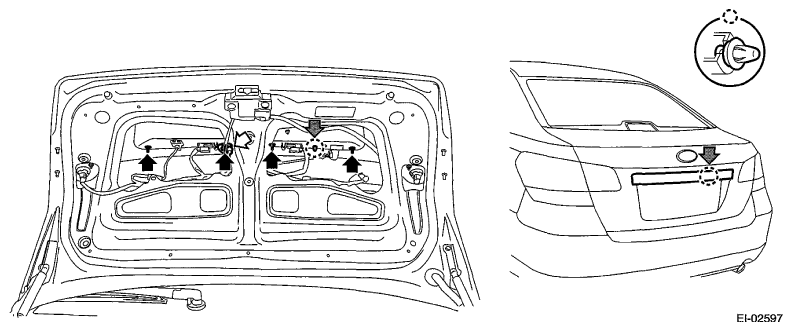

      Fig 2: Locating Trunk Lid Garnish Clips
      G06653628Courtesy of SUBARU OF AMERICA, INC.
