Cylinder Block: Installation

WARNING: This page is about a different variant/trim than selected.

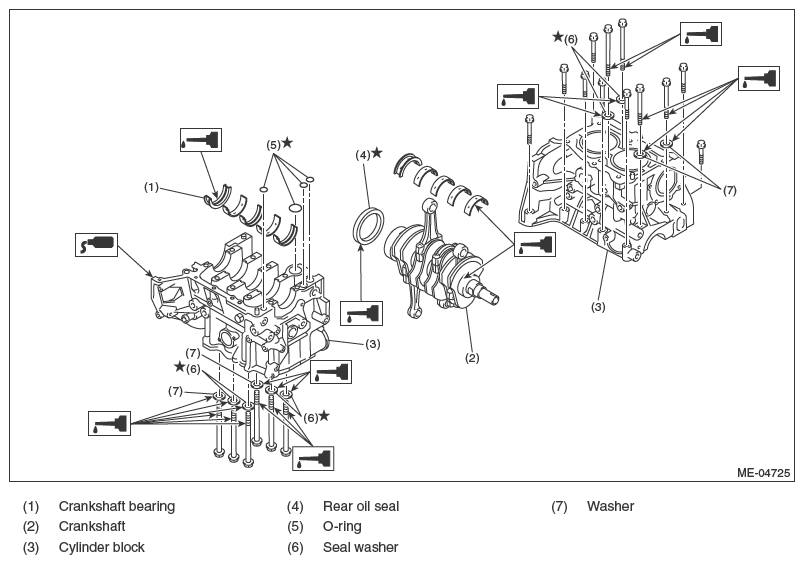

Fig 1: Identifying Cylinder Block Components

G07912056

Courtesy of SUBARU OF AMERICA, INC.

Remove oil on the mating surface of cylinder block before installation. Apply a coat of engine oil to the bearing and crankshaft journal.
Position the crankshaft and O-ring on cylinder block RH.
NOTE: Use new O-rings.
Apply liquid gasket to the mating surfaces of cylinder block RH, and position cylinder block LH.
NOTE:
- Install within 5 min. after applying liquid gasket.
- Do not allow liquid gasket to jut into O-ring grooves, oil passages, bearing grooves, etc.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Fig 2: Applying Liquid Gasket
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of engine oil to the washer and bolt thread.
NOTE: Use a new seal washer.
Tighten the 10 mm cylinder block connecting bolts on the LH side (A - D) in alphabetical order.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 3: Identifying Cylinder Block Connecting Bolts Tightening Sequence (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the 10 mm cylinder block connecting bolts on the RH side (E - J) in alphabetical order.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 4: Identifying Cylinder Block Connecting Bolts Tightening Sequence (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the LH side cylinder block connecting bolts (A - D) further in alphabetical order.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 5: Identifying Cylinder Block Connecting Bolts Tightening Sequence (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the RH side cylinder block connecting bolts (E - J) further in alphabetical order.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 6: Identifying Cylinder Block Connecting Bolts Tightening Sequence (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the LH side cylinder block connecting bolts (A - D) further in alphabetical order.
- (A), (C): Angle tightening
Tightening angle: 90°
- (B), (D): Torque tightening
Tightening torque:

40 N.m (4.1 kgf-m, 29.5 ft-lb)

Fig 7: Identifying Cylinder Block Connecting Bolts Tightening Sequence (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the RH side cylinder block connecting bolts (E - J) further in alphabetical order.
Tightening angle: 90°

Fig 8: Identifying Cylinder Block Connecting Bolts Tightening Sequence (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the 8 mm and 6 mm cylinder block connecting bolts on the LH side (A - H) in alphabetical order.
Tightening torque:

(A) - (G): 25 N.m (2.5 kgf-m, 18.4 ft-lb)

(H): 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 9: Identifying Cylinder Block Connecting Bolts Tightening Sequence (LH Side)
Courtesy of SUBARU OF AMERICA, INC.

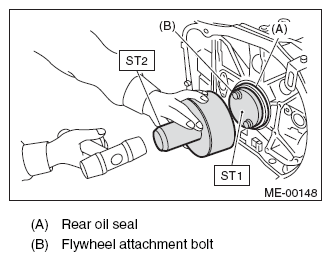

Apply a coat of engine oil to the oil seal inner periphery and outer periphery, and install the rear oil seal using ST1 and ST2.
NOTE: Use a new rear oil seal.

ST1 499597100 CRANKSHAFT OIL SEAL GUIDE

ST2 499587200 CRANKSHAFT OIL SEAL INSTALLER

Fig 10: Identifying Crankshaft Oil Seal Guide And Crankshaft Oil Seal Installer
Courtesy of SUBARU OF AMERICA, INC.
Position the top ring gap at (A) or (B) in the figure.
Position the second ring gap at 180° on the reverse side the top ring gap.

Fig 11: Identifying Position Second Ring Gap At 180°
Courtesy of SUBARU OF AMERICA, INC.
Position the upper rail gap at (C) in the figure.

Fig 12: Identifying Upper Rail Gap
Courtesy of SUBARU OF AMERICA, INC.
Align the upper rail spin stopper (E) to the side hole (D) on the piston.

Fig 13: Identifying Upper Rail Spin Stopper (E) And Side Hole (D)
Courtesy of SUBARU OF AMERICA, INC.
Position the expander gap at (F) in the figure on the 180° opposite direction of (C).

Fig 14: Identifying Expander Gap At (F)
Courtesy of SUBARU OF AMERICA, INC.
Set the lower rail gap at position (G), located 120° clockwise from (C) in the figure.

Fig 15: Identifying Lower Rail Gap At Position (G), Located 120° Clockwise From (C)
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Make sure ring gaps do not face the same direction.
- Make sure ring gaps are not within the piston skirt area.
Install the snap ring.
Before positioning the piston on the cylinder block, attach the snap ring in the service hole of the cylinder block, and the piston hole on the opposite side.

NOTE: Use new snap rings.

Fig 16: Attaching Snap Ring In Service Hole Of Piston
Courtesy of SUBARU OF AMERICA, INC.

Fig 17: Attaching Snap Ring In Service Hole Of Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 70 (7.1, 51.6)
Install the piston.
1. Set the parts so that the #1 and #2 cylinders are on the upper side.
2. Using the ST1, turn the crankshaft so that #1 and #2 connecting rods are set at bottom dead center.
  ST1 499987500 CRANKSHAFT SOCKET
3. Apply a coat of engine oil to the pistons and cylinders and insert pistons in their cylinders using ST2.
ST2 498747300 PISTON GUIDE

Fig 18: Identifying Crankshaft Socket And Piston Guide
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Face the piston front mark towards the front of the engine.

Fig 19: Identifying Piston Front Mark
Courtesy of SUBARU OF AMERICA, INC.
Install the piston pin.
1. Apply a coat of engine oil to ST3.
2. Insert ST3 into the service hole to align the piston pin hole and the connecting rod small end.
  ST3 499017100 PISTON PIN GUIDE

  Fig 20: Identifying Piston Pin Guide
  Courtesy of SUBARU OF AMERICA, INC.
3. Apply a thin coat of engine oil to piston pin, and insert the piston pin into piston and connecting rod through service hole.
4. Install the snap ring.
  NOTE: Use new snap rings.

  Fig 21: Installing Snap Ring
  Courtesy of SUBARU OF AMERICA, INC.
5. Apply liquid gasket to the threaded portion of the service hole plug.
  Liquid gasket:

  THREE BOND 1105 (Part No. 004403010) or equivalent

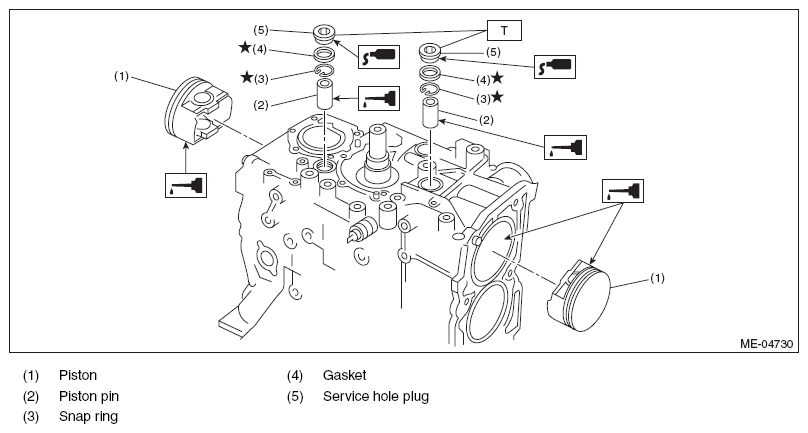

  Fig 22: Identifying Service Hole Plug
  Courtesy of SUBARU OF AMERICA, INC.
6. Install the service hole plug and gasket.
  NOTE: Use a new gasket.

  Tightening torque:

  70 N.m (7.1 kgf-m, 51.6 ft-lb)

  Fig 23: Installing Service Hole Plug And Gasket
  Courtesy of SUBARU OF AMERICA, INC.

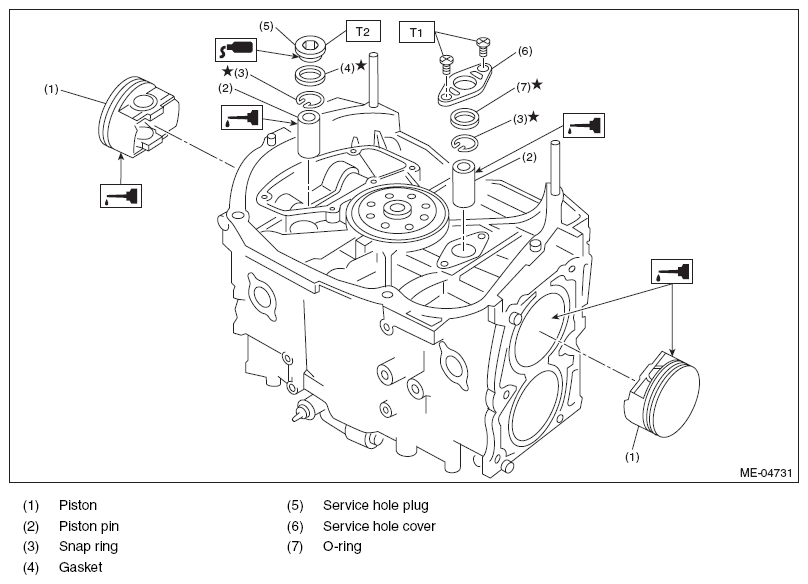

  Fig 24: Identifying Cylinder Block Components
  Courtesy of SUBARU OF AMERICA, INC.
7. Set the parts so that the #3 and #4 cylinders are on the upper side. Following the same procedures as used for #1 and #2 cylinders, install the pistons and piston pins.
8. Install the service hole cover.
  NOTE: Use new O-rings.

  Tightening torque:

  6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6.4 (0.7, 4.7)

  T2: 70 (7.1, 51.6)
9. Install the water by-pass pipe.
  Tightening torque:

  T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

  Fig 25: Water By-Pass Pipe Clamping Bolts With Torque Specification
  Courtesy of SUBARU OF AMERICA, INC.

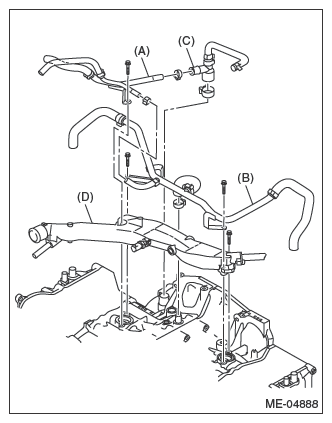

10. Install blow-by pipe assembly (A), blow-by pipe (B), PCV hose assembly (C) and water pipe assembly (D).
  NOTE: For the blow-by pipe assembly (A), blow-by pipe (B) and PCV hose assembly (C), use a new clamp, fit the cut out in the ST with the protrusion on the clamp as shown in the figure, and lock the clamp.

  ST 18353AA000 CLAMP PLIERS

  Fig 26: Identifying Clamp Pliers (ST 18353AA000)
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque:

  6.5 N.m (0.7 kgf-m, 4.8 ft-lb)

  Fig 27: Identifying Blow-By Pipe Assembly (A), Blow-By Pipe (B), PCV Hose Assembly (C) And Water Pipe Assembly (D)
  Courtesy of SUBARU OF AMERICA, INC.
11. Install the baffle plate.
  NOTE:
  - Use a new seal.
  - Make sure that the seals (A) are installed securely on the baffle plate in a direction as shown in the figure below.
  Fig 28: Identifying Baffle Plate Seals
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque:

  6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
12. Apply liquid gasket to the mating surfaces of cylinder block lower, and install the cylinder block lower.
  CAUTION: Be careful not to apply any liquid gasket to the O-ring attachment section.
  NOTE:
  - Use new O-rings.
  - Before installing the cylinder block lower, clean the mating surface of cylinder block lower and cylinder block.
  - Install within 5 min. after applying liquid gasket.
  Liquid gasket:

  THREE BOND 1217G (Part No. K0877Y0100) or equivalent

  Fig 29: Applying Liquid Gasket
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque:

  T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

  Fig 30: Oil Pan Mounting Bolts With Torque Specification
  Courtesy of SUBARU OF AMERICA, INC.
13. Apply liquid gasket to the mating surfaces of oil pan, and install the oil pan.
  NOTE:
  - Before installing the oil pan, clean the mating surface of oil pan and cylinder block.
  - Install within 5 min. after applying liquid gasket.
  Liquid gasket:

  THREE BOND 1217G (Part No. K0877Y0100) or equivalent

  Fig 31: Applying Liquid Gasket
  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque:

  5 N.m (0.5 kgf-m, 3.7 ft-lb)

  Fig 32: Locating Oil Pan Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
14. Secure the oil level switch harness to the cylinder block with clip.

  Fig 33: Locating Oil Level Switch Harness Clip
  Courtesy of SUBARU OF AMERICA, INC.
15. Apply liquid gasket to the mating surface of oil separator cover and the threaded portion of bolt (A) shown in the figure (when reusing the bolt), and then install the oil separator cover.
  NOTE:
  - Install within 5 min. after applying liquid gasket.
  - Use new oil separator cover.
  Liquid gasket:

  Mating surface

  THREE BOND 1217G (Part No. K0877Y0100) or equivalent

  Bolt thread (A) (when reusing the bolt)

  THREE BOND 1324 (Part No. 004403042) or equivalent

  Tightening torque:

  6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

  Fig 34: Identifying Oil Separator Cover And Threaded Portion Of Bolt (A)
  Courtesy of SUBARU OF AMERICA, INC.
16. Install the flywheel. Refer to FLYWHEEL .
17. Install the clutch disc and cover. Refer to CLUTCH DISC AND COVER .
18. Install the oil pump.
  1. Using the ST, install the front oil seal.
    ST 499587100 OIL SEAL INSTALLER

    NOTE: Use a new front oil seal.

    Fig 35: Installing Front Oil Seal
    Courtesy of SUBARU OF AMERICA, INC.
  2. Apply liquid gasket to the mating surfaces of oil pump.
    NOTE: Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100) or equivalent

    Fig 36: Applying Liquid Gasket
    Courtesy of SUBARU OF AMERICA, INC.
  3. Apply a thin coat of engine oil to the inside of front oil seal.

    Fig 37: Applying Thin Coat Of Engine Oil To Inside Of Front Oil Seal
    Courtesy of SUBARU OF AMERICA, INC.
  4. Install the oil pump to cylinder block.
    CAUTION:
    Be careful not to damage the front oil seal during installation.

    Make sure the front oil seal lip is not folded.
    NOTE:
    Align the flat surface of oil pump's inner rotor with that of crankshaft before installation.

    Use new O-rings.

    Do not forget to assemble O-rings.
  5. Apply liquid gasket to the three bolts thread shown in figure. (when reusing bolts)
  Liquid gasket:

  THREE BOND 1324 (Part No. 004403042) or equivalent

  Tightening torque:

  6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  Fig 38: Applying Liquid Gasket To Three Bolts Thread
  Courtesy of SUBARU OF AMERICA, INC.

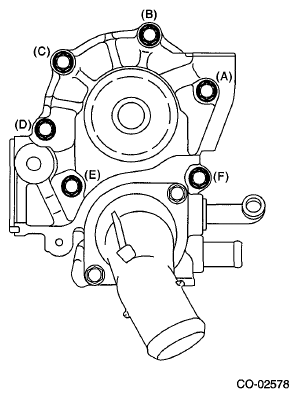

19. Install the water pump and gasket.
  NOTE:
  - When installing the water pump, tighten bolts in two stages in alphabetical order as shown in the figure.
  - Use a new gasket.
  - Use new water pump sealing.
  Tightening torque:

  First:

  12 N.m (1.2 kgf-m, 8.9 ft-lb)

  Second:

  12 N.m (1.2 kgf-m, 8.9 ft-lb)

  Fig 39: Identifying Tightening Bolts Tightening Sequence
  Courtesy of SUBARU OF AMERICA, INC.
20. Install the hose to water pump.
21. Install the oil cooler. (MT model) Refer to ENGINE OIL COOLER .
22. Install the oil filter. Refer to ENGINE OIL FILTER .
23. Install the cylinder head. Refer to , INSTALLATION , Cylinder Head.
24. Install the camshaft. Refer to , INSTALLATION , Camshaft.
25. Install the A/C compressor together with the bracket.
  Tightening torque:

  36 N.m (3.7 kgf-m, 26.6 ft-lb)
26. Install the crank sprocket. Refer to , INSTALLATION , Crank Sprocket.
27. Install the cam sprocket. Refer to , INSTALLATION , Cam Sprocket.
28. Install the timing belt. Refer to , INSTALLATION , Timing Belt.
29. Adjust the valve clearance. Refer to , ADJUSTMENT , Valve Clearance.

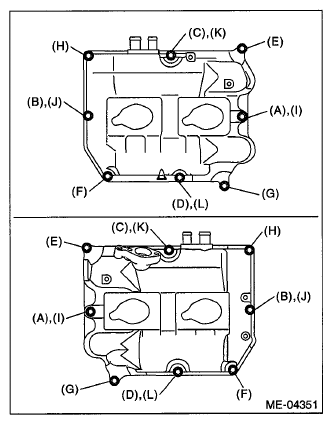

30. Install the rocker cover.
  1. Install the rocker cover gasket to the rocker cover. (Outer section and ignition coil section)
    NOTE: Use a new rocker cover gasket.

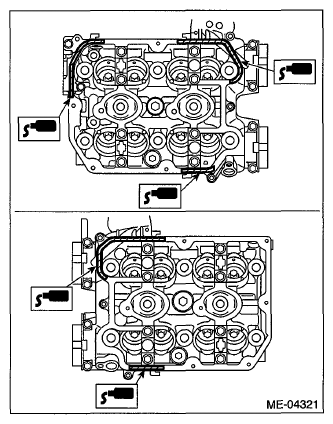

  2. Apply liquid gasket to the specified point of the cylinder head.
    NOTE: Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100) or equivalent

    Fig 40: Applying Liquid Gasket
    Courtesy of SUBARU OF AMERICA, INC.
  3. Install the rocker cover onto cylinder heads. Ensure the gasket is properly positioned during installation.
  4. Temporarily tighten the rocker cover bolts in alphabetical order shown in the figure, and then tighten to specified torque in alphabetical order.
  Tightening torque:

  6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  Fig 41: Identifying Rocker Cover Bolts Tightening Sequence
  Courtesy of SUBARU OF AMERICA, INC.
31. Connect the PCV hose to the rocker cover.
32. Install the timing belt cover. Refer to , INSTALLATION , Timing Belt Cover.
33. Install the crank pulley. Refer to , INSTALLATION , Crank Pulley.
34. Install the intake manifold. Refer to INTAKE MANIFOLD .
35. Install the engine to the vehicle. Refer to , INSTALLATION , Engine Assembly.
