Wastegate Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

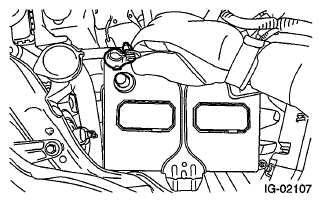

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator sub fan motor assembly. Ref. to REMOVAL , Radiator Sub Fan and Fan Motor.
Remove the screws which hold the wastegate control solenoid valve to the intake duct.

Fig 2: Locating Wastegate Control Solenoid Valve To Intake Duct And Screws
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. Ref. to REMOVAL , Front Under Cover.
Disconnect the connector and air control hose from the wastegate control solenoid valve, and remove the wastegate control solenoid valve from the intake duct.

Fig 3: Locating Air Control Hose From Wastegate Control Solenoid Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
