Radiator Sub Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

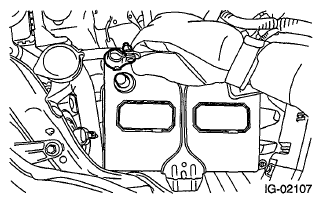

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Disconnect the sub fan motor connector (B).

Fig 2: Identifying Sub Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts that secure the radiator sub fan motor assembly.

Fig 3: Locating Radiator Sub Fan Motor Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator sub fan motor assembly from the upper side of the vehicle.
