Chain Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the mating surfaces of the cylinder block, cylinder head and oil pan upper as shown in the figure.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Fig 1: Identifying Liquid Gasket Applying Area On Cylinder Block, Cylinder Head And Oil Pan Upper
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surface of the chain cover.
NOTE: Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100) or equivalent

Liquid gasket applying diameter:

3.5±0.5 mm (0.138±0.020 in)

Fig 2: Identifying Liquid Gasket Applying Area On Chain Cover
Courtesy of SUBARU OF AMERICA, INC.
Attach the chain cover and temporarily tighten the chain cover installation bolts.
CAUTION: Do not install the chain cover installation bolts in wrong place.

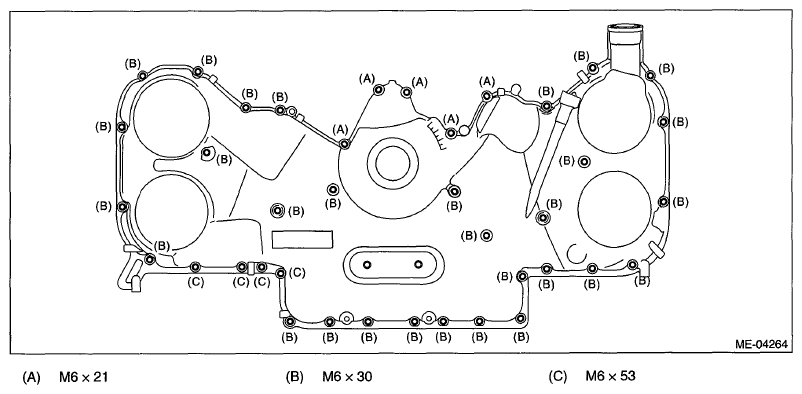

Fig 3: Identifying Chain Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the chain cover installing bolts in the numerical order as shown in the figure.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 4: Identifying Chain Cover Bolts In Tightening Order
Courtesy of SUBARU OF AMERICA, INC.
Install the oil cooler pipe to the chain cover.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 5: Locating Oil Cooler Pipe Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install front mounting bracket to the cradle.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Fig 6: Locating Front Mounting Bracket Of Cradle
Courtesy of SUBARU OF AMERICA, INC.
Install the front mount.
Tightening torque:

T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T2:45 N.m (4.6 kgf-m, 33.2 ft-lb)

Fig 7: Front Mount With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Remove the lifting device and wire ropes.
Install the radiator. Ref. to INSTALLATION , Radiator.
Install the radiator main & fan motor and radiator sub fan & fan motor. Ref. to INSTALLATION , Radiator Main Fan and Fan Motor.
Install the reservoir tank. Ref. to INSTALLATION , Reservoir Tank.
Attach the grille bracket.

Fig 8: Locating Grille Bracket Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the crank pulley. Ref. to INSTALLATION , Crank Pulley.
Install the V-belts. Ref. to INSTALLATION , V-belt.
Install the throttle body to intake manifold.
NOTE: Use a new gasket.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Remove the ST (hanger) and install the engine hanger bracket.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 9: Locating Engine Hanger Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine harness connector to the engine hanger bracket.

Fig 10: Identifying Engine Harness Connector Of Engine Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the throttle body.

Fig 11: Identifying Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine harness connector.

Fig 12: Identifying Engine Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to INSTALLATION , V-belt.
Install the air intake boot assembly. Ref. to INSTALLATION , Air Intake Boot.
Install the air intake duct. Ref. to INSTALLATION , Air Intake Duct.
Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
Fill engine coolant. Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Fill engine oil. Ref. to REPLACEMENT , Engine Oil.
Make sure there is no oil leaks in the chain cover mating surface.
Install the under cover. Ref. to INSTALLATION , Front Under Cover.
Install the collector cover.
Change the bolt mounting position from (B) to (A), and completely close the front hood.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Fig 13: Identifying Front Hood Damper Bolt Mounting Position
Courtesy of SUBARU OF AMERICA, INC.
