CVT Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front bumper. Ref. to
REMOVAL
, Front Bumper.
- Remove the headlight assembly (LH). Ref. to
REMOVAL
, Headlight Assembly.
- Remove the inlet hose and outlet hose.
Courtesy of SUBARU OF AMERICA, INC.

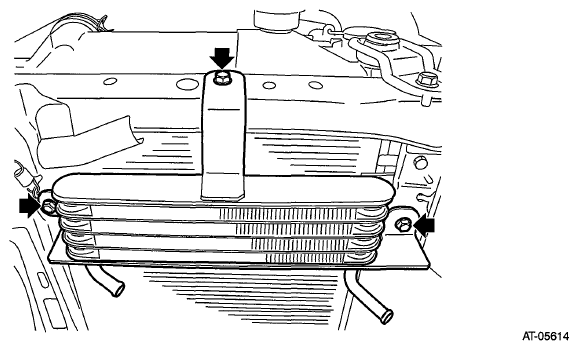

- Remove the CVTF oil cooler.
Courtesy of SUBARU OF AMERICA, INC.
