Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands.

Disconnect the ground cable from battery.
Remove the clips and remove the air intake duct. (When removing the headlight RH).

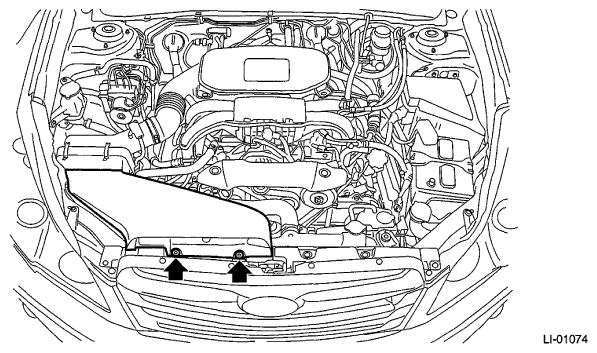

Fig 1: Locating Air Intake Duct Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the front bumper face assembly. Ref. to REMOVAL , Front Bumper.
Remove the fender cover assembly UPR.
1. Remove the clip.
2. Release the claws of the fender cover assembly UPR by pulling it forward and remove the fender cover.

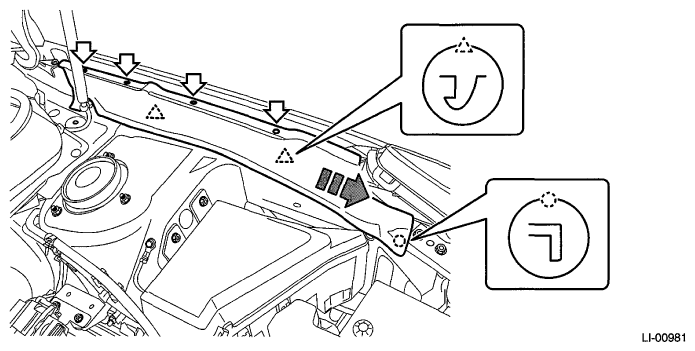

  Fig 2: Identifying Fender Cover Assembly UPR Claws And Clip
  Courtesy of SUBARU OF AMERICA, INC.
Remove the headlight assembly.
1. Remove the bolts and clips, and pull out the headlight assembly to the front of the vehicle.

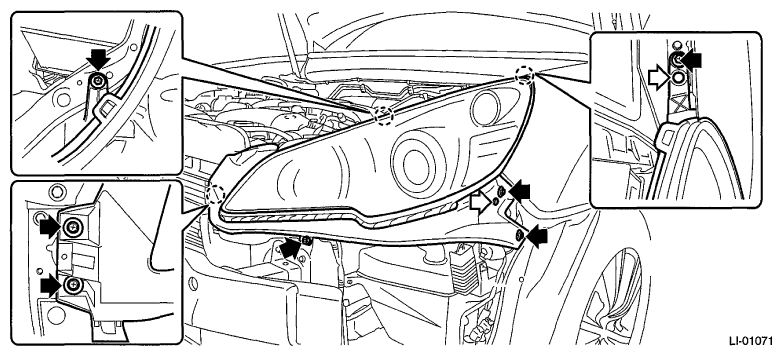

  Fig 3: Locating Headlight Assembly Bolts And Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the connector and remove the headlight assembly.
  - Headlight connector RH

    Fig 4: Disconnecting Headlight Assembly Connector RH
    Courtesy of SUBARU OF AMERICA, INC.
  - Headlight connector LH

    Fig 5: Disconnecting Headlight Assembly Connector LH
    Courtesy of SUBARU OF AMERICA, INC.
