Section 6 (Cooling System (H4SO)): Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Disconnect the ground cable from battery.

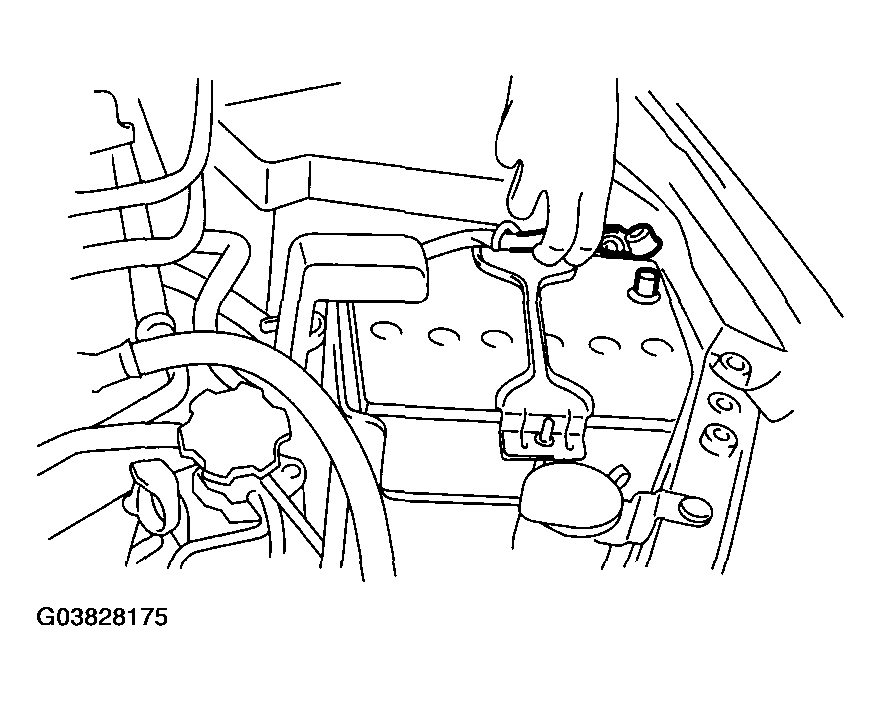

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Drain engine coolant completely. < Ref. to , DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Disconnect the connector (A) of radiator main fan motor and connector (B) of sub fan motor.

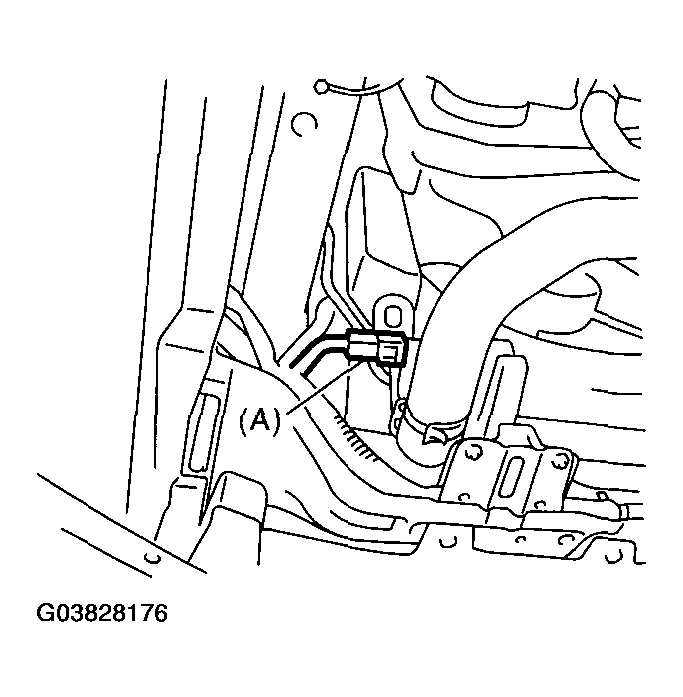

Fig 2: Disconnecting Connector Of Radiator Main Fan Motor And Connector Of Sub Fan Motor (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

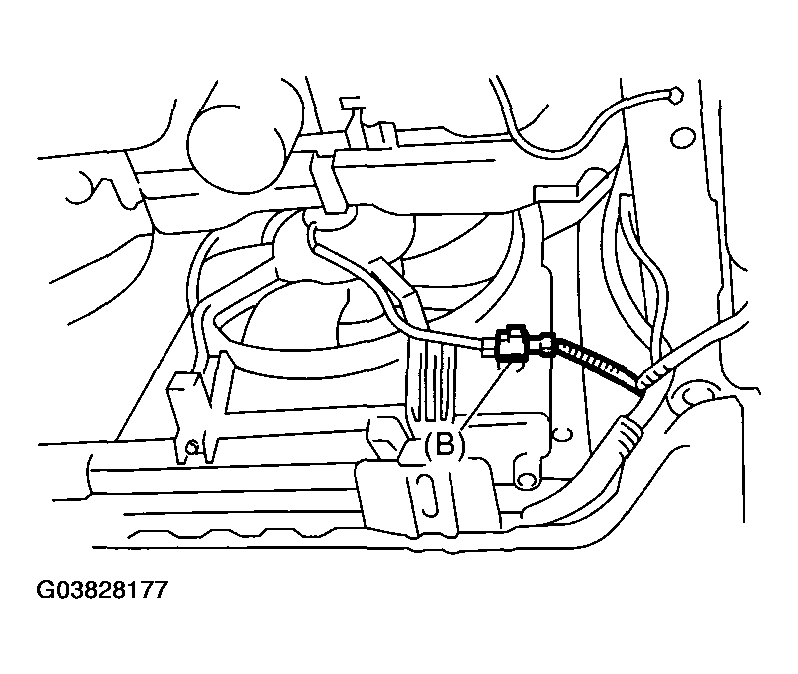

Fig 3: Disconnecting Connector Of Radiator Main Fan Motor And Connector Of Sub Fan Motor (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from thermostat cover.

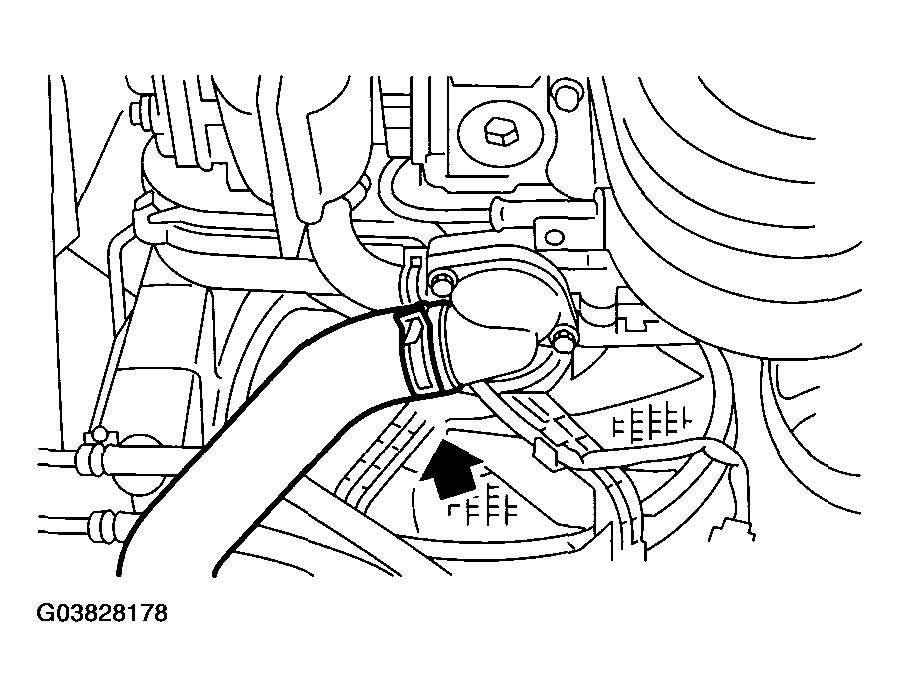

Fig 4: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ATF cooler hoses from ATF pipes. (AT model) Plug the ATF pipe to prevent ATF leaks.

Fig 5: Disconnecting ATF Cooler Hoses From ATF Pipes
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Disconnect the over flow hose.
Remove the reservoir tank. < Ref. to , REMOVAL , Reservoir Tank. >
Remove the hood stay holder.

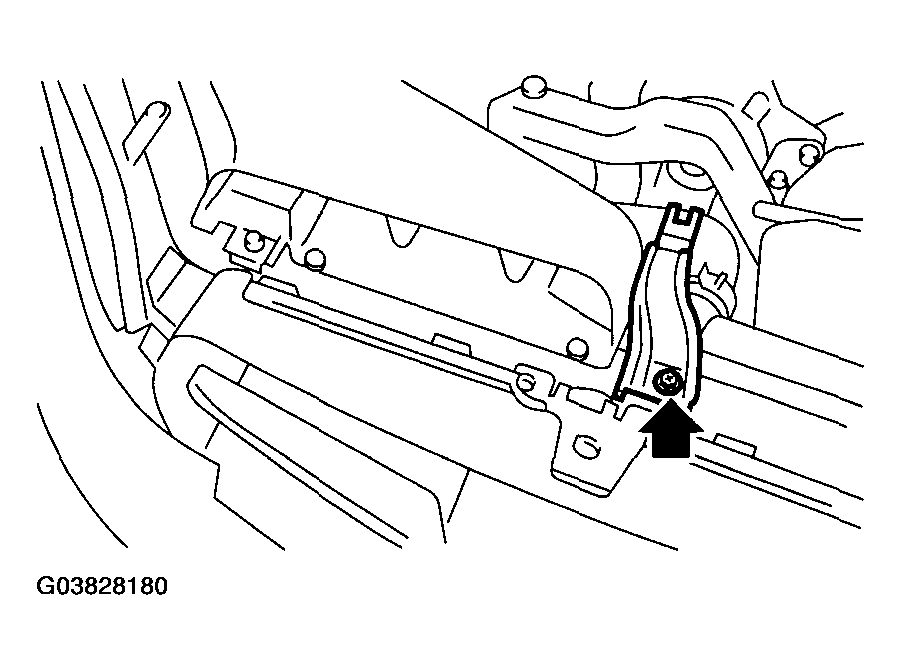

Fig 6: Removing Hood Stay Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >

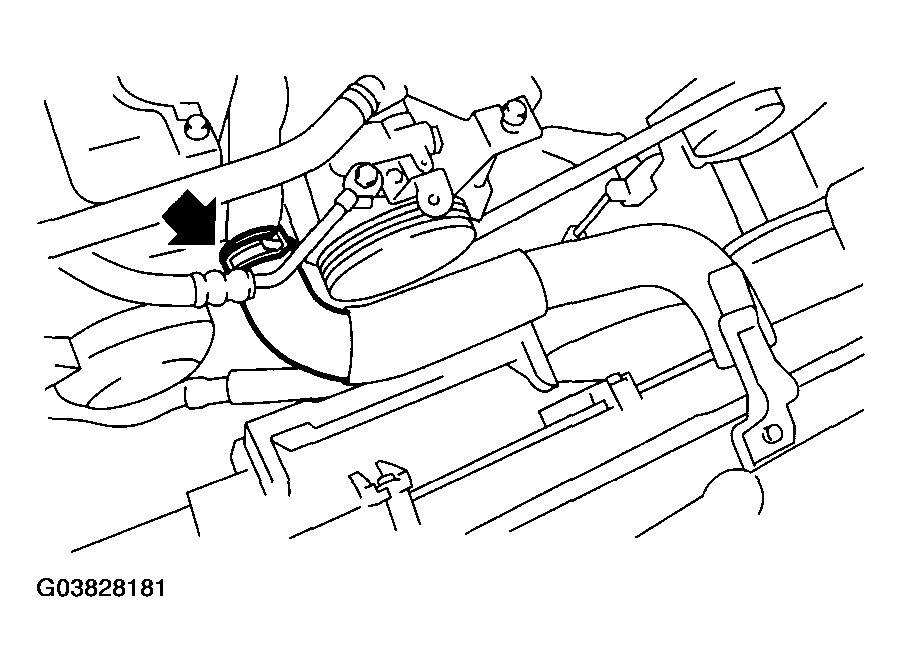

Disconnect the radiator inlet hose from engine.

Fig 7: Disconnecting Radiator Inlet Hose From Engine
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

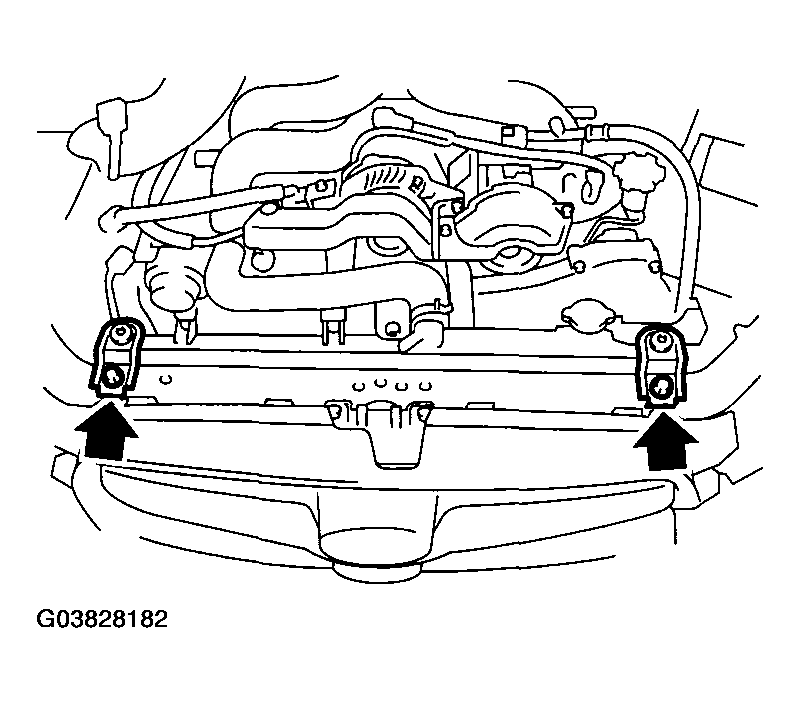

Fig 8: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Lift the radiator up and away from vehicle.
