Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the over flow hose.
  2. Pull out the reservoir tank to the direction of arrow while pushing the pawl (A).

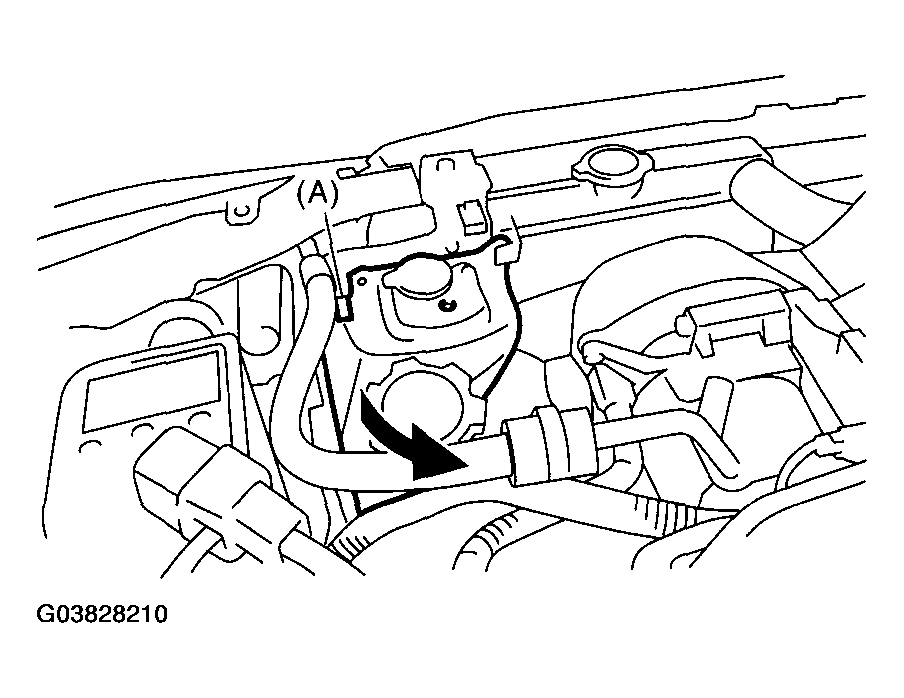

    Fig 1: Disconnecting Over Flow Hose
    G03828210Courtesy of SUBARU OF AMERICA, INC.
