Air Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clips which install the air intake duct on the front side of body.
  2. Remove the air intake duct.

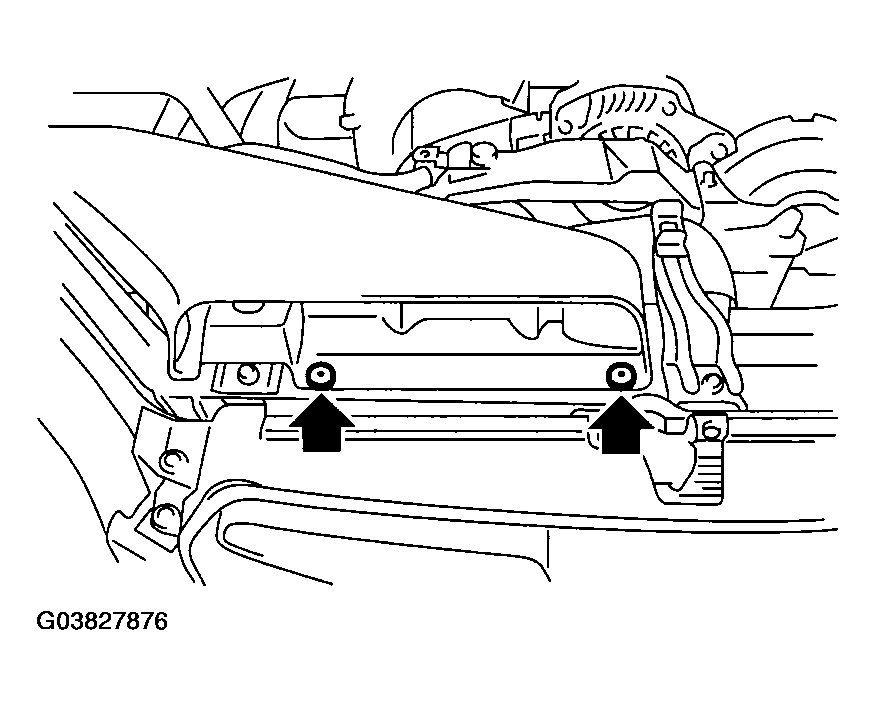

    Fig 1: Removing Air Intake Duct
    G03827876Courtesy of SUBARU OF AMERICA, INC.
