Pitching Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the air intake chamber. (Non-turbo model) < Ref. to REMOVAL , Air Intake Chamber. >
  3. Remove the air cleaner case. (Non-turbo model) < Ref. to REMOVAL , Air Cleaner Case. >
  4. Remove the intercooler. (Turbo model) < Ref. to REMOVAL , Intercooler. >
  5. Remove the pitching stopper.

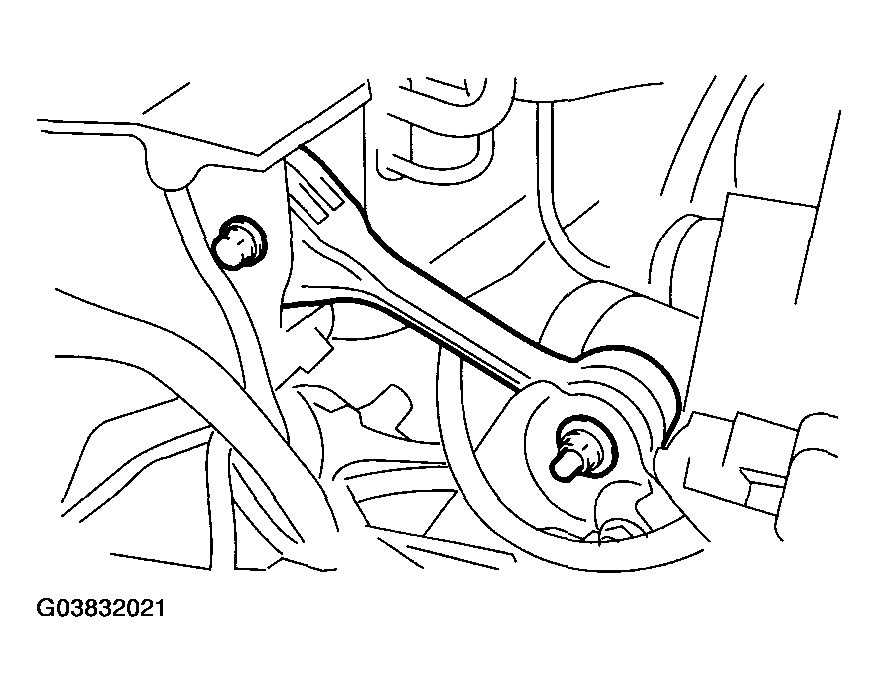

Fig 1: Removing Pitching Stopper
G03832021Courtesy of SUBARU OF AMERICA, INC.
