Section 16 (Intake (Induction) (H4DOTC)): Intercooler: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Loosen the clamp, and then remove the air bypass pipe (A) from air by-pass valve.
Loosen the clamp, and then remove the intake duct (B) from intercooler.

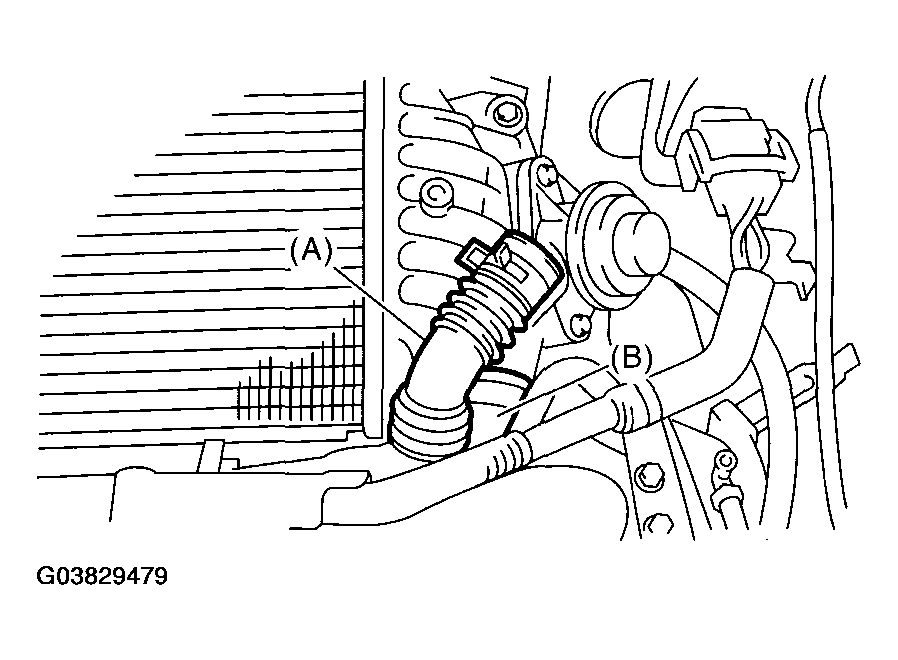

Fig 1: Loosening Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure intake duct to turbocharger.
Remove the bolts which secure intercooler to bracket, and then remove the intercooler.

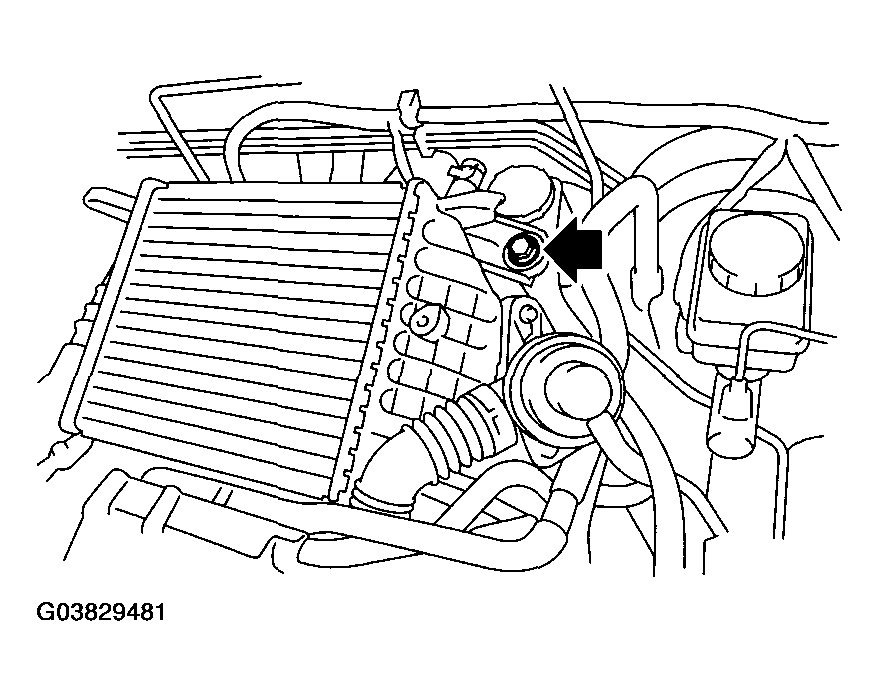

Fig 2: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.

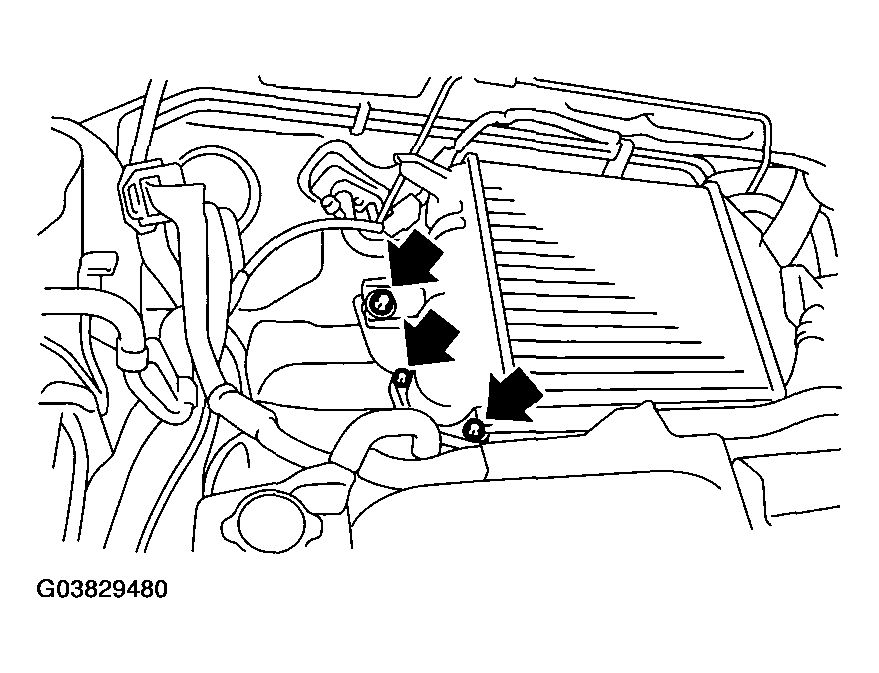

Fig 3: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
