Air Cleaner Case: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. < Ref. to , REMOVAL . >
Disconnect the connector from mass air flow and intake air temperature sensor.

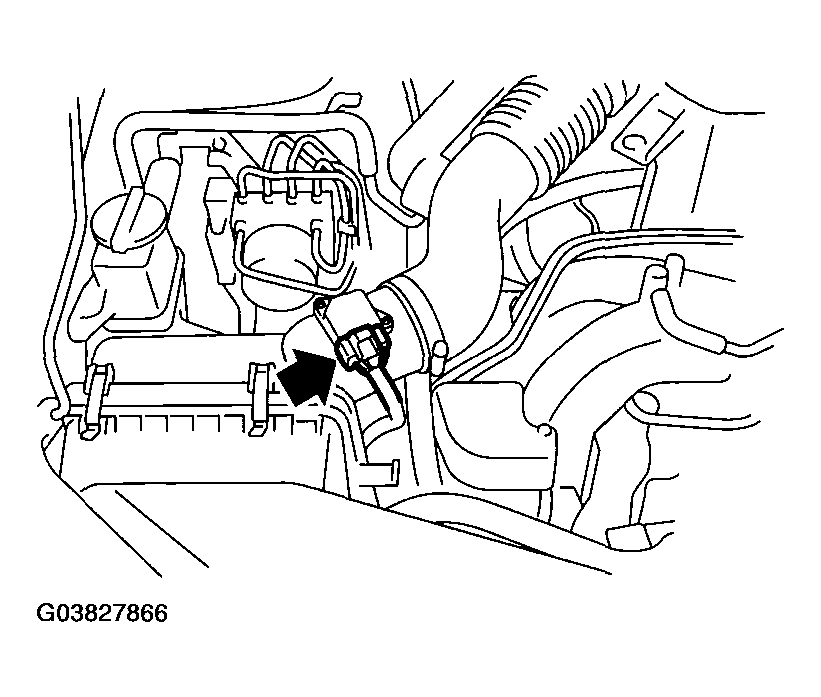

Fig 2: Disconnecting Mass Air Flow And Intake Air Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air cleaner case to intake duct.
Remove the clip (B) from upper side of air cleaner case.

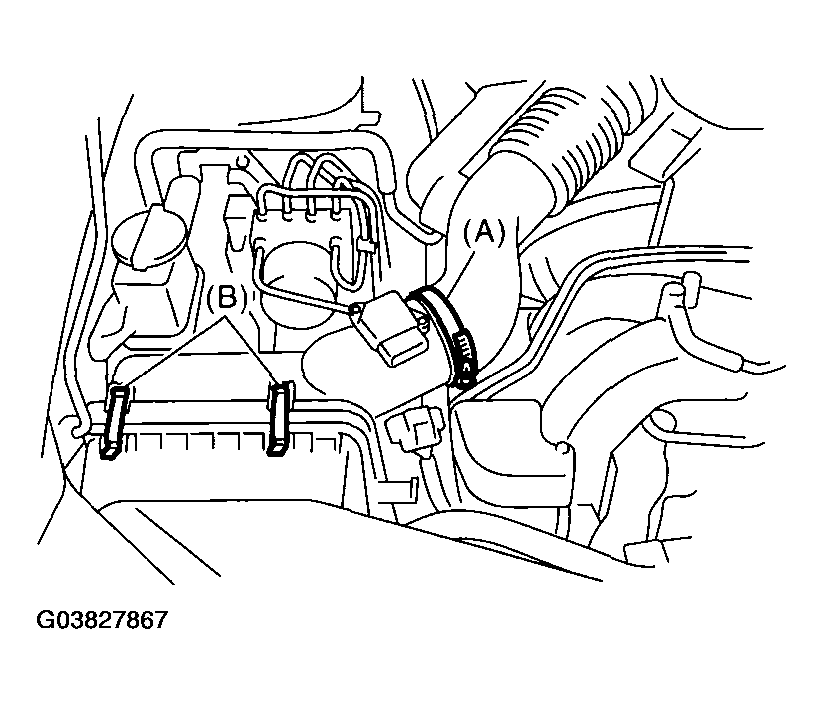

Fig 3: Removing Clip From Upper Side Of Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (rear) and air cleaner element.

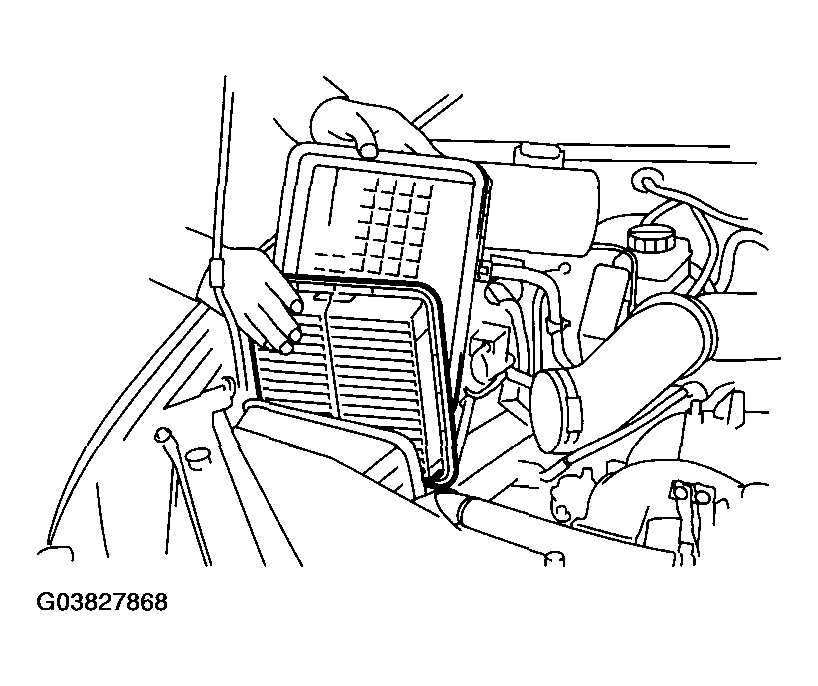

Fig 4: Removing Air Cleaner Case (Rear) And Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt (A) and nut (B) which hold the air cleaner case on body.

Fig 5: Removing Bolt And Nut Which Hold Air Cleaner Case On Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (front).
