Transfer Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to , REMOVAL , Manual Transmission Assembly. >
  2. Remove the back-up light switch and neutral position switch. < Ref. to , REMOVAL , Switches and Harness. >
  3. Remove the transfer case with extension case assembly. < Ref. to , REMOVAL , Transfer Case and Extension Case Assembly. >
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear.

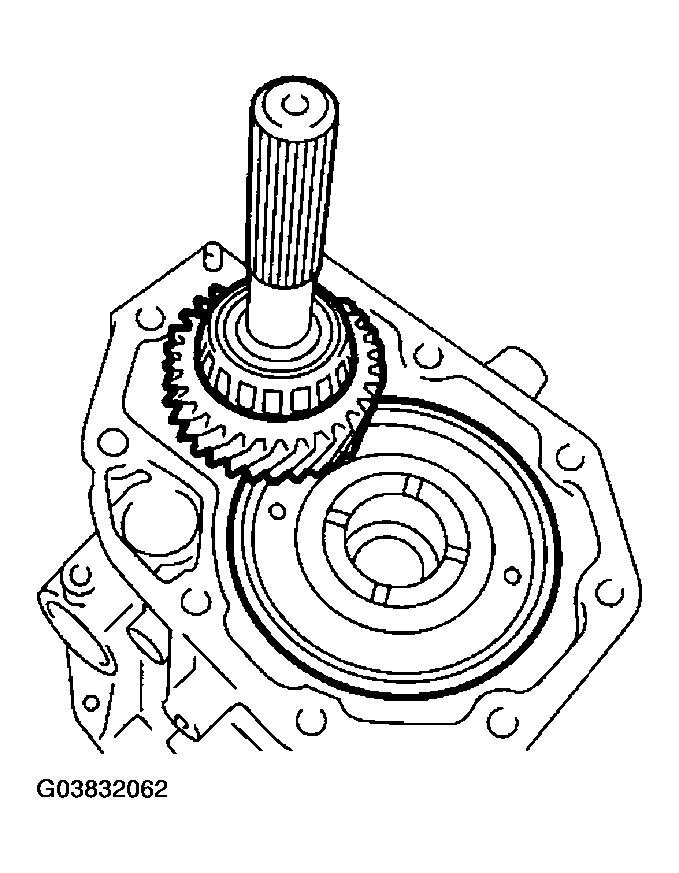

    Fig 1: Removing Transfer Driven Gear
    G03832062Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bearing outer races from the extension case and transfer case.

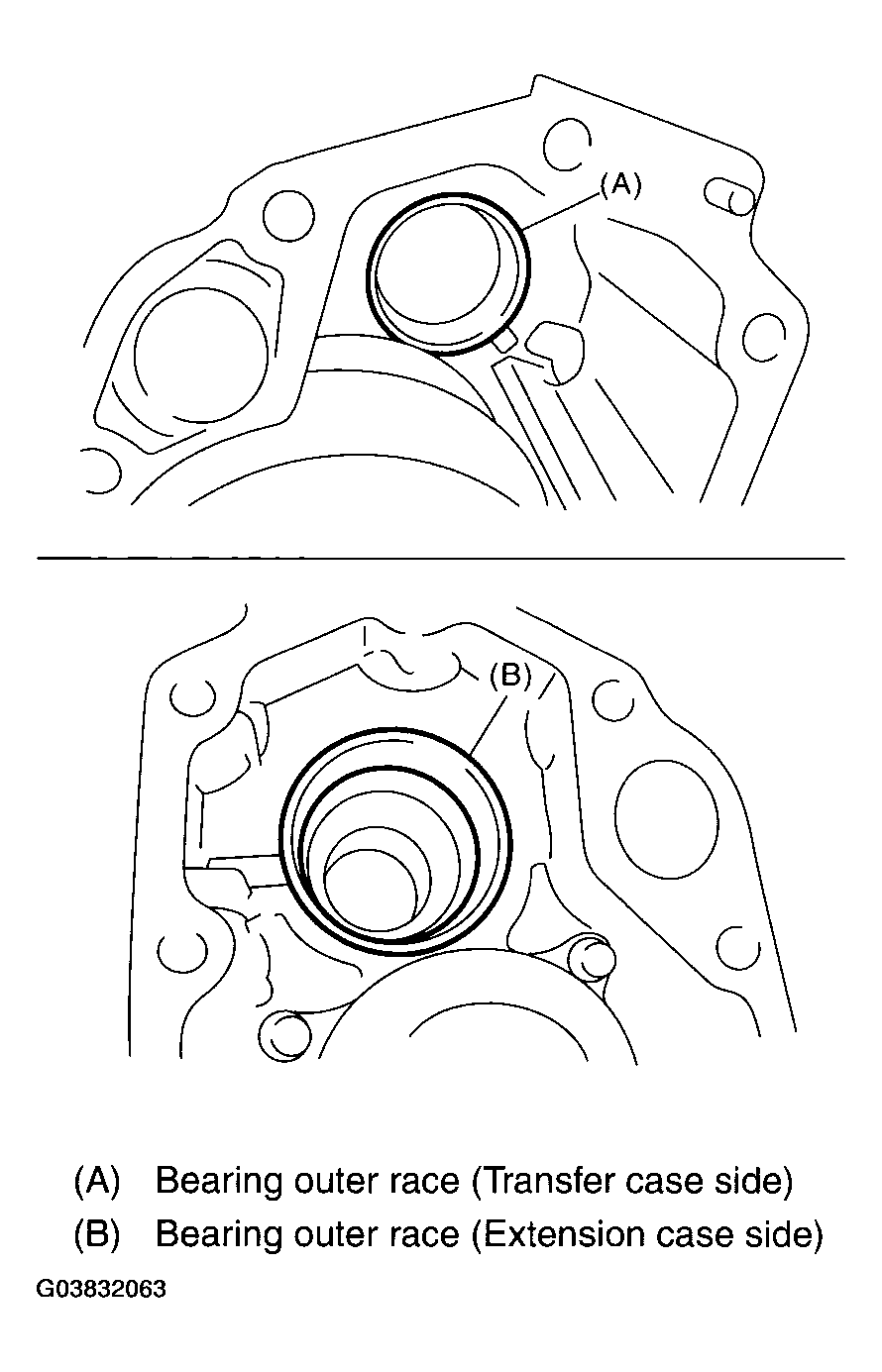

    Fig 2: Removing Bearing Outer Races From Extension Case And Transfer Case
    G03832063Courtesy of SUBARU OF AMERICA, INC.
