Transfer Drive Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to , REMOVAL , Manual Transmission Assembly. >
  2. Remove the back-up light switch and neutral position switch. < Ref. to , REMOVAL , Switches and Harness. >
  3. Remove the transfer case with extension case assembly. < Ref. to , REMOVAL , Transfer Case and Extension Case Assembly. >
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear.
  6. Remove the transfer drive gear.

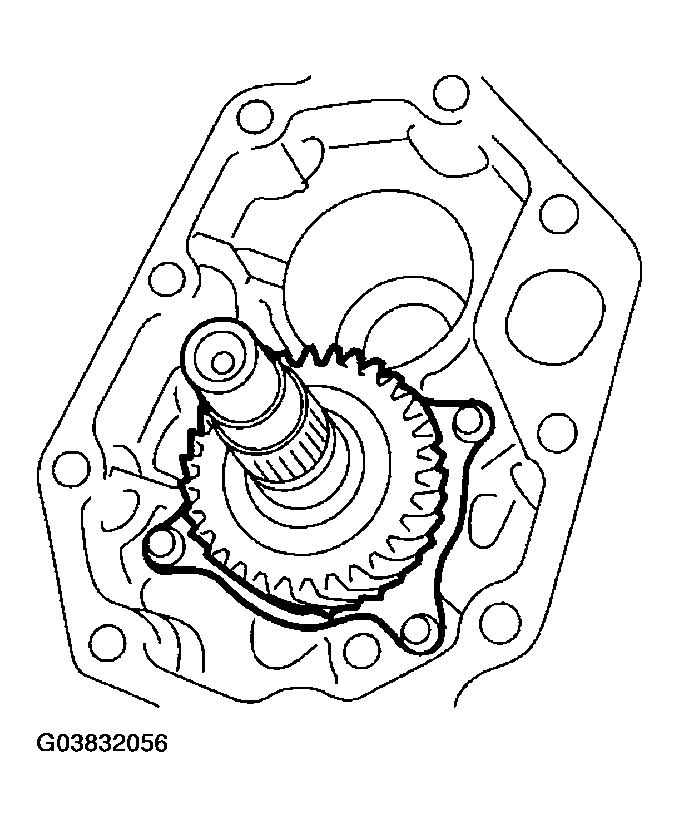

Fig 1: Removing Transfer Drive Gear
G03832056Courtesy of SUBARU OF AMERICA, INC.
