Back-Up Light Switch And Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the air intake chamber and cleaner case. (Non-turbo model) < Ref. to REMOVAL , Air Cleaner Case.> < Ref. to REMOVAL , Air Intake Chamber. >
Remove the intercooler. (Turbo model) < Ref. to REMOVAL , Intercooler. >
Disconnect the connectors of back-up light switch and neutral position switch.
- Non-turbo model

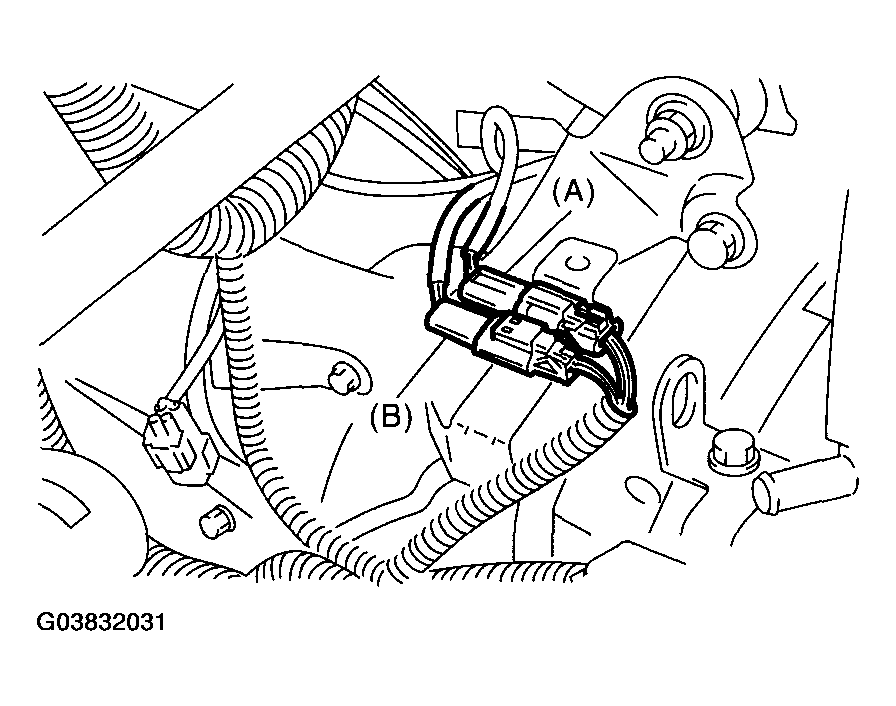

  Fig 1: Disconnecting Connectors Of Back-Up Light Switch - Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model
Fig 2: Disconnecting Connectors Of Back-Up Light Switch - Turbo Model
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the back-up light switch and neutral position switch with harness.

Fig 3: Removing Back-Up Light Switch And Neutral Position Switch With Harness

Courtesy of SUBARU OF AMERICA, INC.
