Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

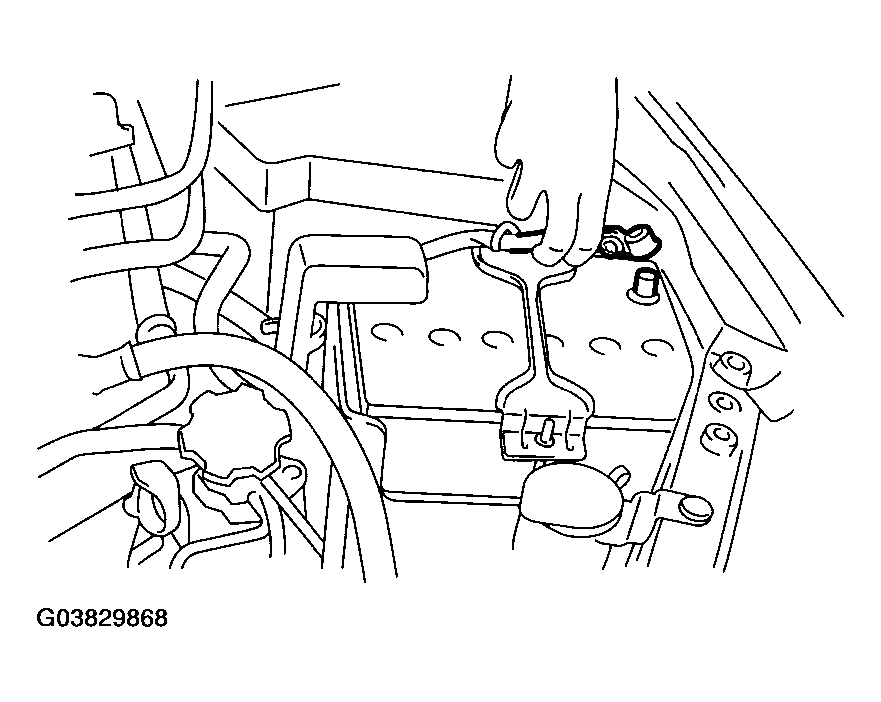

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Remove the bolts which install water pipe of oil cooler to oil pump.

Fig 2: Removing Oil Cooler Water Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the water pipe and hoses between oil cooler and water pump. (MT model)

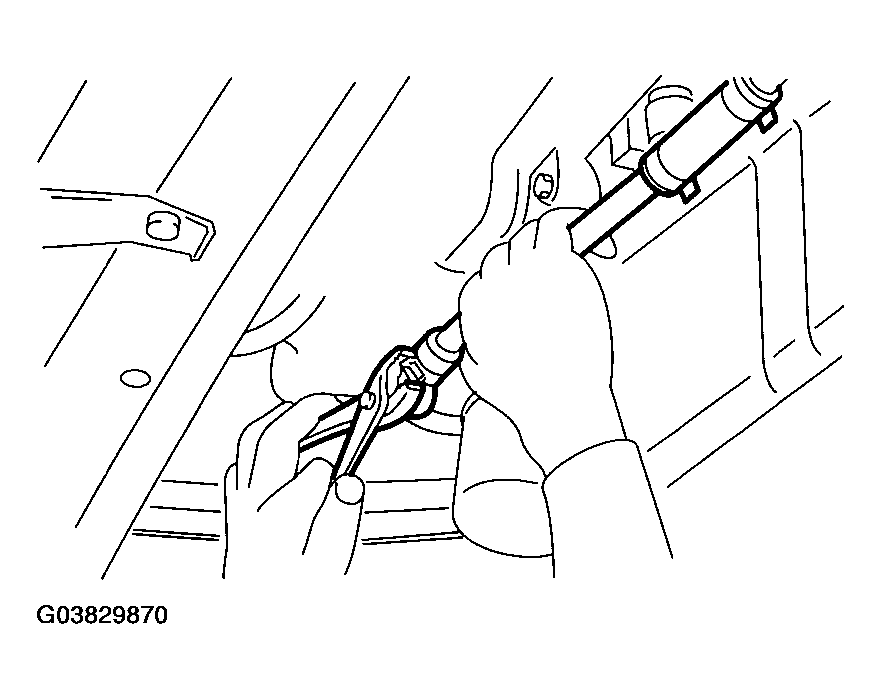

Fig 3: Removing Water Pipe And Hoses Between Oil Cooler And Water Pump (MT Model)
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the radiator. < Ref. to REMOVAL , Radiator. >
Remove the V-belts. < Ref. to REMOVAL , V-belt. >
Remove the rear side V-belt tensioner.

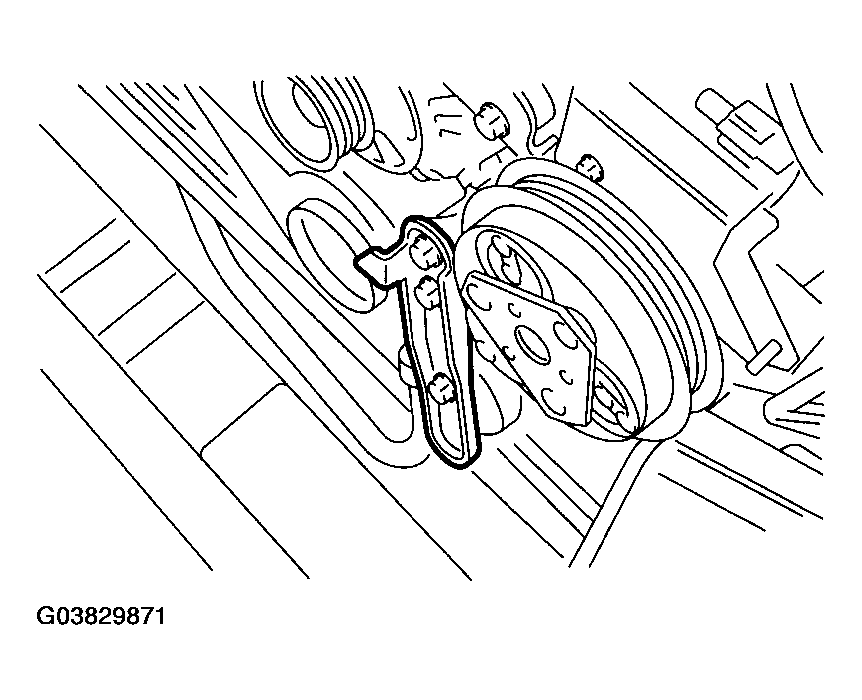

Fig 4: Removing Rear Side V-Belt Tensioner
Courtesy of SUBARU OF AMERICA, INC.
Remove the crankshaft position sensor.

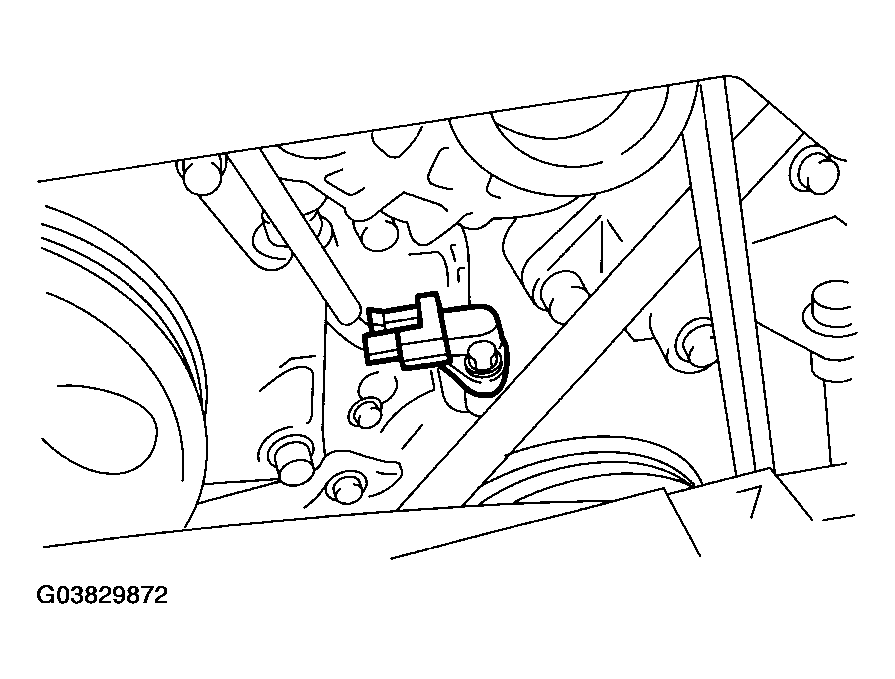

Fig 5: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the crank pulley by using ST. < Ref. to REMOVAL , Crank Pulley. >

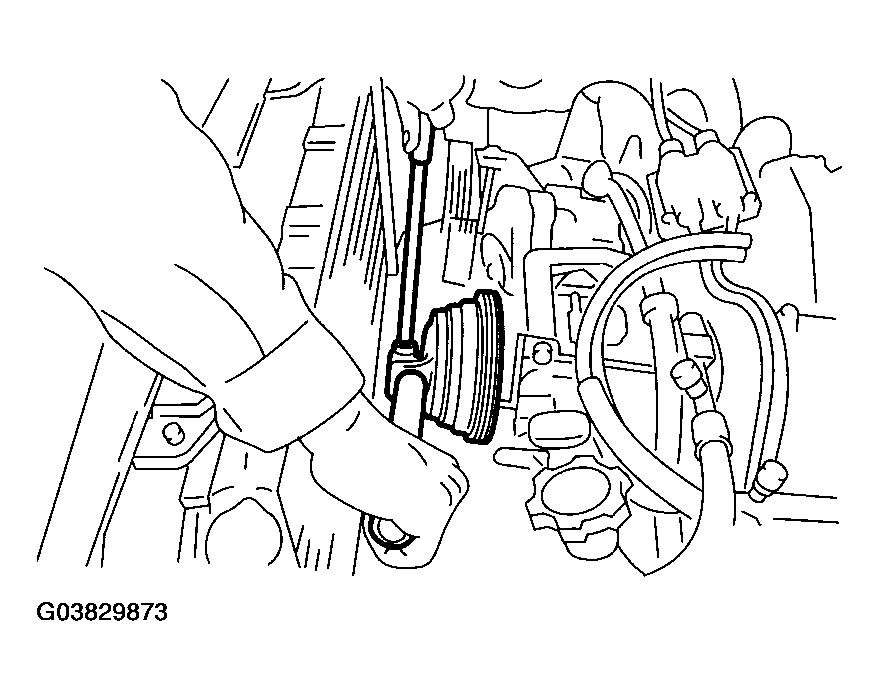

Fig 6: Removing Crank Pulley Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the water pump. < Ref. to REMOVAL , Water Pump. >
Remove the timing belt guide.

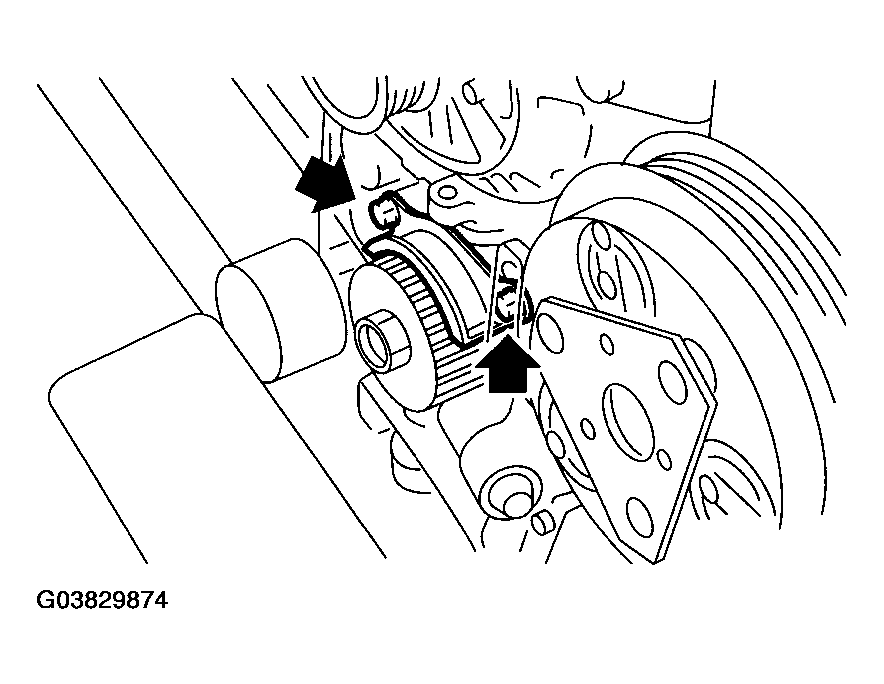

Fig 7: Removing Timing Belt Guide
Courtesy of SUBARU OF AMERICA, INC.

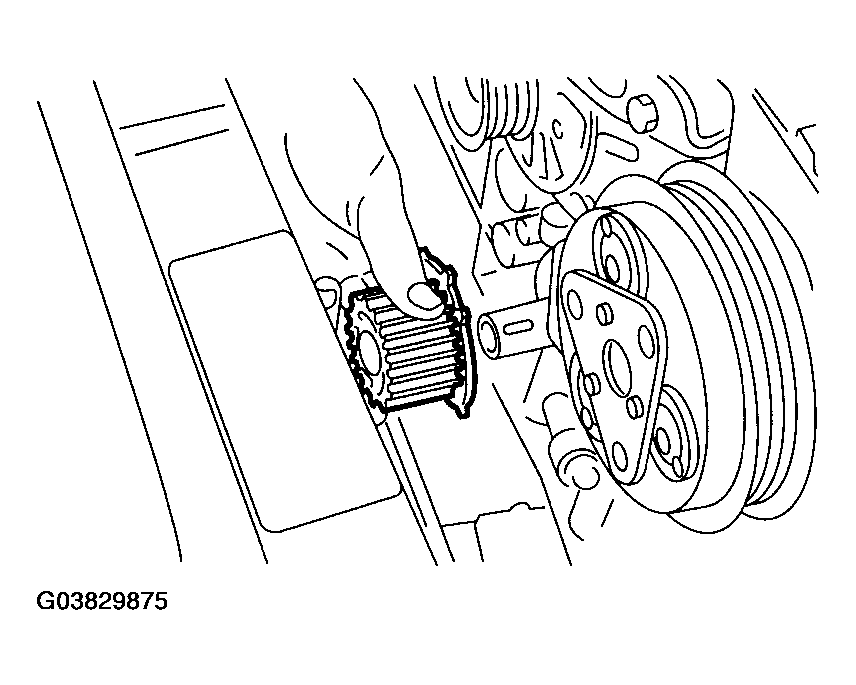

Remove the crank sprocket.

Fig 8: Removing Crank Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold oil pump onto cylinder block.
NOTE: When disassembling and checking the oil pump, loosen the relief valve plug before removing oil pump.

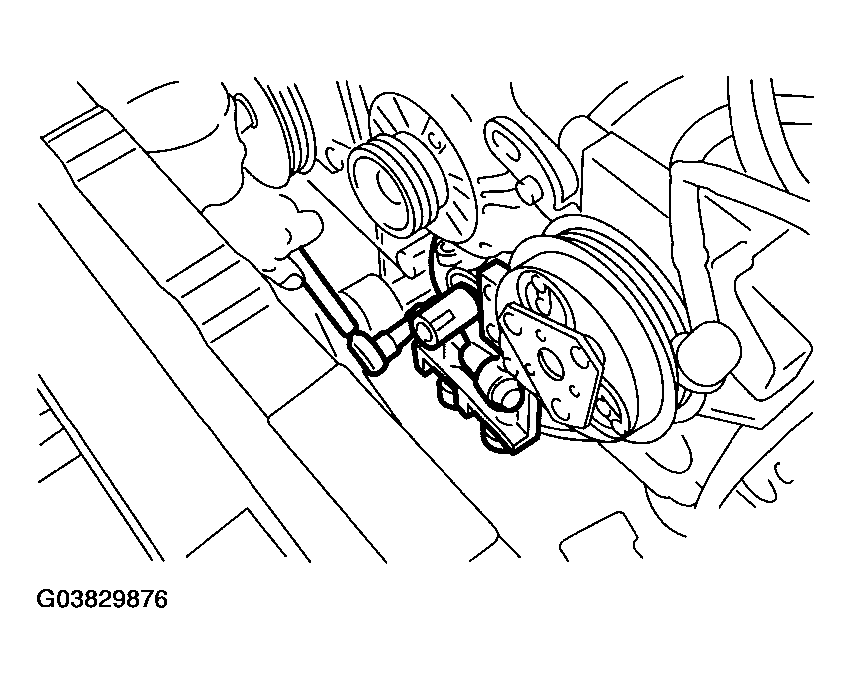

Fig 9: Removing Oil Pump Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pump by using flat bladed screwdriver.
CAUTION: Be careful not to scratch mating surfaces of cylinder block and oil pump.

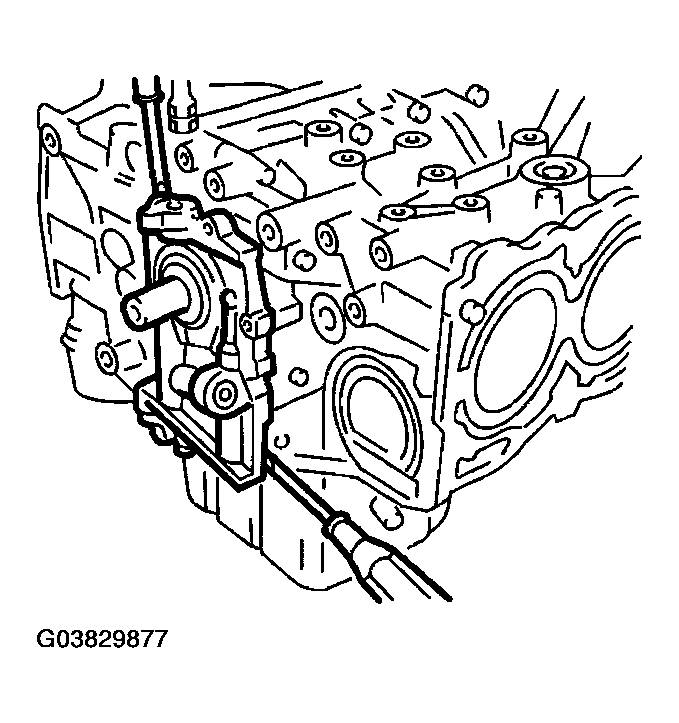

Fig 10: Removing Oil Pump Using Flat Bladed Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
