Water Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Remove the radiator. < Ref. to , REMOVAL , Radiator. >
  3. Remove the V-belts. < Ref. to REMOVAL , V-belt. >
  4. Remove the timing belt. < Ref. to REMOVAL , Timing Belt. >
  5. Remove the automatic belt tension adjuster (A).
  6. Remove the belt idler (B).
  7. Remove the belt idler No. 2 (C).

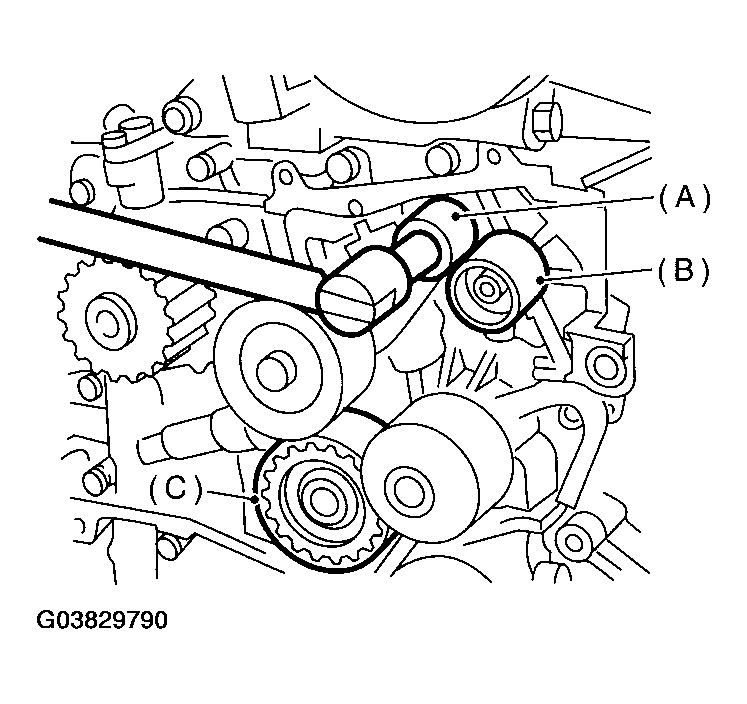

    Fig 1: Removing Automatic Belt Tension Adjuster And Belt Idler
    G03829790Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the camshaft position sensor. < Ref. to REMOVAL , Camshaft Position Sensor. >
  9. Remove the cam sprocket (LH) using ST. < Ref. to REMOVAL , Cam Sprocket. >
  10. Remove the tensioner bracket.

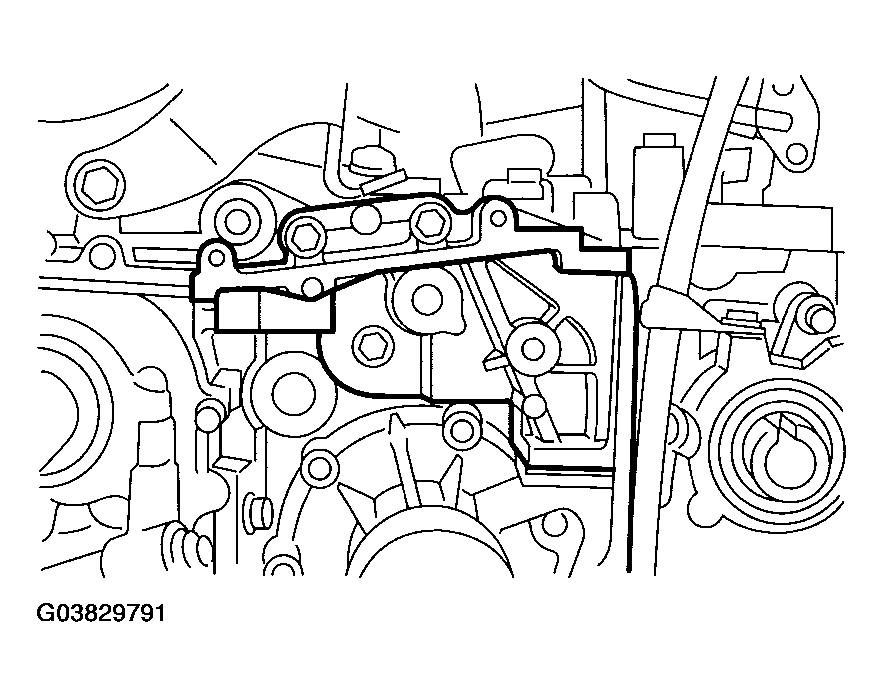

    Fig 2: Removing Tensioner Bracket
    G03829791Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the belt cover No. 2 (LH).

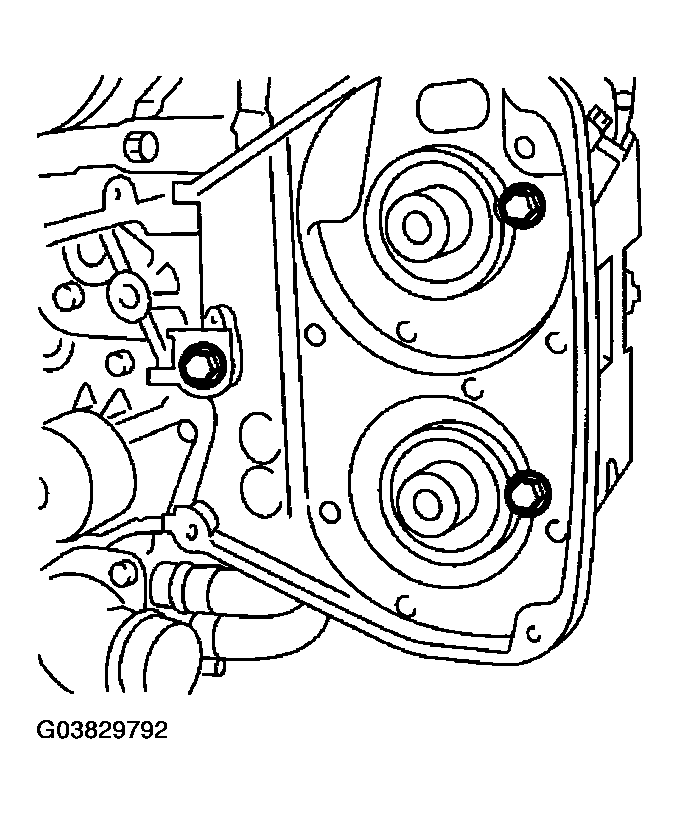

    Fig 3: Removing Belt Cover No.2 (LH)
    G03829792Courtesy of SUBARU OF AMERICA, INC.
  12. Disconnect the hose from water pump.
  13. Remove the water pump.

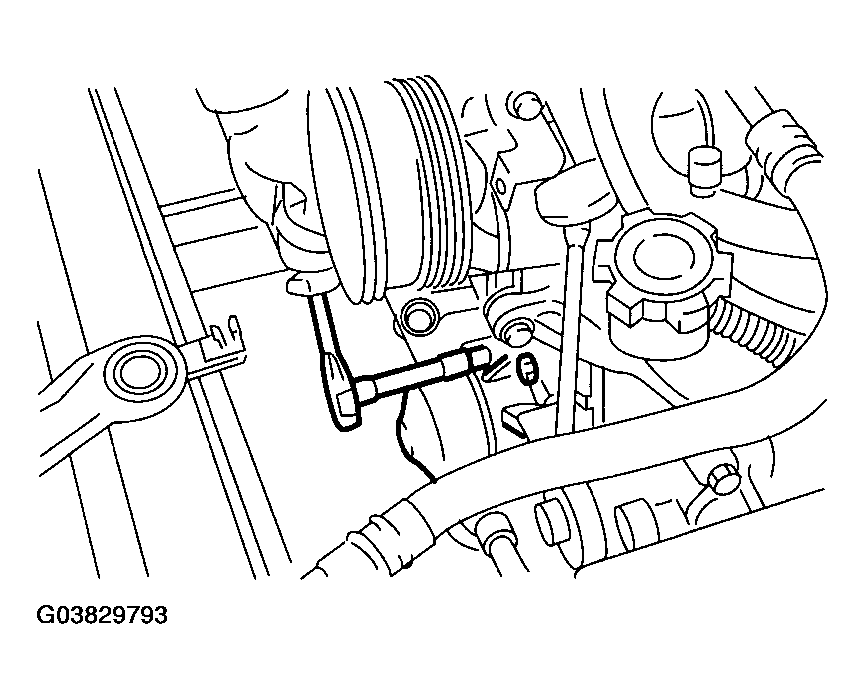

    Fig 4: Removing Water Pump
    G03829793Courtesy of SUBARU OF AMERICA, INC.
