Oil Pan and Strainer: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Remove the front wheels.
Remove the collector cover.
Disconnect the ground cable from battery.

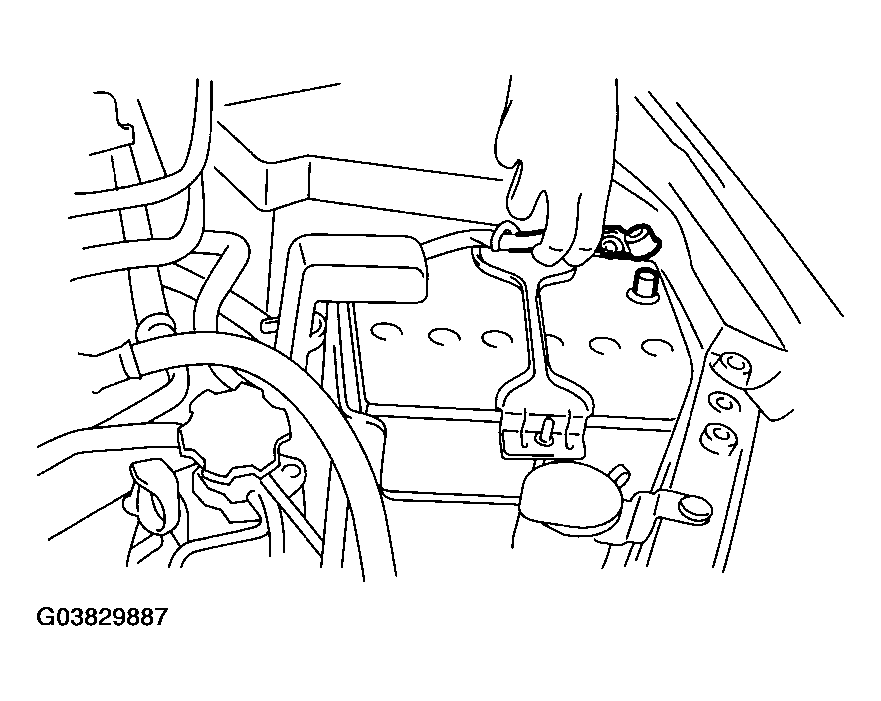

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from mass airflow sensor.
Remove the air intake boot and air cleaner upper cover.

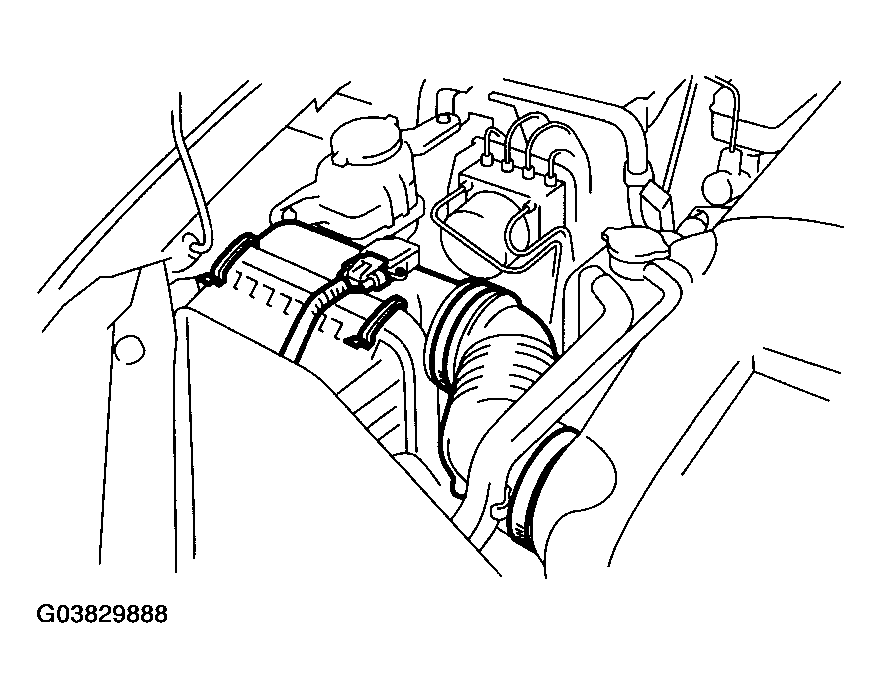

Fig 2: Removing Air Intake Boot And Air Cleaner Upper Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler.
< Ref. to REMOVAL , Intercooler. >
Remove the pitching stopper.

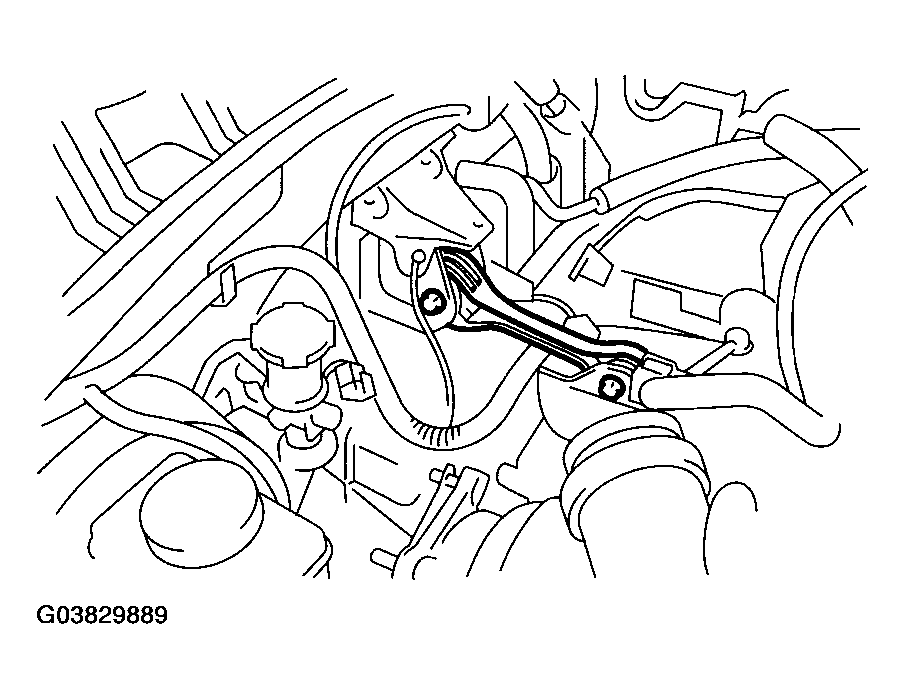

Fig 3: Removing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

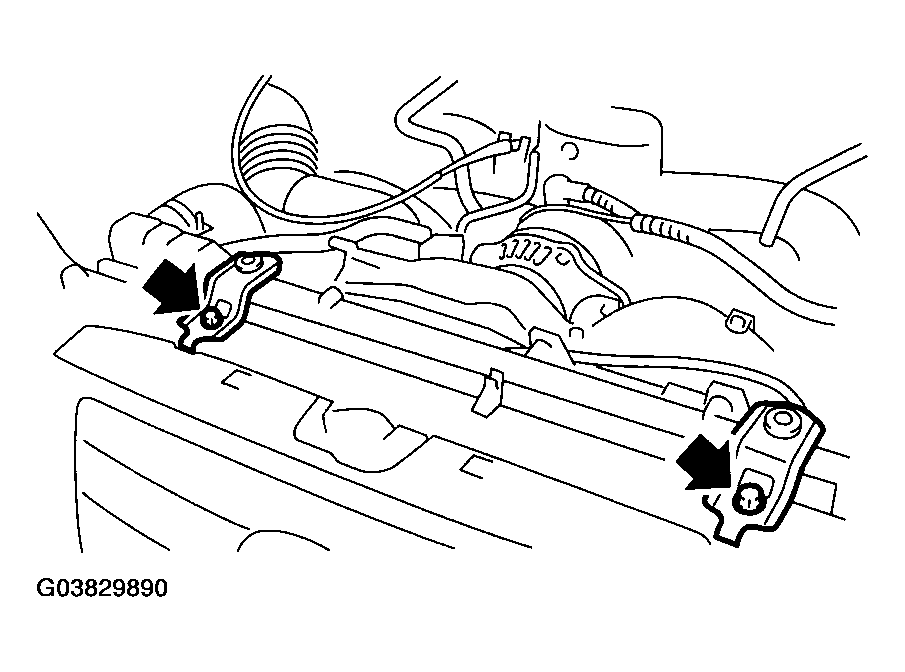

Fig 4: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Support the engine with a lifting device and wire ropes.

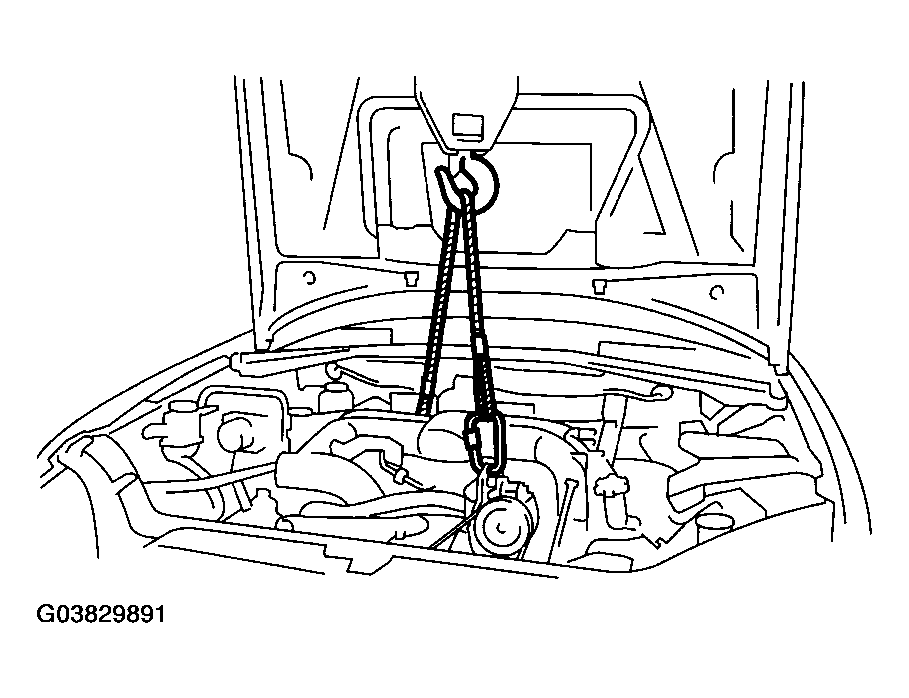

Fig 5: Supporting Engine Using Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
CAUTION: When lifting up the vehicle, raise up wire ropes at the same time.
Remove the under cover.
Drain engine oil.
Remove the front exhaust pipe.
< Ref. to REMOVAL , Front Exhaust Pipe. >
Remove the nuts which install front cushion rubber onto front crossmember.

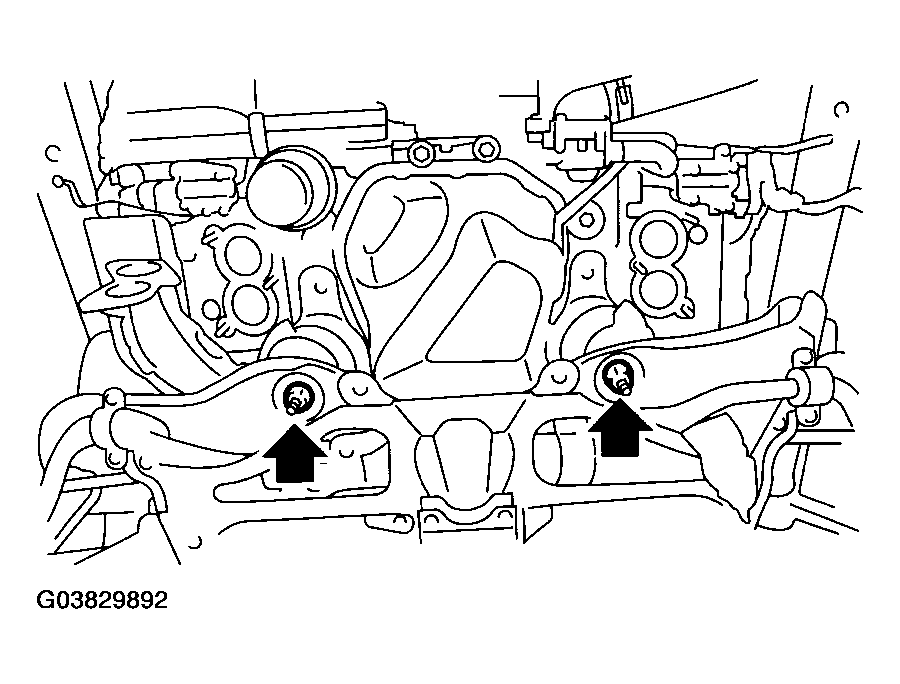

Fig 6: Removing Front Cushion Rubber Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install oil pan on cylinder block with the engine raised up.
Insert the oil pan cutter blade into the clearance between cylinder block and oil pan.
CAUTION: Do not use a screwdriver or similar tool in place of oil pan cutter.
Remove the oil strainer.
Remove the baffle plate.

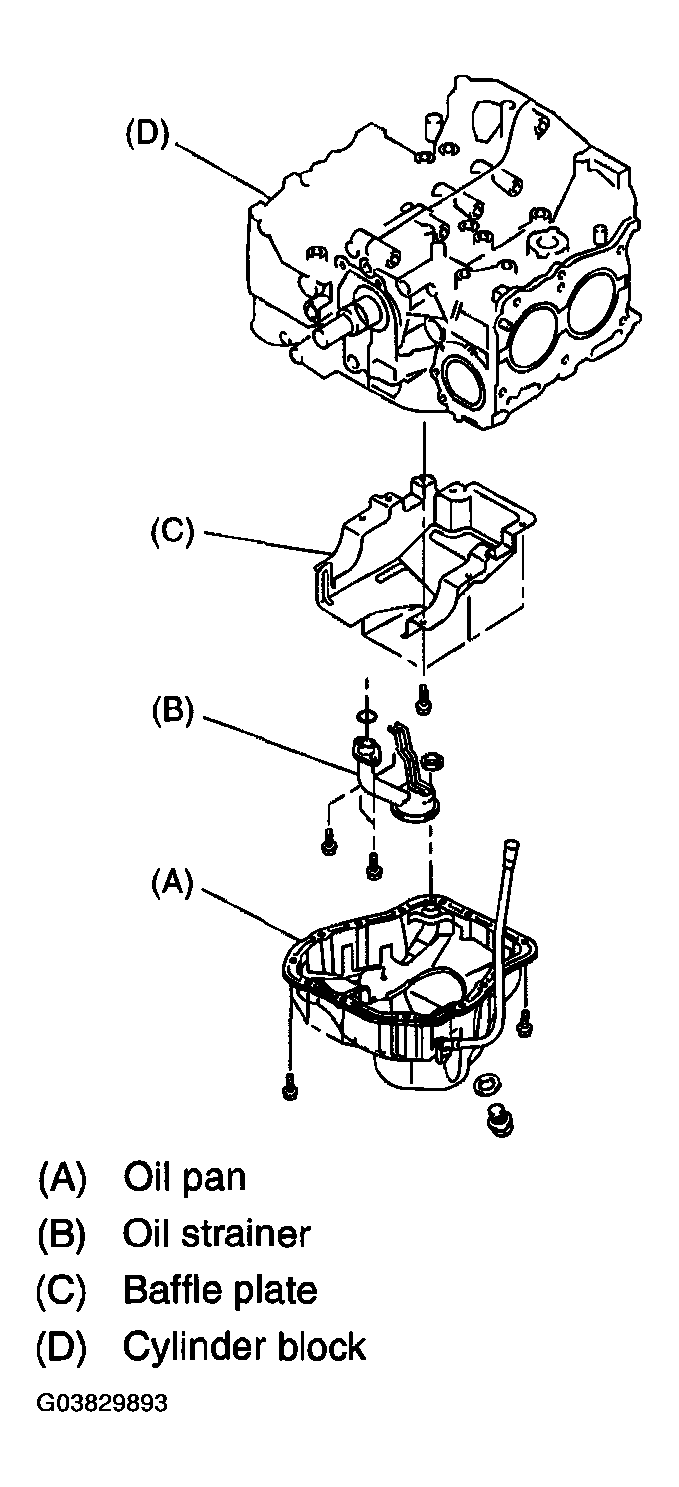

Fig 7: Removing Baffle Plate
Courtesy of SUBARU OF AMERICA, INC.
