Front Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

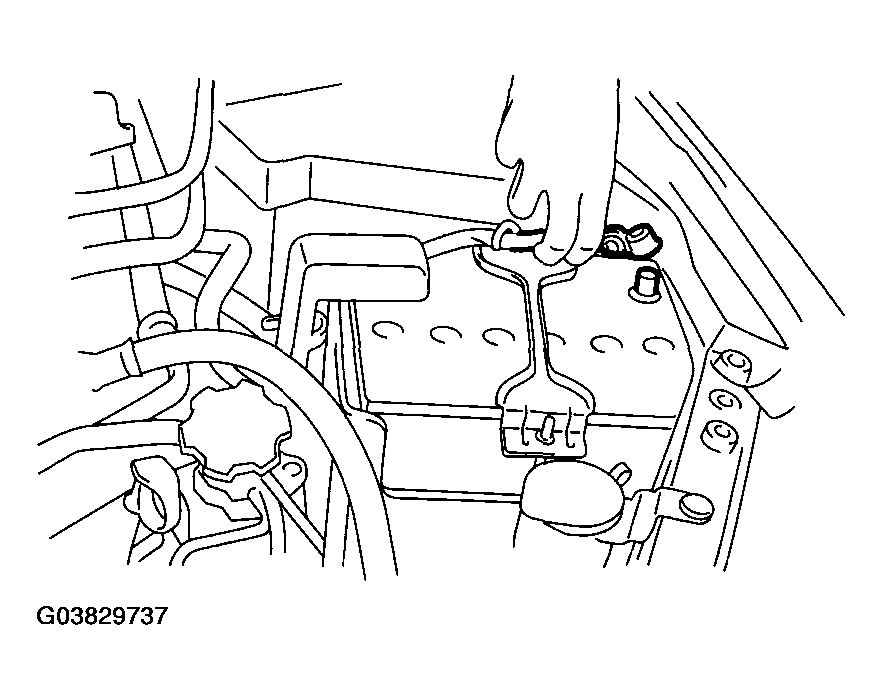

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the front oxygen (A/F) sensor. < Ref. to REMOVAL , Front Oxygen (A/F) Sensor. >
Remove the under cover.
Remove the exhaust manifold lower cover (RH) and the exhaust manifold lower cover (LH).

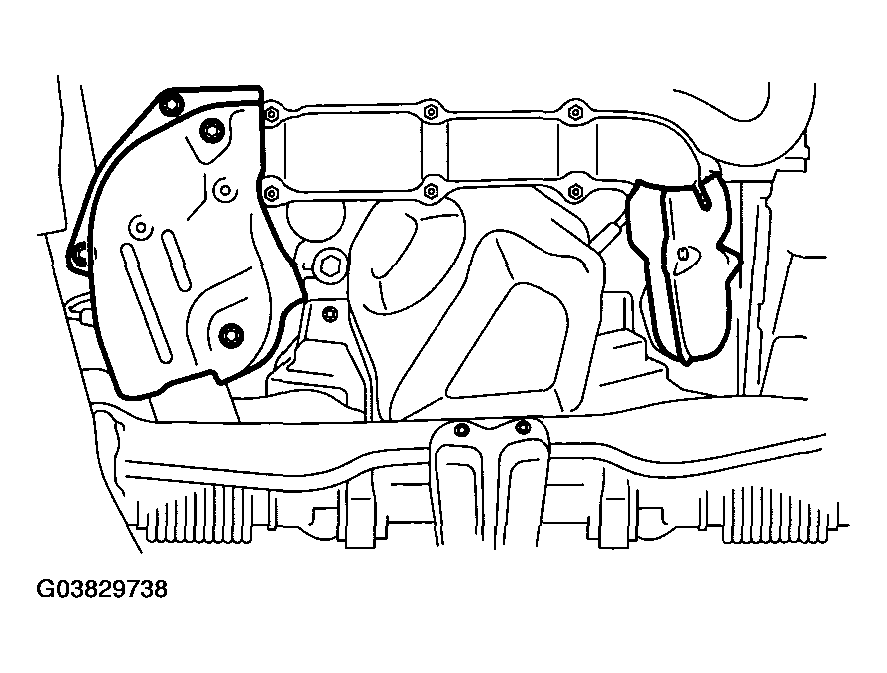

Fig 2: Removing Exhaust Manifold Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which hold front exhaust pipe assembly to turbocharger joint pipe.
While holding the front exhaust pipe assembly with one hand, remove the nuts which hold front exhaust pipe assembly to cylinder head exhaust port.

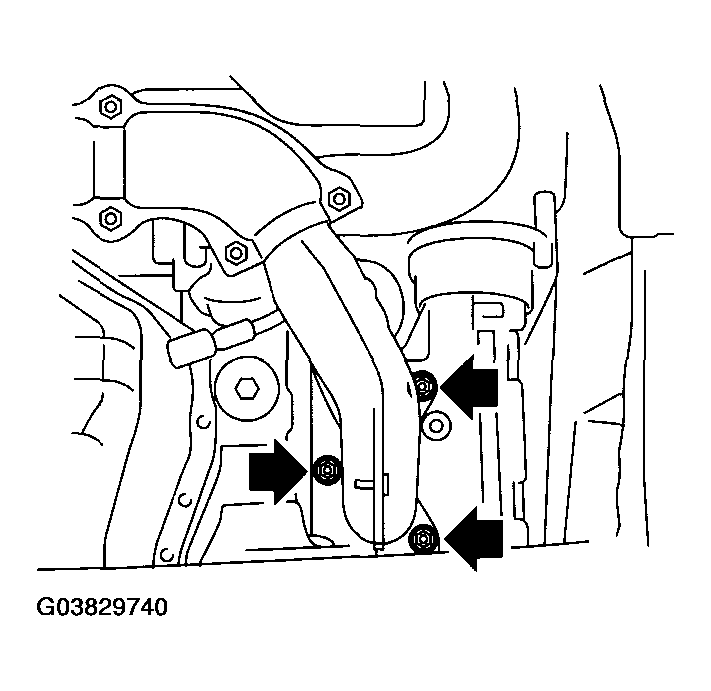

Fig 3: Locating Front Exhaust Pipe Removing Nut (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Locating Front Exhaust Pipe Removing Nut (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove the front exhaust pipe assembly.
Remove the covers from exhaust manifold and front exhaust pipe.
Separate the front exhaust pipe from exhaust manifolds.

Fig 5: Separating Front Exhaust Pipe From Exhaust Manifolds

Courtesy of SUBARU OF AMERICA, INC.
