Radiator Main Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

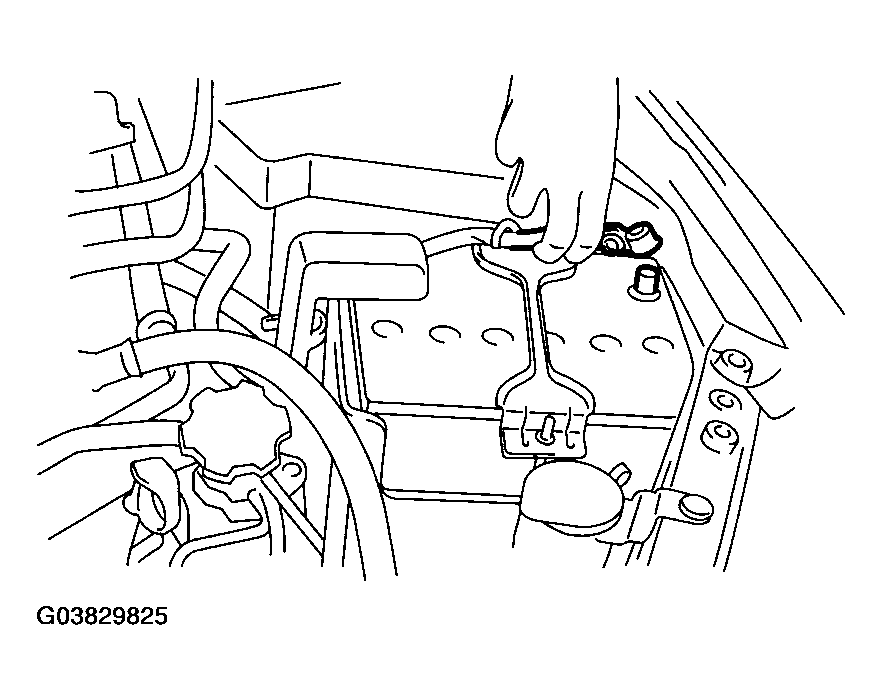

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Disconnect the main fan motor connector (A).

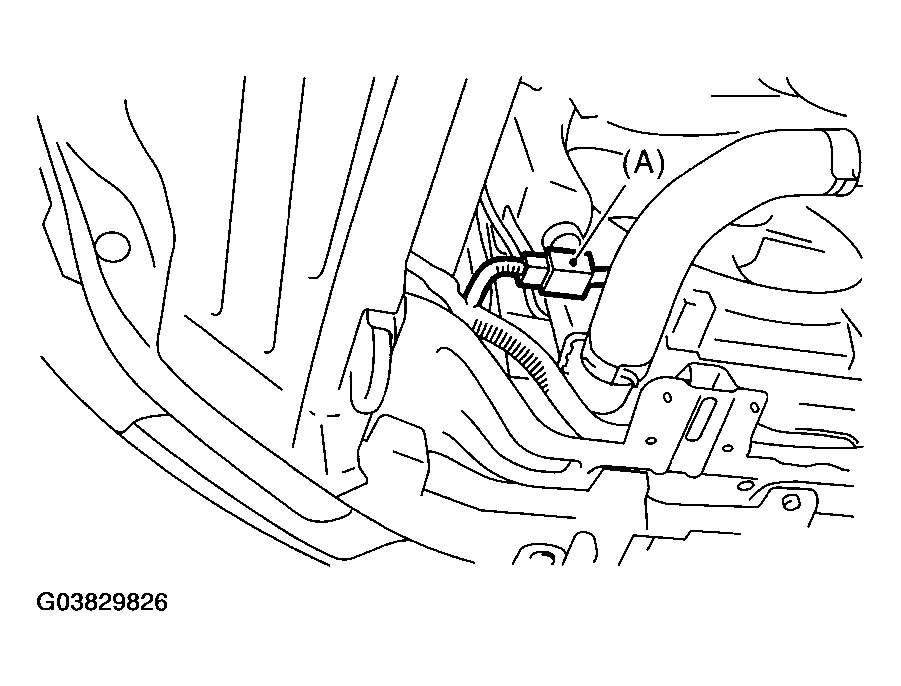

Fig 2: Disconnecting Main Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the heat shield cover from radiator. (AT model)

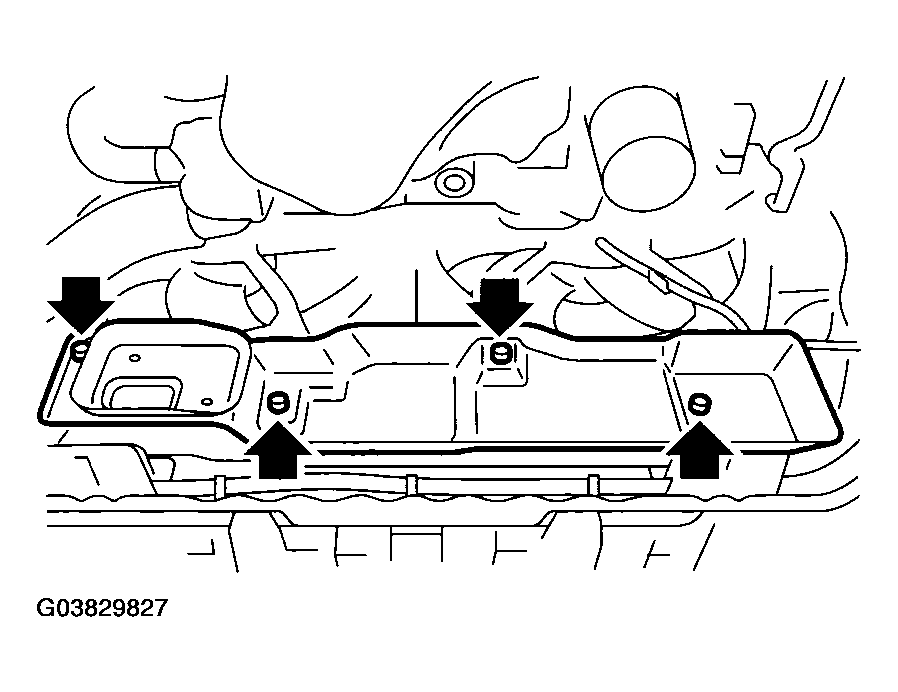

Fig 3: Removing Heat Shield Cover From Radiator (AT Model)
Courtesy of SUBARU OF AMERICA, INC.
Drain the coolant about 1 Lambda (1.06 US qt, 0.88 Imp qt). < Ref. to , DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Remove the ATF hose from the clip of radiator main fan motor assembly. (AT model)

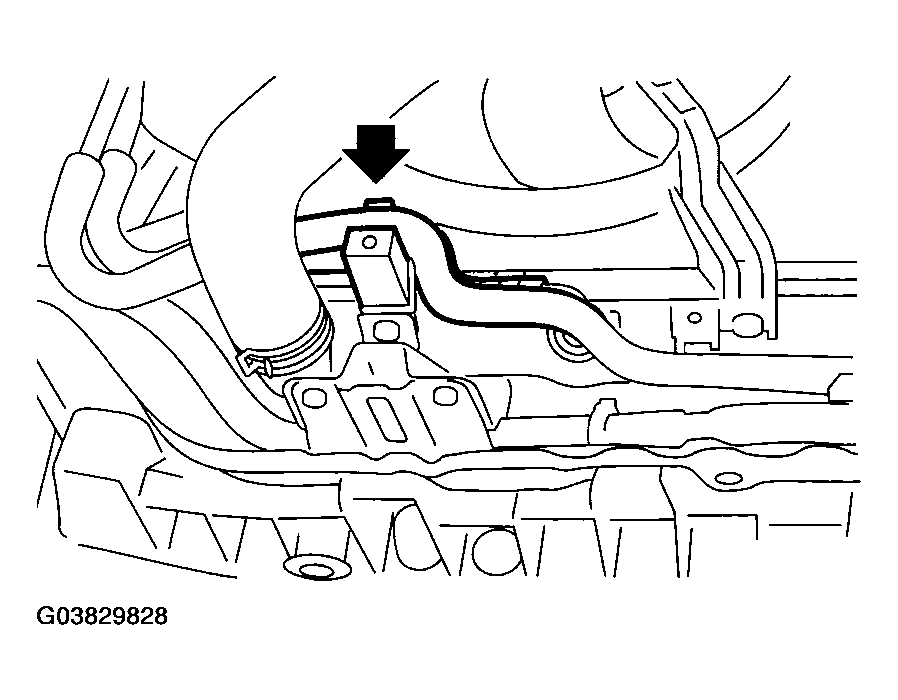

Fig 4: Removing ATF Hose From Clip Of Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the air intake duct.
Disconnect the over flow hose.
Remove the over flow pipe.
Remove the reservoir tank. < Ref. to , REMOVAL , Reservoir Tank. >
Remove the mounting bolts from radiator main fan motor assembly.

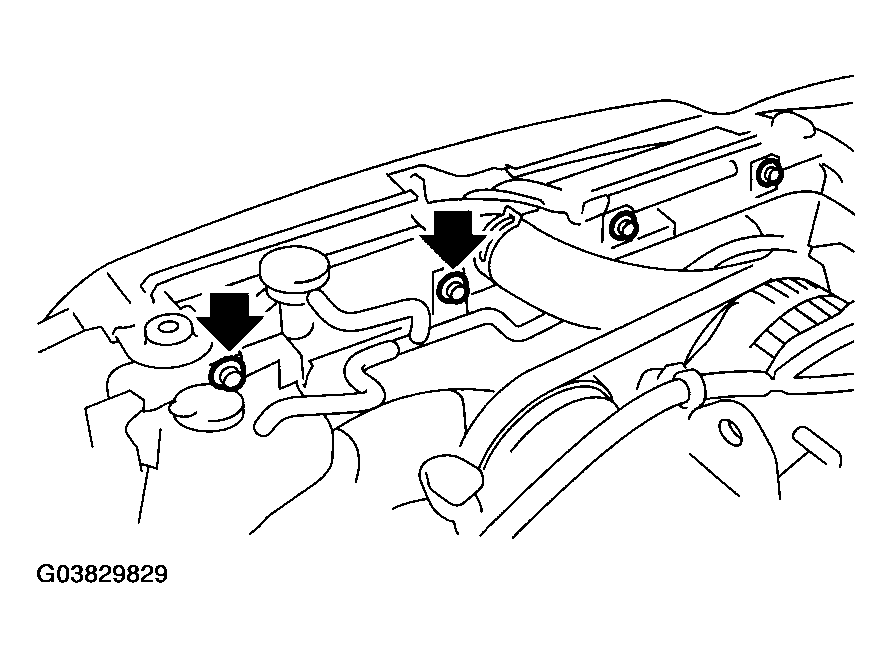

Fig 5: Removing Mounting Bolts From Radiator Main Fan Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator inlet hose (A) from radiator.
Remove the hood stay holder (B).

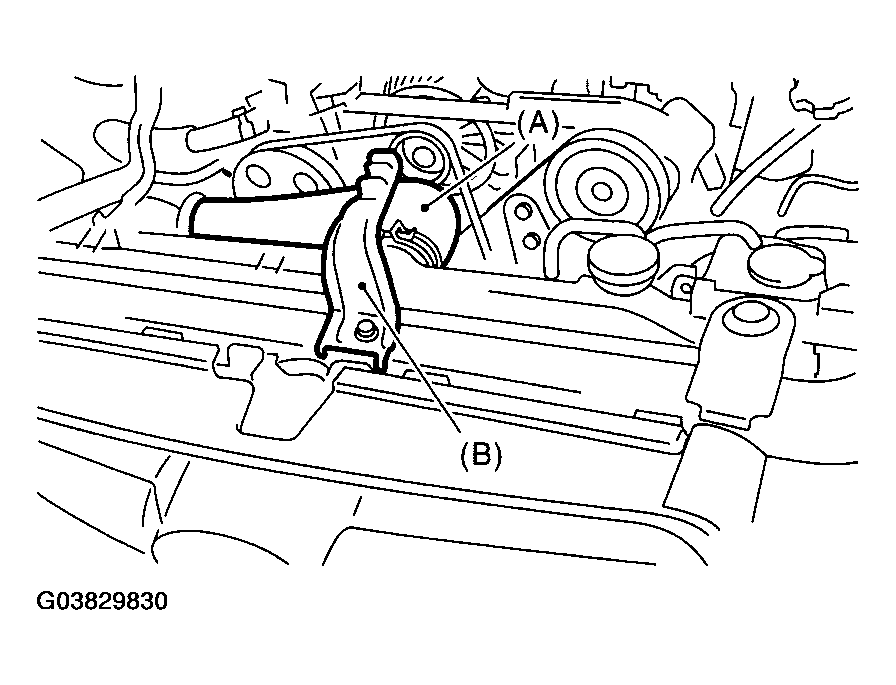

Fig 6: Removing Radiator Inlet Hose And Hood Stay Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator main fan motor assembly from vehicle.
