Reservoir Tank: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Disconnect the over flow hose (A).
  3. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

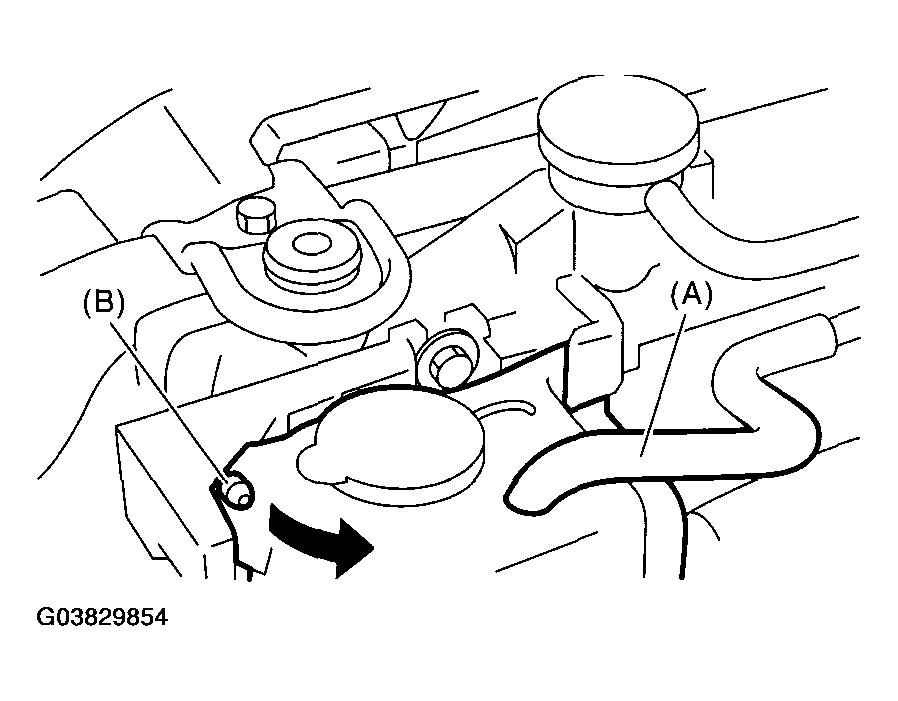

    Fig 1: Pulling Out Reservoir Tank
    G03829854Courtesy of SUBARU OF AMERICA, INC.
