Joint Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Disconnect the battery ground cable.

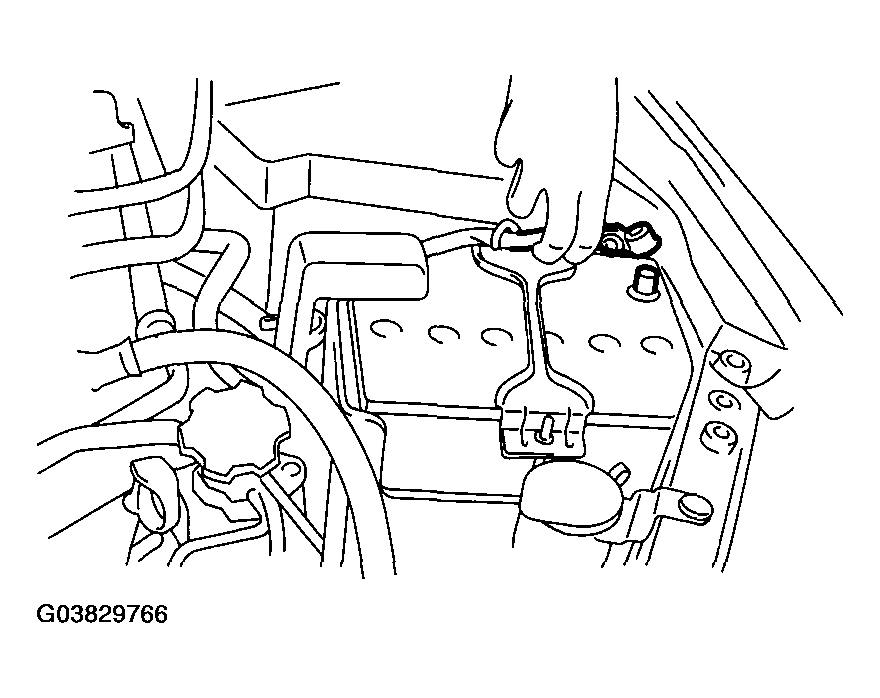

    Fig 1: Disconnecting Battery Ground Cable
    G03829766Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the exhaust temperature sensor connector.

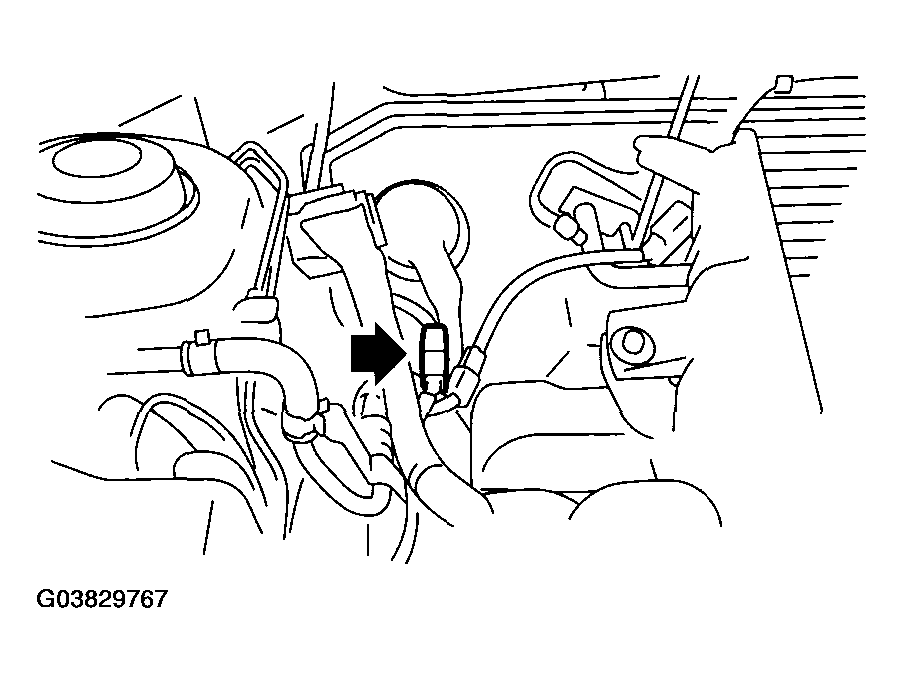

    Fig 2: Disconnecting Exhaust Temperature Sensor Connector
    G03829767Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the front oxygen (A/F) sensor. < Ref. to REMOVAL , Front Oxygen (A/F) Sensor. >
  5. Remove the under cover.
  6. Remove the exhaust manifold lower cover (RH).

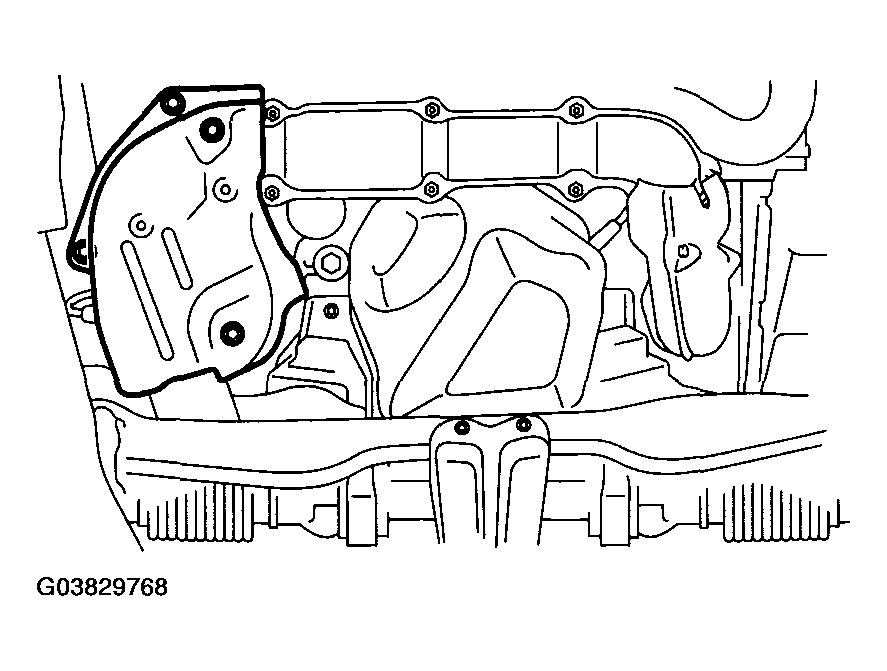

    Fig 3: Removing Exhaust Manifold Lower Cover
    G03829768Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the nuts which hold front exhaust manifold to joint pipe.

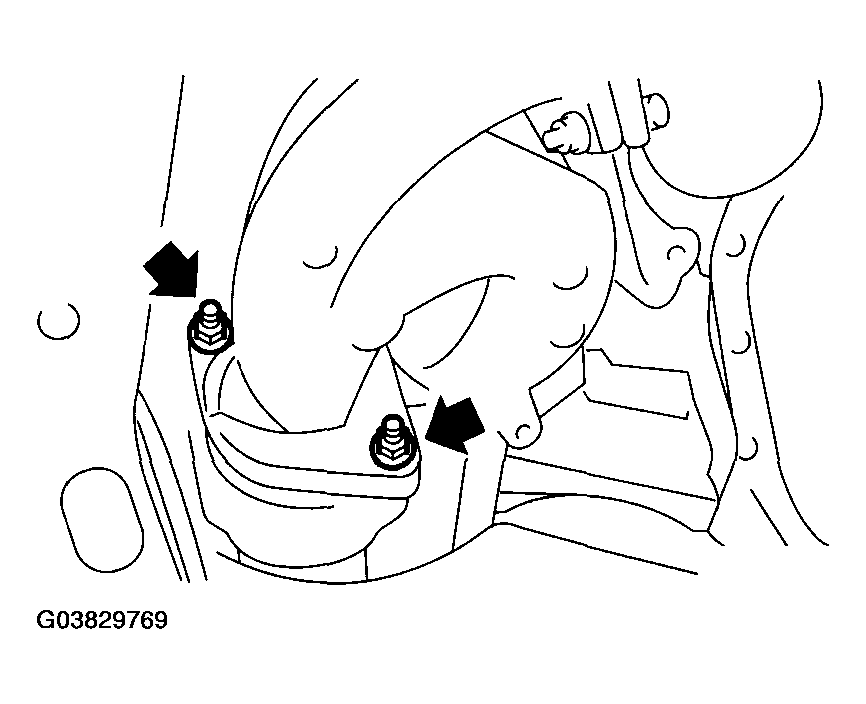

    Fig 4: Identifying Front Exhaust Manifold To Joint Pipe Removing Nuts
    G03829769Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the center exhaust pipe. < Ref. to , REMOVAL , Center Exhaust Pipe. >
  9. Remove the turbocharger. < Ref. to REMOVAL , Turbocharger. >
  10. Take off the joint pipe in the upward direction.
