Section 16 (Intake (Induction) (H4DOTC)): Turbocharger: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Remove the collector cover.
Disconnect the ground cable from battery.

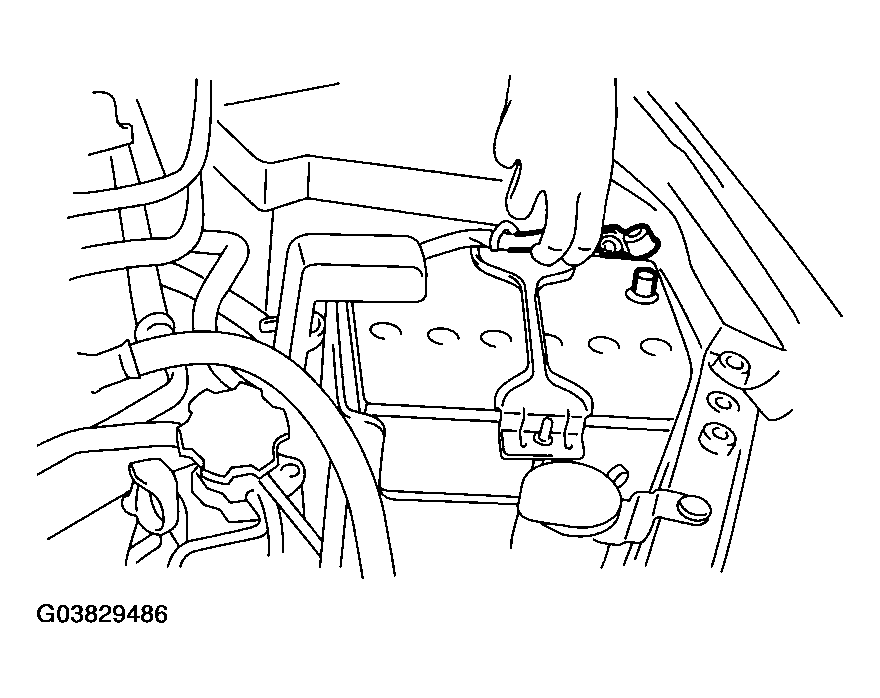

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to , REMOVAL , Intercooler. >
Remove the intercooler bracket RH.
Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
Lower the vehicle.
Separate the turbocharger joint pipe from turbocharger.

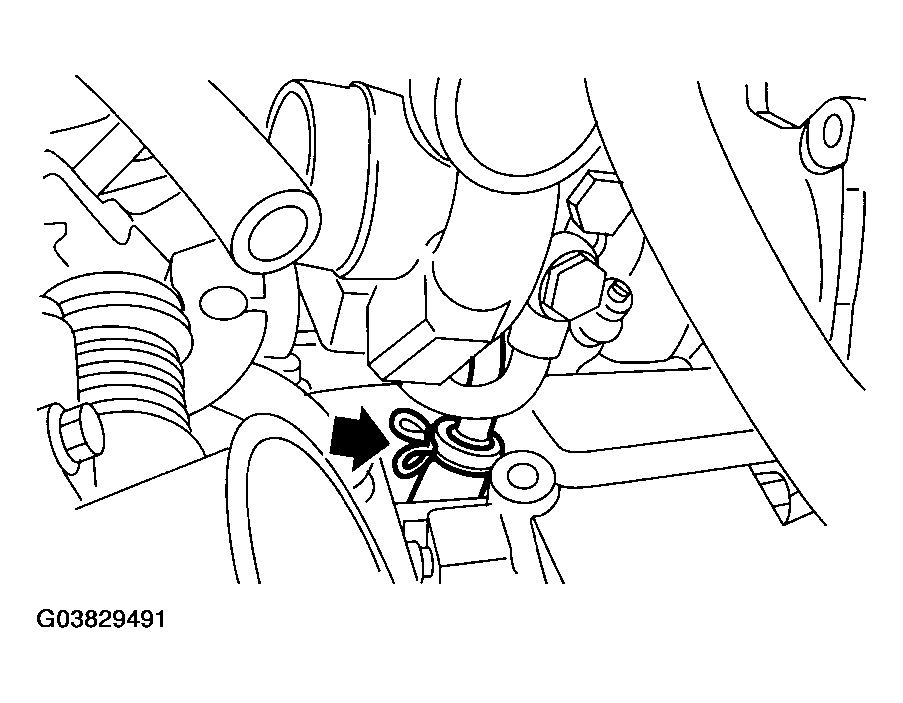

Fig 2: Separating Turbocharger Joint Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose which is connected to coolant filler tank.
Loosen the clamp which secures turbocharger to intake duct.

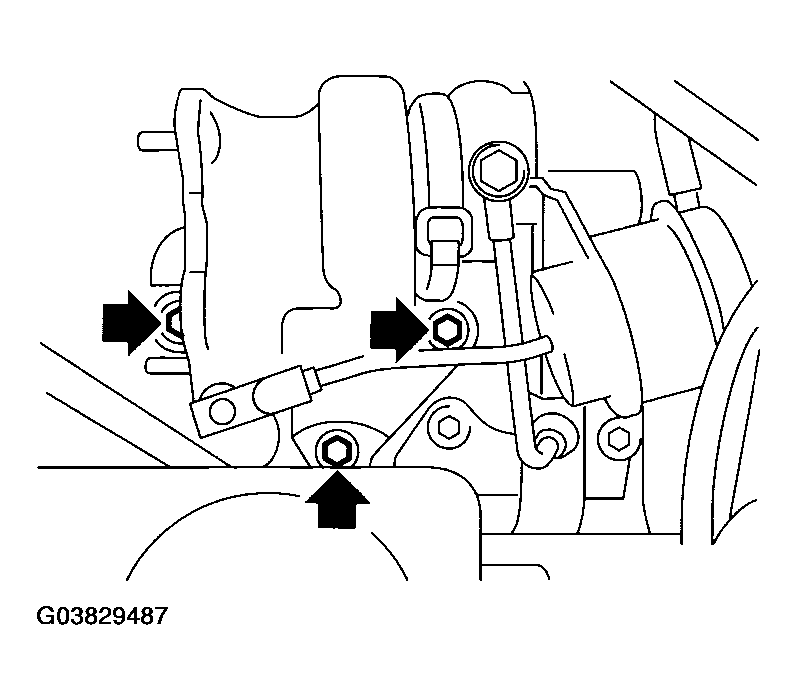

Fig 3: Loosening Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures bracket of oil pipe to turbocharger.
Remove the oil pipe from turbocharger.

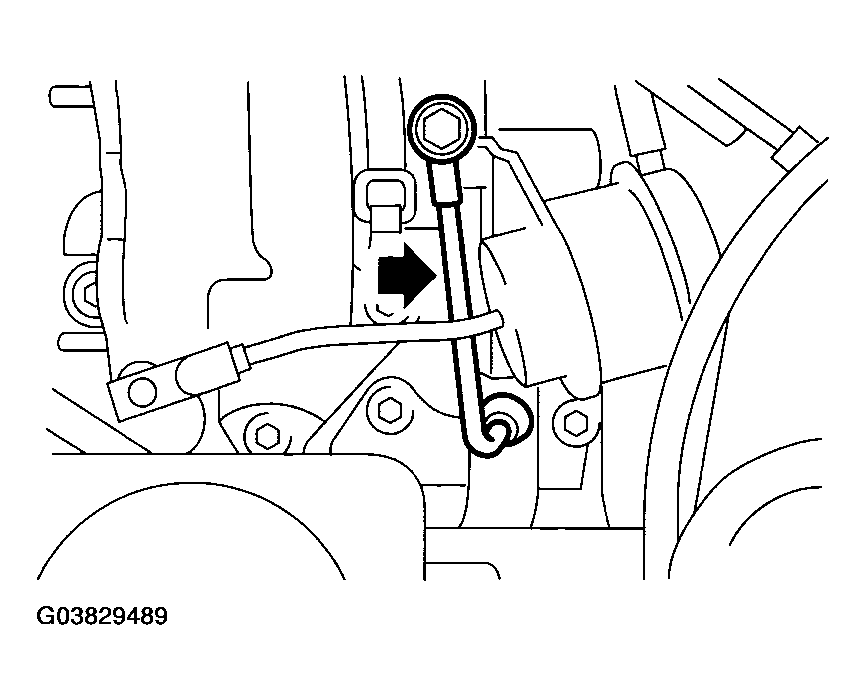

Fig 4: Removing Oil Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Remove the turbocharger bracket.

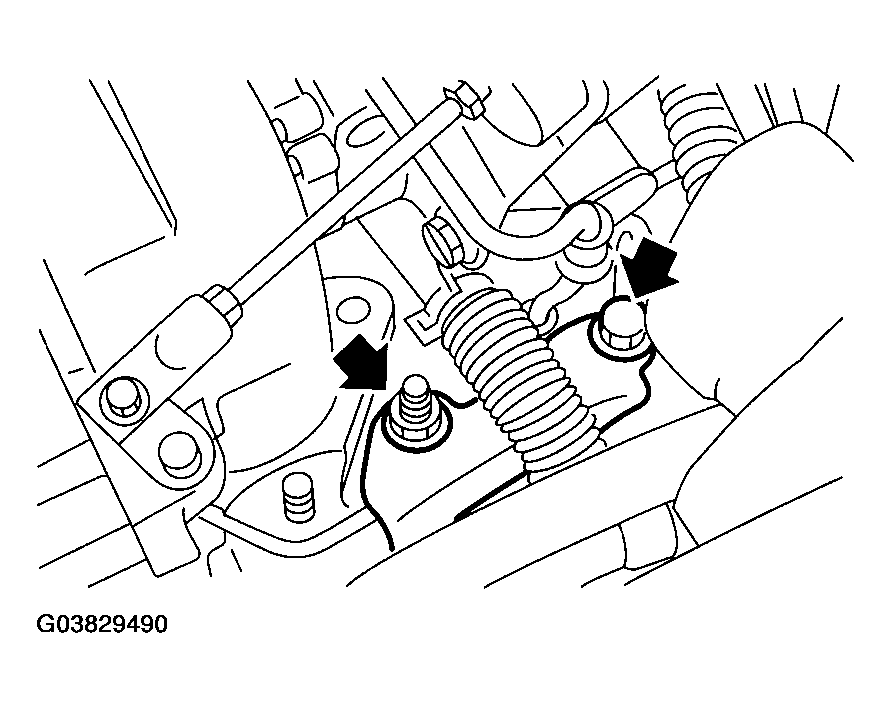

Fig 5: Removing Turbocharger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the oil outlet hose from pipe.

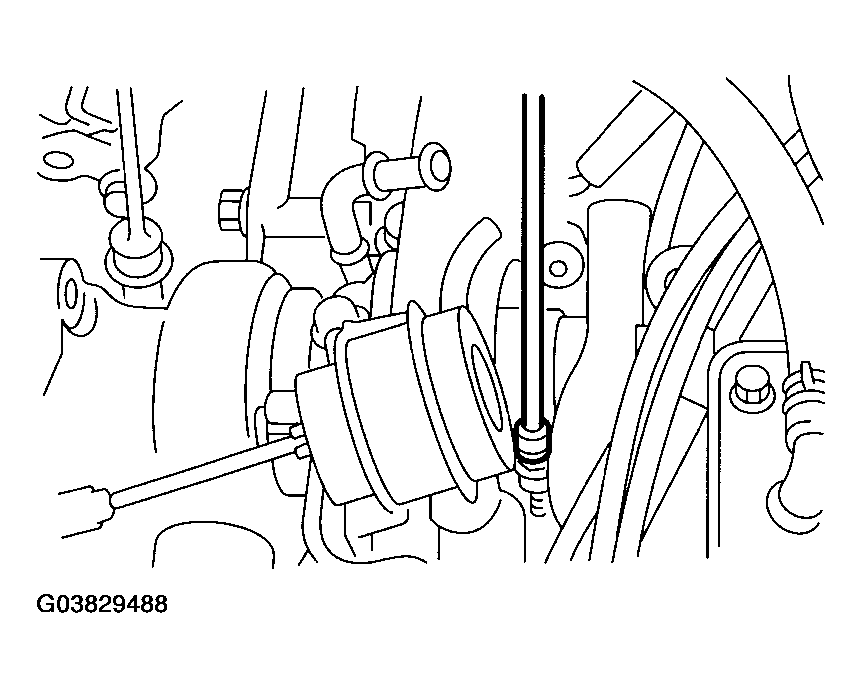

Fig 6: Disconnecting Oil Outlet Hose From Pipe
Courtesy of SUBARU OF AMERICA, INC.
Take out the turbocharger from engine compartment.
