Air Cleaner Case: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air intake duct. < Ref. to
, REMOVAL , Air Intake Duct. >
- Remove the air cleaner element.
< Ref. to
, REMOVAL , Air Cleaner Element. >

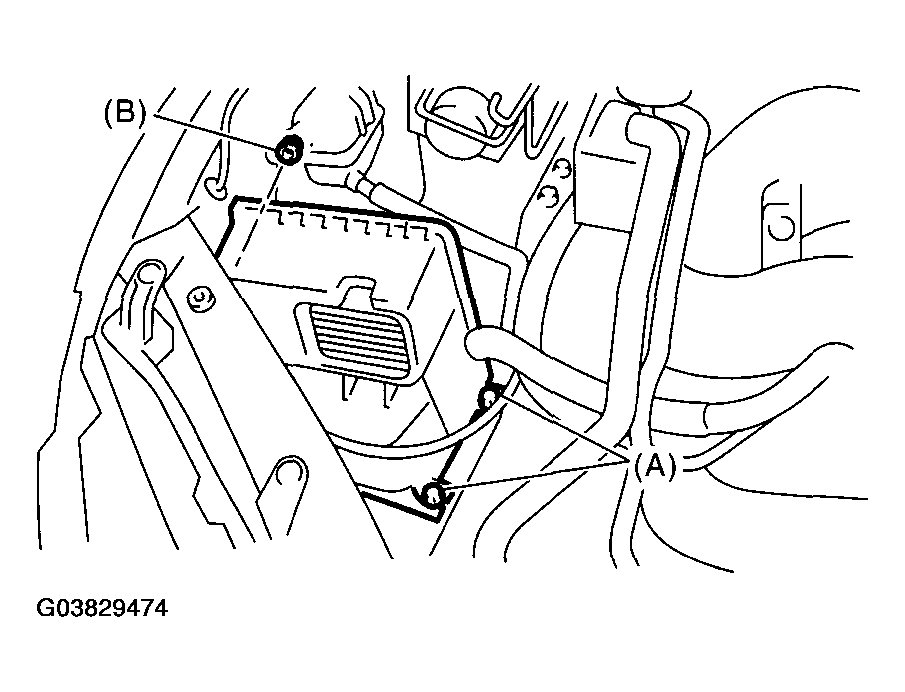

- Remove the bolts (A) and nut (B) which install air cleaner case (front) on the body.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the air cleaner case (front).
