Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.

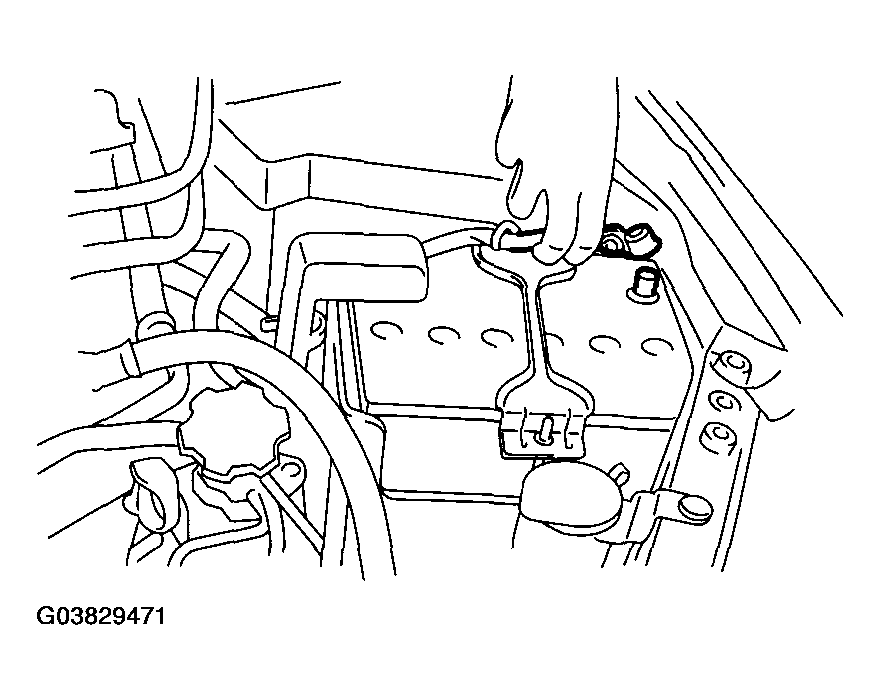

    Fig 1: Disconnecting Ground Cable From Battery
    G03829471Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A) from mass air flow sensor.
  3. Loosen the clamps (B) which connect air intake boot to intake duct.
  4. Remove the clips (C) from air cleaner case.

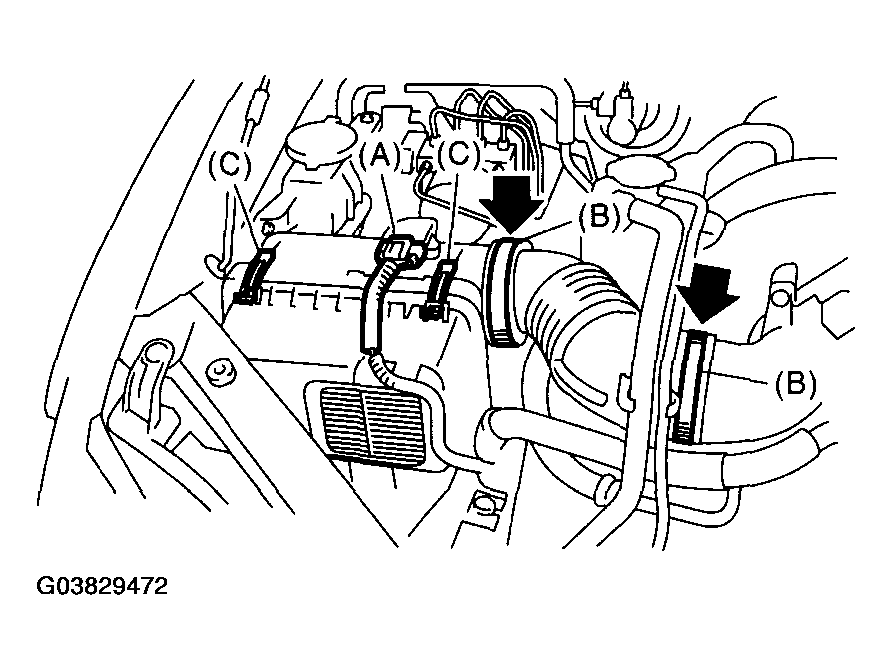

    Fig 2: Removing Clips From Air Cleaner Case
    G03829472Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air cleaner case (rear) and air intake boot.
  6. Remove the air cleaner element.
