Air Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the clips which install the air intake duct on the front side of body.

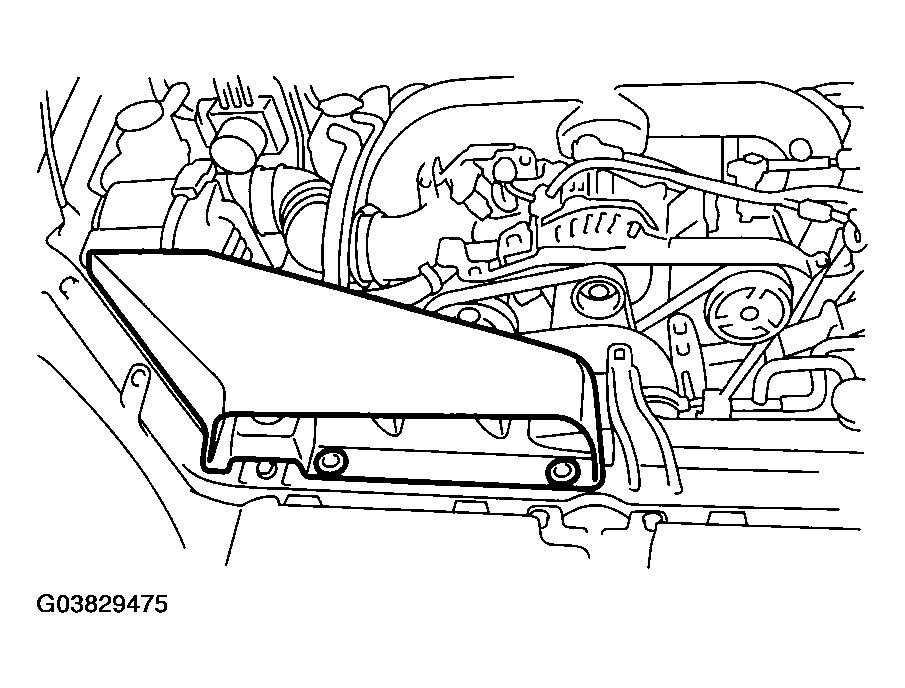

Fig 1: Identifying Air Intake Duct
G03829475Courtesy of SUBARU OF AMERICA, INC.
