Coolant Filler Tank: Removal

WARNING: The radiator is pressurized. Wait until the engine cools down before working on the radiator.
  1. Drain the coolant about 3.0 l (3.2 US qt, 2.6 Imp qt). < Ref. to , DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  2. Remove the air cleaner upper cover and air intake boot. < Ref. to REMOVAL , Air Cleaner . >
  3. Remove the air cleaner element.
  4. Disconnect the engine coolant hoses from coolant filler tank.

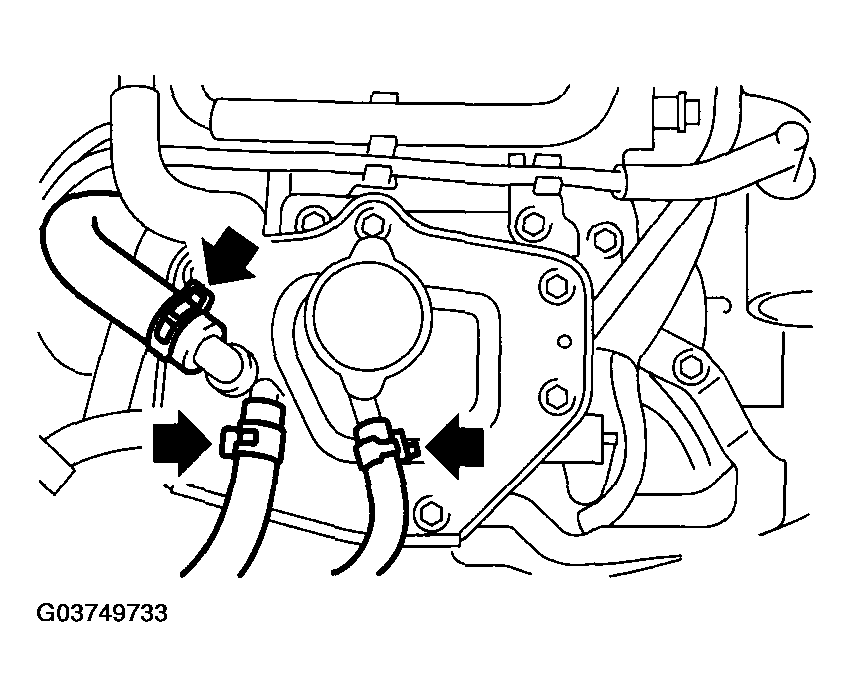

    Fig 1: Locating Hose Clips
    G03749733Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts and nut which install the coolant filler tank.
  6. Disconnect the engine coolant hose which connects the under side of coolant filler tank.
  7. Remove the coolant filler tank.

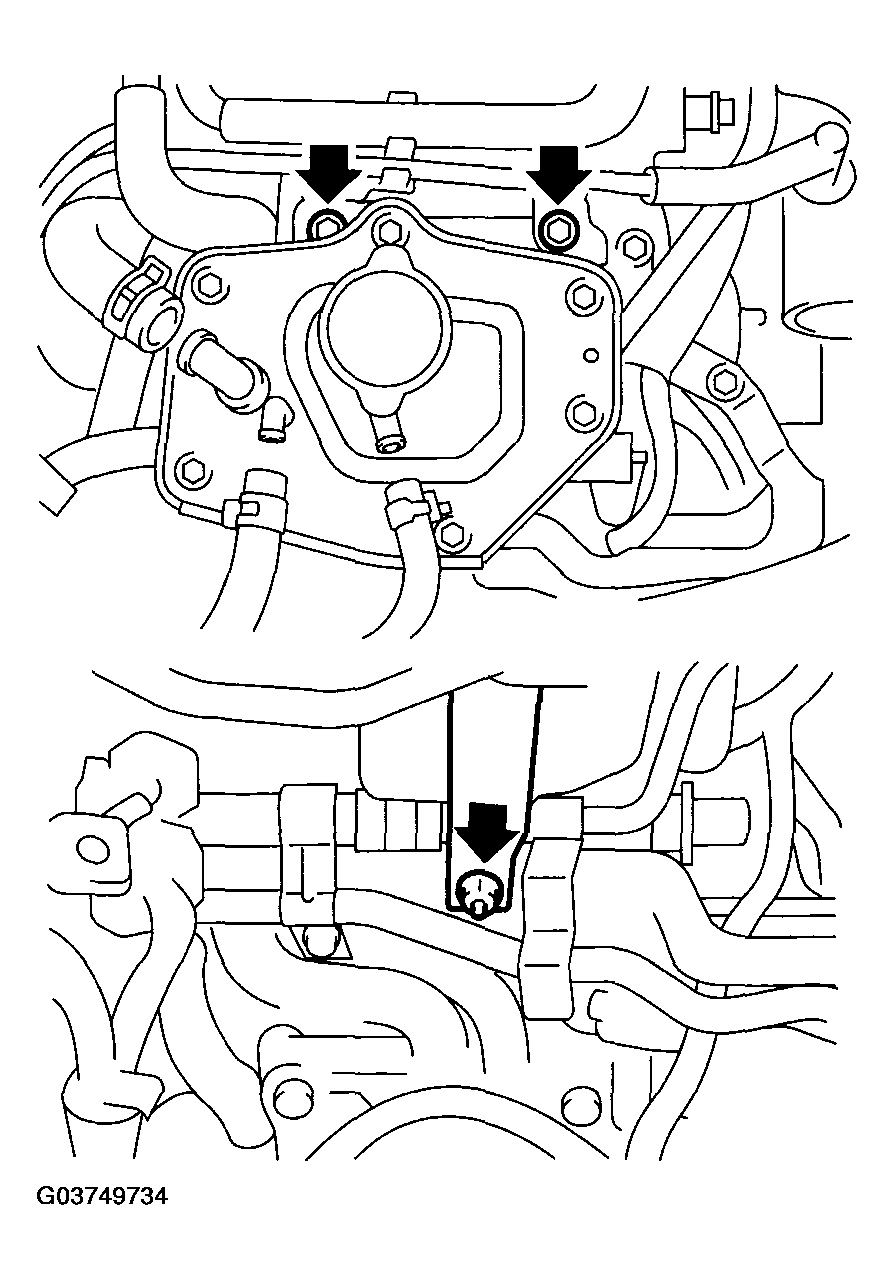

    Fig 2: Locating Filler Tank Bolt
    G03749734Courtesy of SUBARU OF AMERICA, INC.
