Air Cleaner: Removal

  1. Disconnect the ground cable from battery.

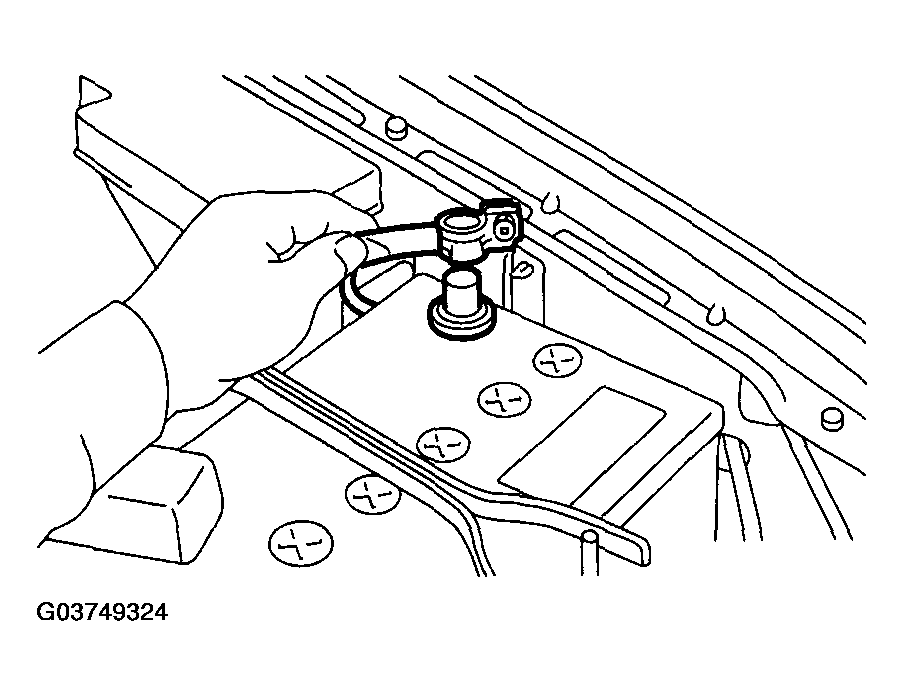

    Fig 1: Disconnecting Ground Cable From Battery
    G03749324Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from mass air flow sensor.

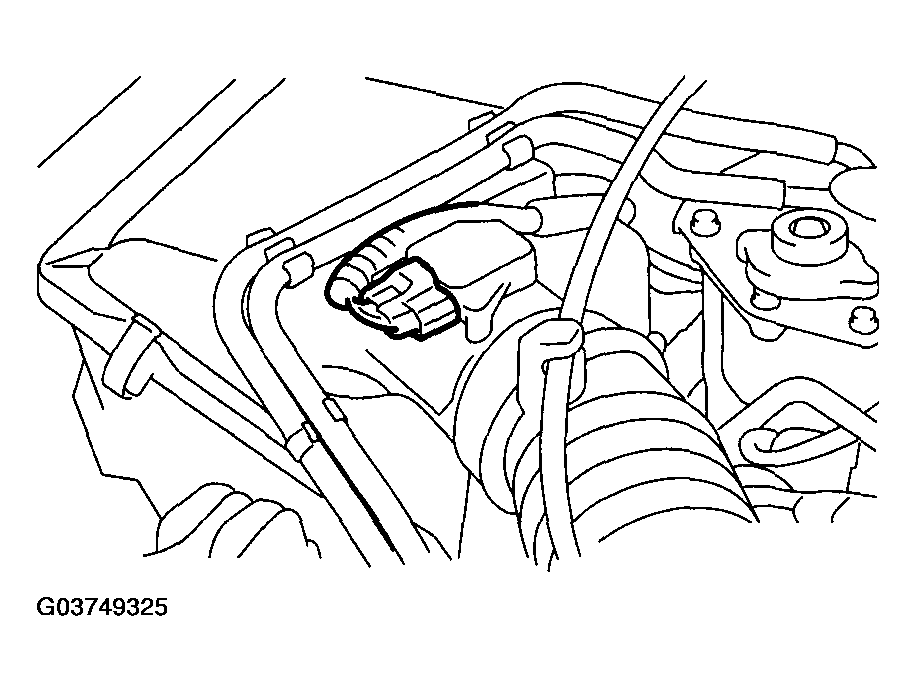

    Fig 2: Disconnecting Connector From Mass Air Flow Sensor
    G03749325Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen the clamp (A) which connects the air intake boot and intake duct.
  4. Remove the clip (B) from air cleaner upper cover.

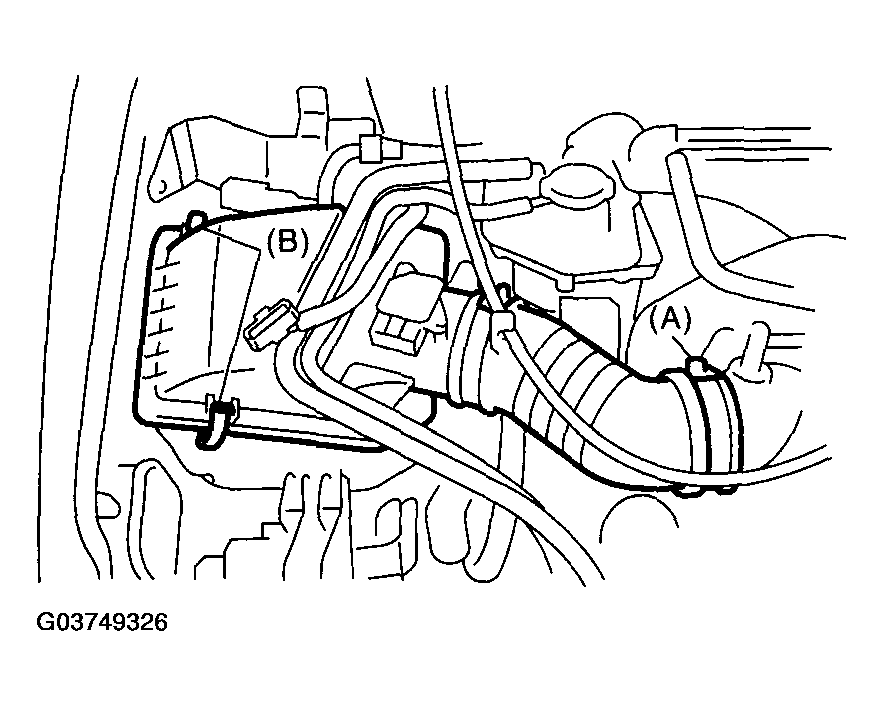

    Fig 3: Removing Clip From Air Cleaner Upper Cover
    G03749326Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air cleaner upper cover.
  6. Remove the air cleaner element.
  7. Remove the air cleaner lower case.

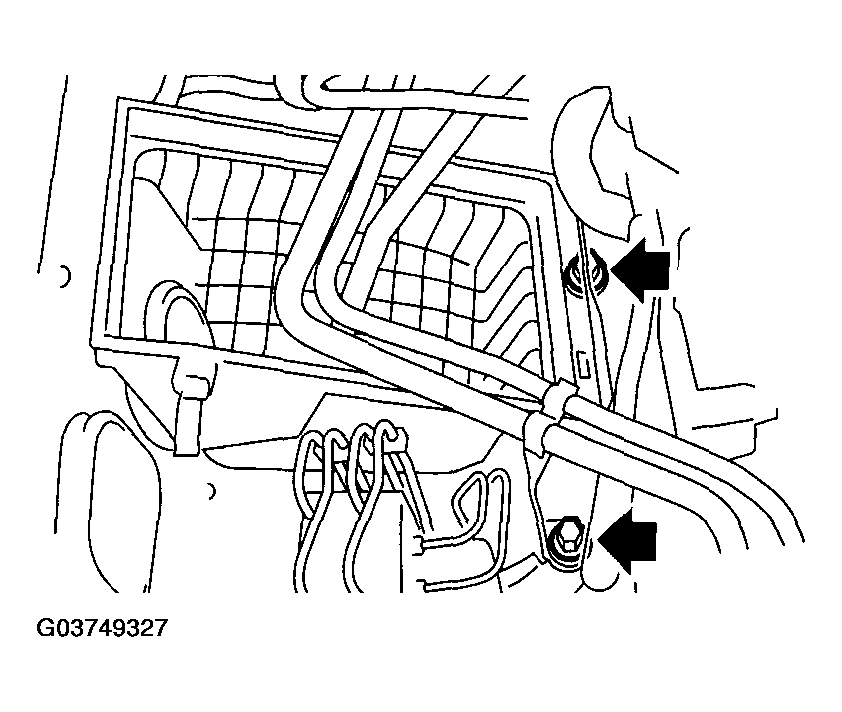

    Fig 4: Removing Air Cleaner Lower Cover Bolt
    G03749327Courtesy of SUBARU OF AMERICA, INC.
