Draining Of Engine Coolant

  1. Lift-up the vehicle.
  2. Remove the under cover.
  3. Remove the drain cock to drain engine coolant into container.
    NOTE: Remove the coolant filler tank cap so that engine coolant will drain faster.

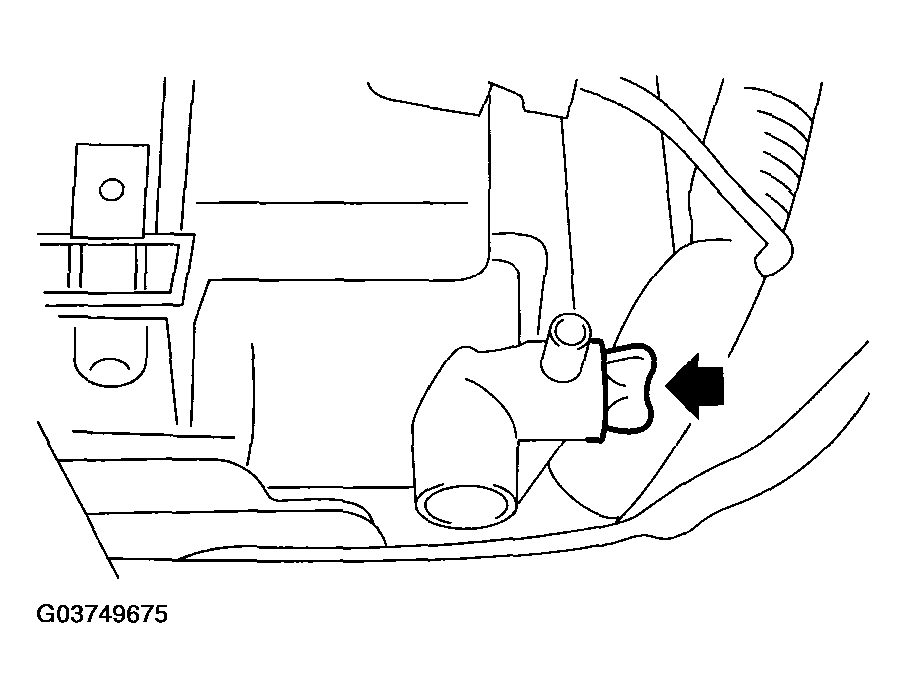

    Fig 1: Locating Drain Cock
    G03749675Courtesy of SUBARU OF AMERICA, INC.
  4. Install the drain cock.
