Front Sealing Cover: Removal

  1. Remove front door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove front speaker. Refer to REMOVAL , Front Speaker.
    CAUTION:
    • Carefully remove butyl tape. Excessive force will easily break the cover.
    • If cover gets broken, replace it with a new one.

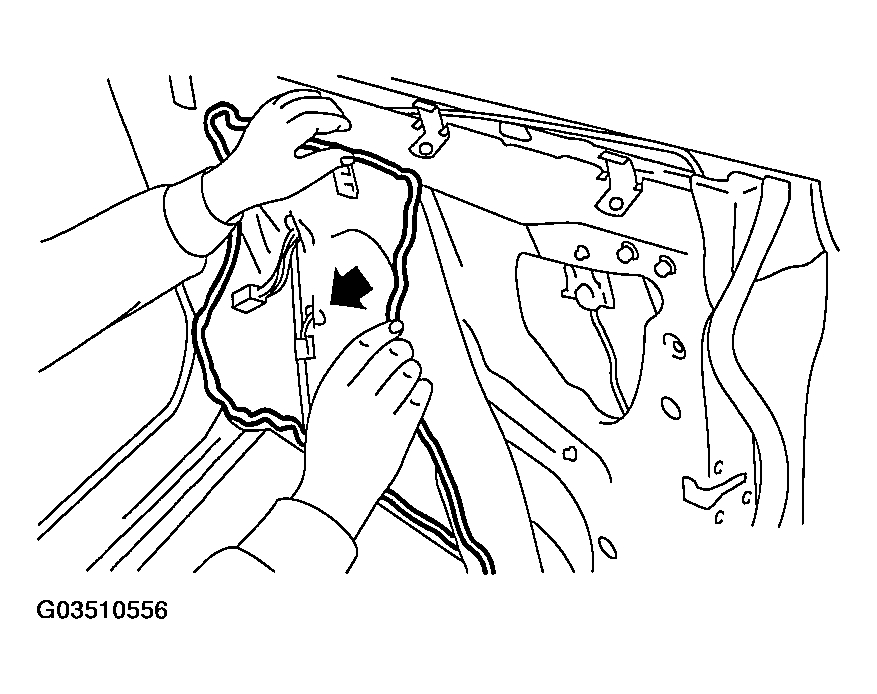

    Fig 1: Removing Front Door Trim
    G03510556Courtesy of SUBARU OF AMERICA, INC.
