Front Door Trim: Removal

CAUTION: Do not apply excessive force to clip. Otherwise the clip may be broken.

Pull up inner remote cover toward you to remove upper hook. Pull down it to remove lower claw. Remove inner remote cover.

Fig 1: Removing Inner Remote Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove two hook (A) of switch panel to remove power window main switch.

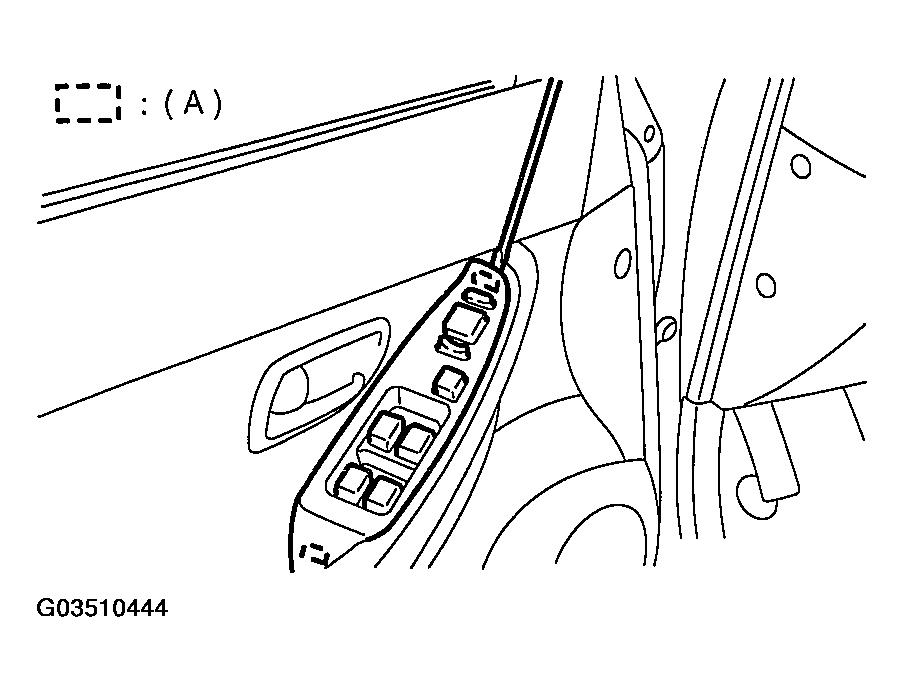

Fig 2: Removing Two Hook Of Switch Panel
Courtesy of SUBARU OF AMERICA, INC.
Disconnect electrical connectors from power window main switch and mirror switch.

Fig 3: Disconnecting Electrical Connectors From Power Window Main Switch & Mirror Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove three screws and clips.

Fig 4: Removing Three Screws & Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove gusset cover. Disconnect electrical connectors to remove speaker.

Fig 5: Removing Speaker
Courtesy of SUBARU OF AMERICA, INC.
Remove seven clips (A) of trim panel using clip remover to remove trim panel.

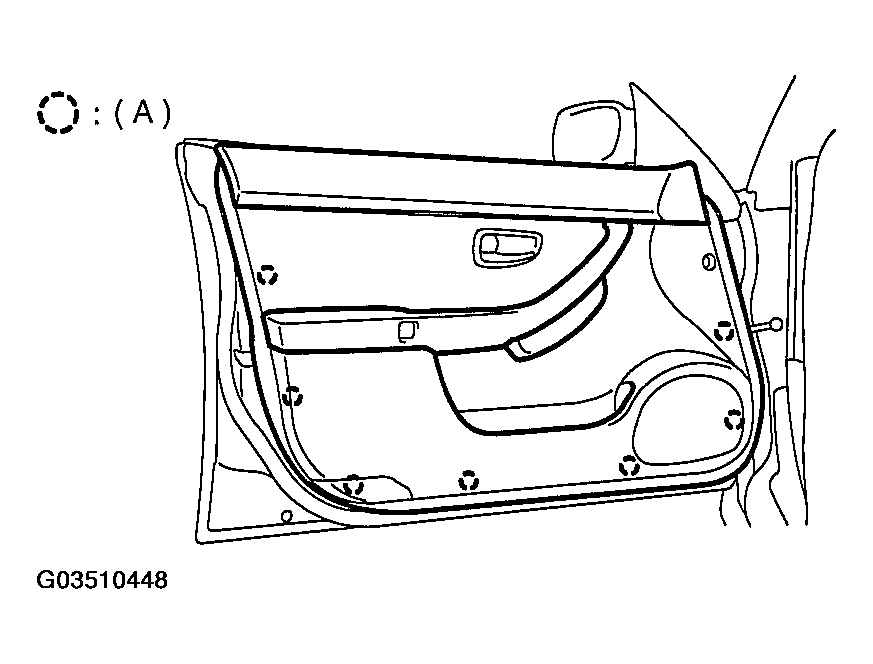

Fig 6: Removing Seven Clips
Courtesy of SUBARU OF AMERICA, INC.
