Front Speaker: Removal

  1. Disconnect ground cable from battery.
  2. Remove front door trim. Refer to REMOVAL , Front Door Trim.
  3. Remove front speaker mounting screws.

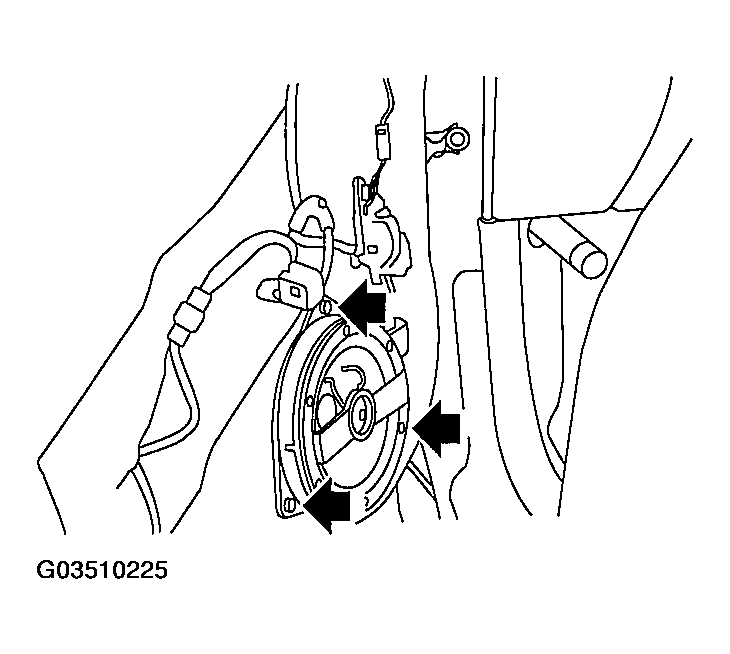

    Fig 1: Removing Front Speaker Mounting Screws
    G03510225Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect harness connector and remove front speaker.
