Front Door Glass: Removal

  1. Remove door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Remove outer weatherstrip.
  4. Remove inner stabilizer.
    Fig 1: Removing Inner Stabilizer
    G03510251Courtesy of SUBARU OF AMERICA, INC.
  5. Remove outer mirror. Refer to REMOVAL  , Outer Mirror Assembly.
  6. Remove gusset.

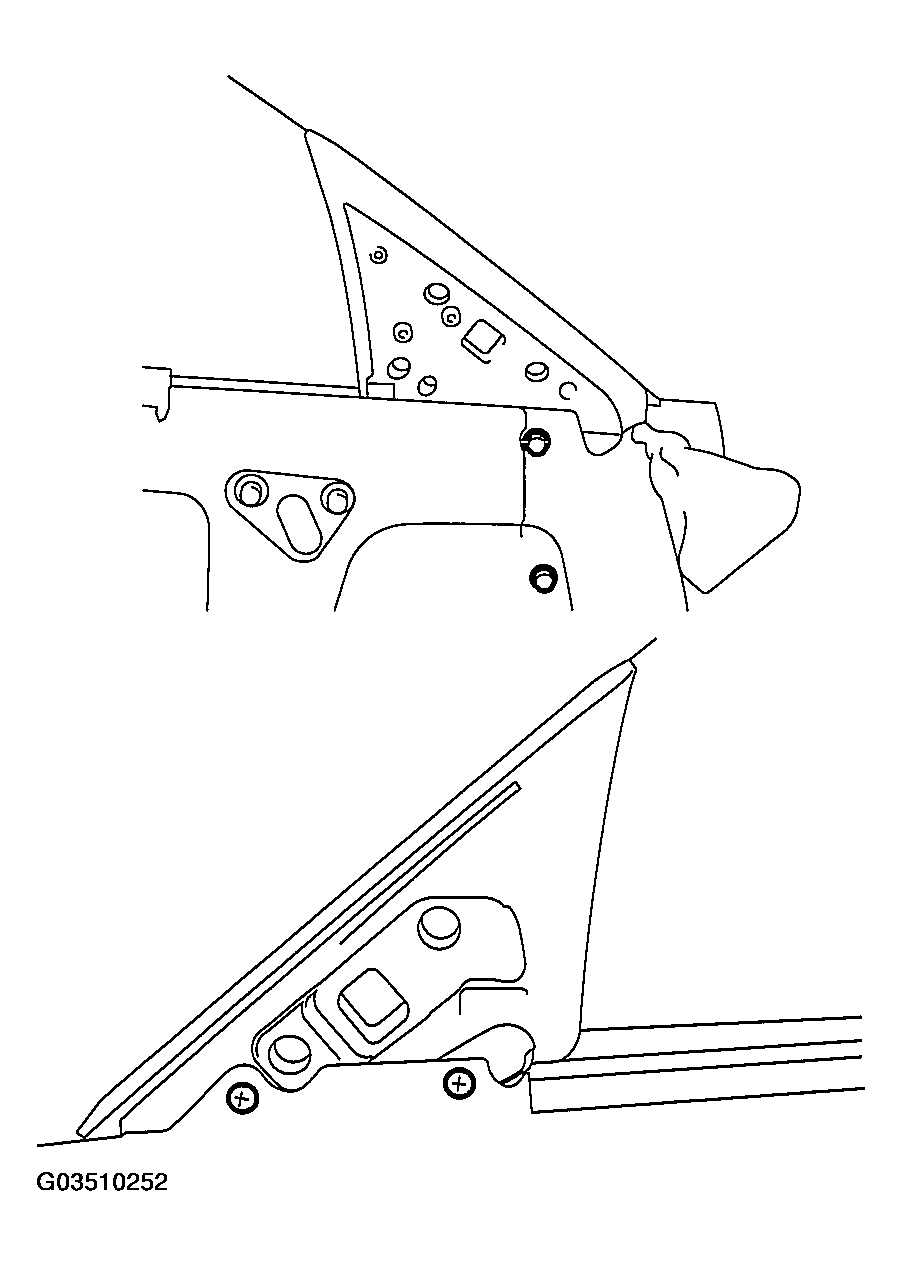

    Fig 2: Removing Gusset
    G03510252Courtesy of SUBARU OF AMERICA, INC.
  7. Operate the power window switch to move glass to the position shown in the figure, and then remove the two nuts from service holes.

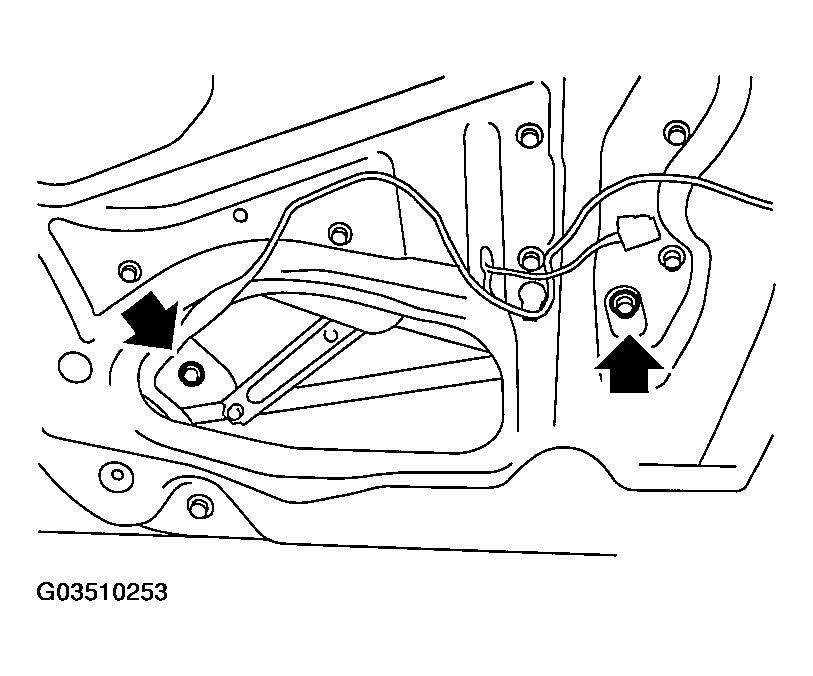

    Fig 3: Removing Two Nuts From Service Holes
    G03510253Courtesy of SUBARU OF AMERICA, INC.
  8. Take out glass door panel upward.

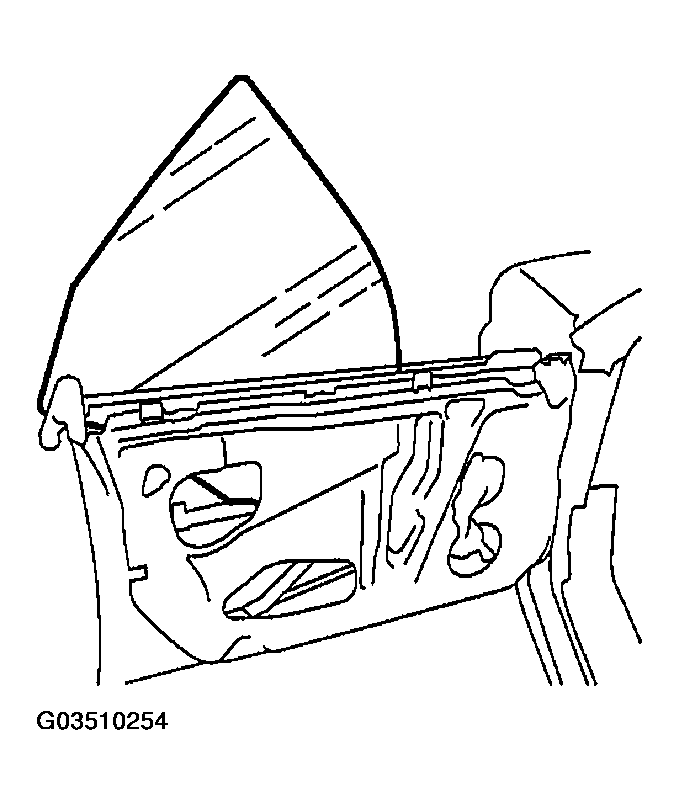

    Fig 4: Taking Out Glass Door Panel Upward
    G03510254Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
  • Do not turn regulator in the closing direction after removal of the glass. Otherwise gear may be disengaged.
  • Avoid impact and damage to the glass.
