Crankshaft Sprocket: Installation

  1. Install crankshaft sprocket.

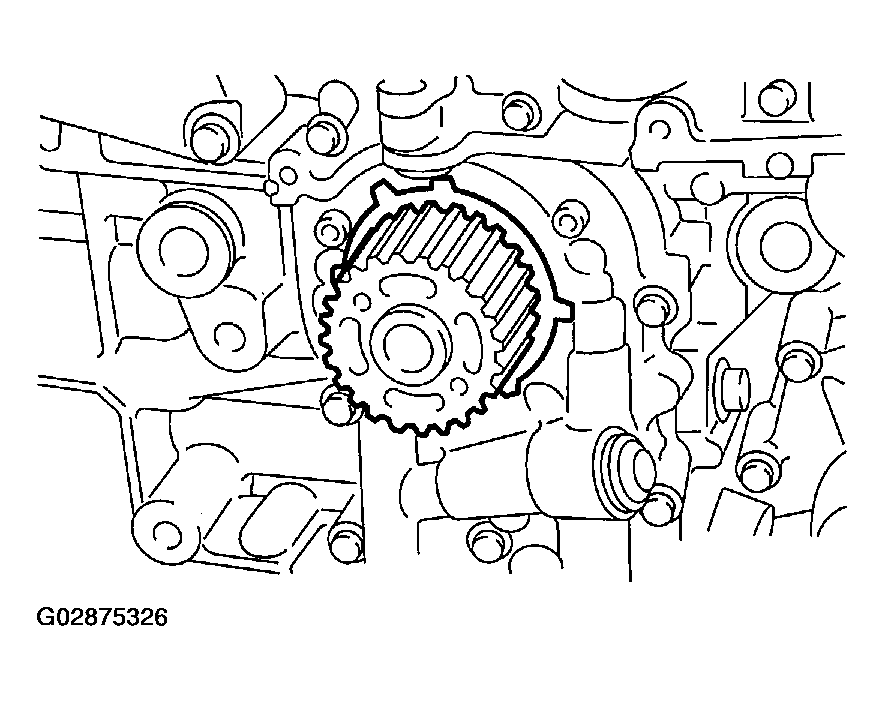

    Fig 1: Installing Crankshaft Sprocket
    G02875326Courtesy of SUBARU OF AMERICA, INC.
  2. Install camshaft sprocket. See INSTALLATION , Camshaft Sprocket.
  3. Install timing belt assembly. See INSTALLATION , Timing Belt Assembly.
  4. Install belt cover. See INSTALLATION , Belt Cover.
  5. Install crankshaft pulley. See INSTALLATION , Crankshaft Pulley.
  6. Install V-belt. See INSTALLATION , V-belt.
