Camshaft Sprocket: Installation

  1. Install camshaft sprocket No. 1 and No. 2. To lock camshaft, use ST.
    1. ST 18231AA010 CAMSHAFT SPROCKET WRENCH
    NOTE: CAMSHAFT SPROCKET WRENCH (499207100) is also can be used.
    1. Tightening torque:  78 N.m (8.0 kgf-m, 57.9 ft-lb)
    CAUTION: Do not confuse left and right side camshaft sprockets during installation. The camshaft sprocket No. 2 is identified by a projection used to monitor camshaft position sensor.

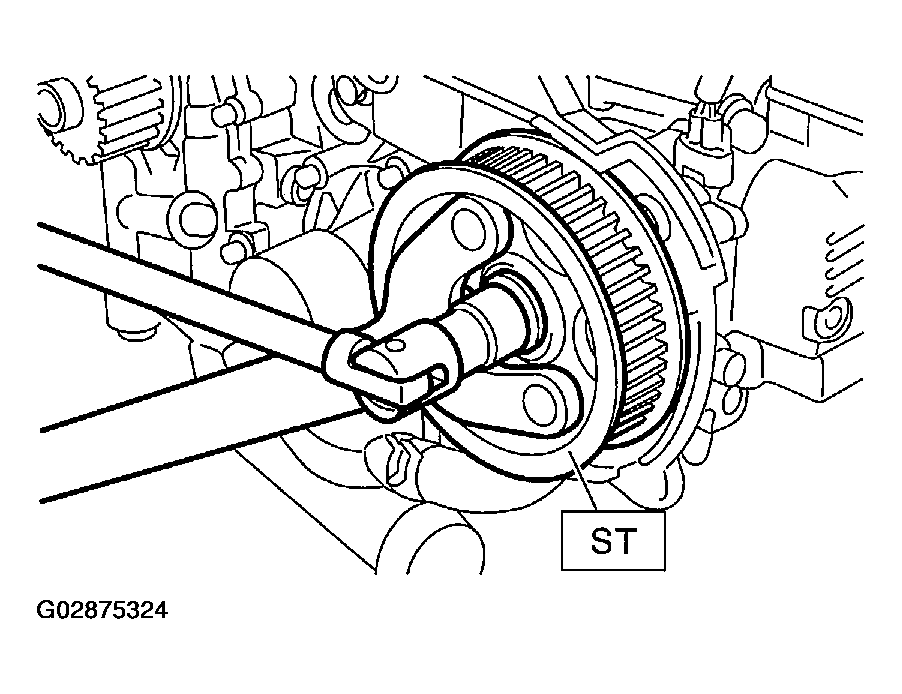

    Fig 1: Installing Camshaft Sprocket No. 1 & No. 2
    G02875324Courtesy of SUBARU OF AMERICA, INC.
  2. Install timing belt assembly. See INSTALLATION , Timing Belt Assembly.
  3. Install belt cover. See INSTALLATION , Belt Cover.
  4. Install crankshaft pulley. See INSTALLATION , Crankshaft Pulley.
  5. Install V-belt. See INSTALLATION , V-belt.
