Belt Cover: Installation

  1. Install front belt cover.
    1. Tightening torque:  5 N.m (0.5 kgf-m, 3.6 ft-lb)
  2. Install belt cover (LH).
    1. Tightening torque:  5 N.m (0.5 kgf-m, 3.6 ft-lb)

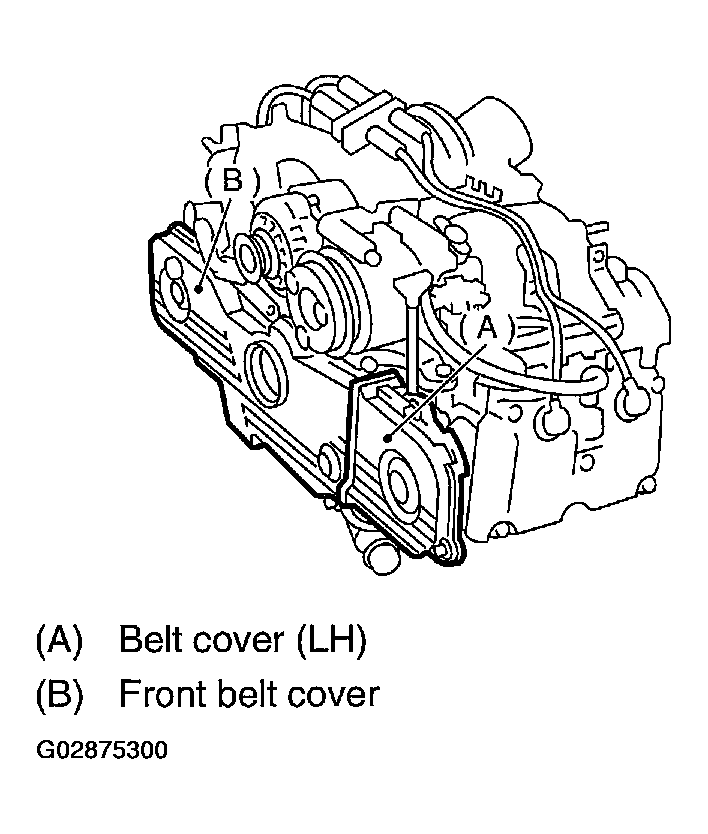

    Fig 1: Installing Belt Cover (LH)
    G02875300Courtesy of SUBARU OF AMERICA, INC.
  3. Install crankshaft pulley. See INSTALLATION , Crankshaft Pulley>
  4. Install V-belt. See INSTALLATION , V-belt.
