Sunroof Motor: Removal: Wagon

Completely close the front and rear sunroof, then tilt-up the front sunroof to the most upper position.
Disconnect ground cable from battery.
Remove rear sunroof lid. < Ref. to SEDAN AND WAGON (REAR) , REMOVAL, Sunroof Lid.>
Confirm the matching mark (A) of rear sunroof bracket link and the guide from sunroof opening. (If the mark does not match, adjust to match the mark.)

Fig 1: Identifying Matching Marks On Rear Sunroof Bracket Link & Guide (Wagon)
Courtesy of SUBARU OF AMERICA, INC.
Remove luggage room light. < Ref. to REMOVAL , Luggage Room Light.>
Remove rear assist grips.
Remove rear quarter trim. < Ref. to WAGON , REMOVAL, Rear Quarter Trim.>
Remove cover (B) while detaching snap lock carefully. Put the rear center seat belt tongue (A) out to the other side of the trim through the hole.

Fig 2: Removing Rear Cover Detaching Snap Lock
Courtesy of SUBARU OF AMERICA, INC.
Remove clips and hang down rear end of roof trim.

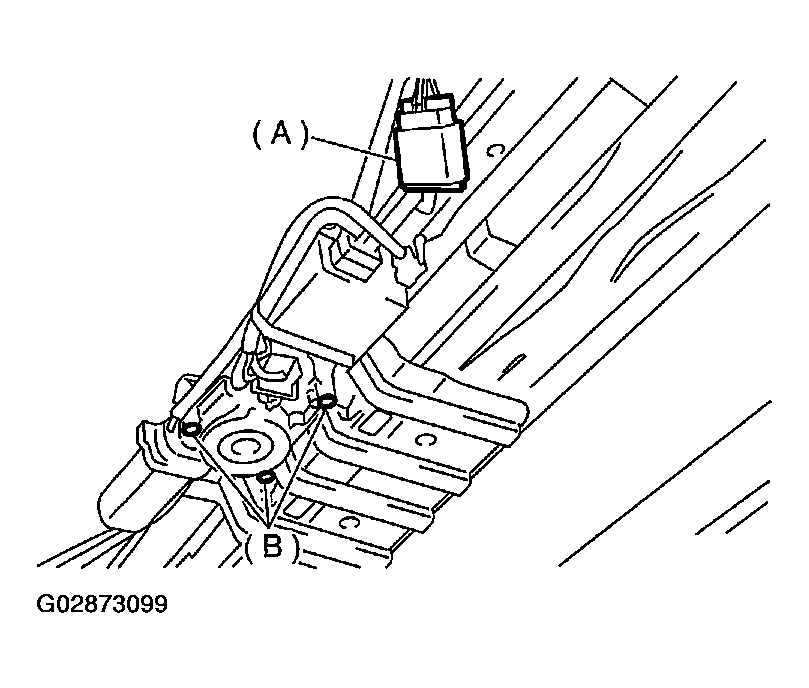

Disconnect harness connector (A) and remove sunroof motor mounting screw (B).

Fig 3: Disconnecting Harness Connector & Removing Sunroof Motor Mounting Screw

Courtesy of SUBARU OF AMERICA, INC.
