Sedan And Wagon (Rear)

  1. Completely close rear sunroof lid and open sunshade.
  2. Remove covers (A) then remove nuts (B).

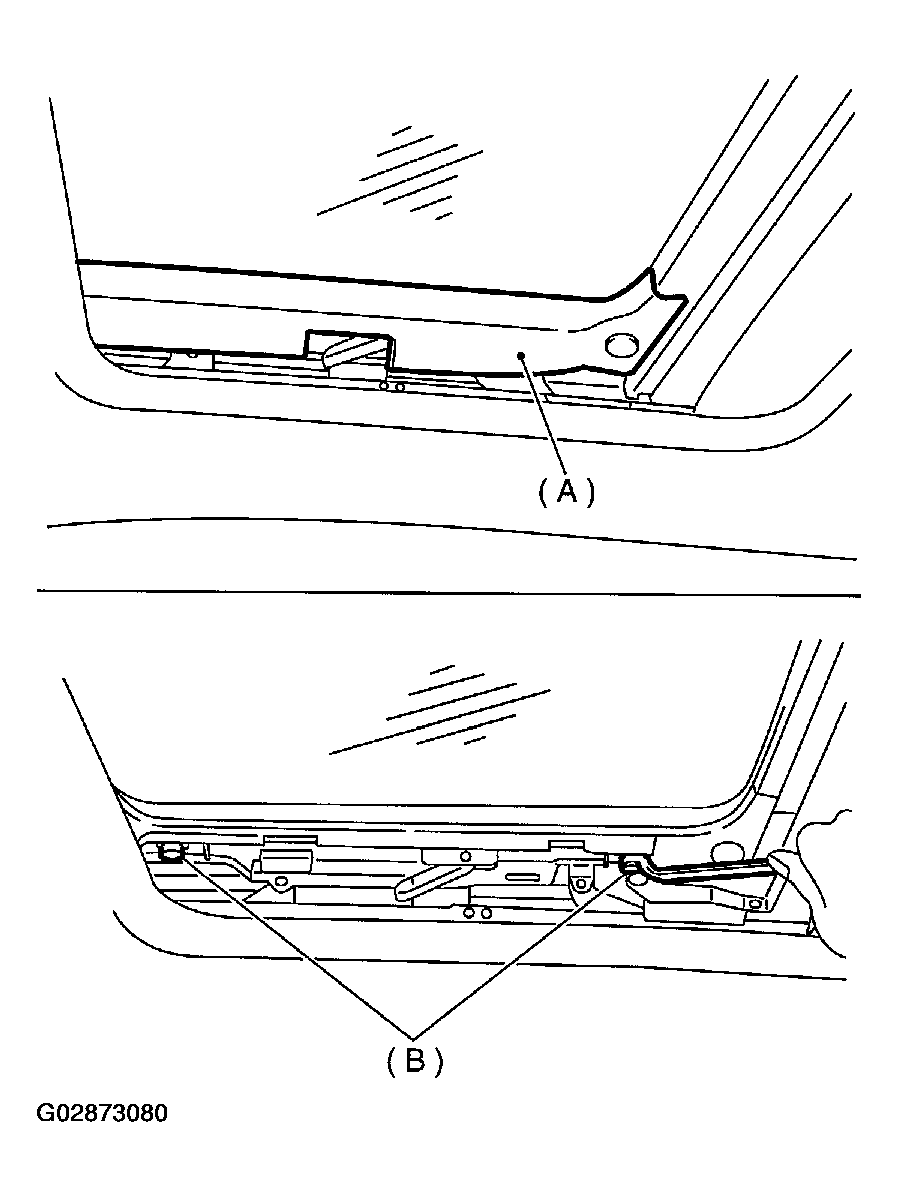

    Fig 1: Removing Covers & Nuts
    G02873080Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the sunroof lid carefully.
