Home >> Subaru >> 2003 >> Outback Limited, 4D Sedan >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (All Models) >> Luggage Room Light >> Removal

Luggage Room Light: Removal

  1. Disconnect ground cable from battery.
  2. Remove lens (A) and luggage room light mounting screws (B).

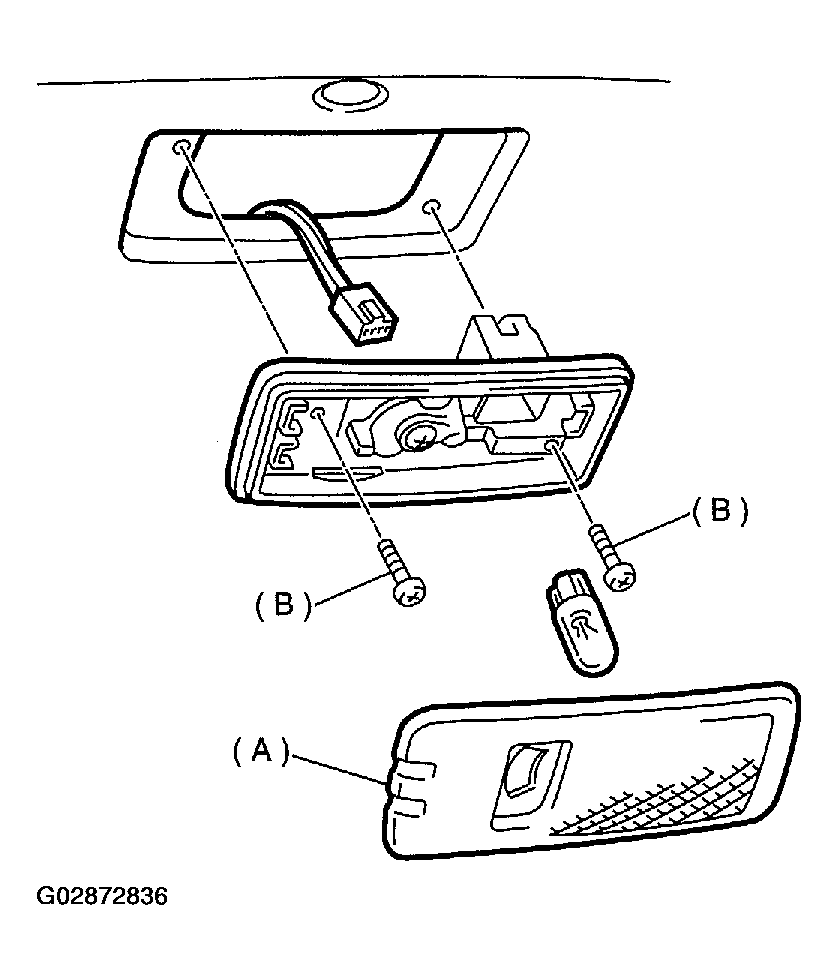

    Fig 1: Removing Lens & Luggage Room Light Mounting Screws
    G02872836Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect harness connectors and remove luggage room light.
