Wagon (Rear)

  1. Disconnect ground cable from battery.
  2. Remove roof trim. < Ref. to WAGON , REMOVAL, Roof Trim. >
  3. Remove rear sunroof lid. < Ref. to SEDAN AND WAGON (REAR)  , REMOVAL, Sunroof Lid.>
  4. Disconnect drain tubes (A) from rear sunroof frame.
  5. Disconnect sunroof harness connector (B).
  6. Remove sunroof brackets (C).
  7. Remove bolts (D) and nuts (E) then detach the sunroof frame.

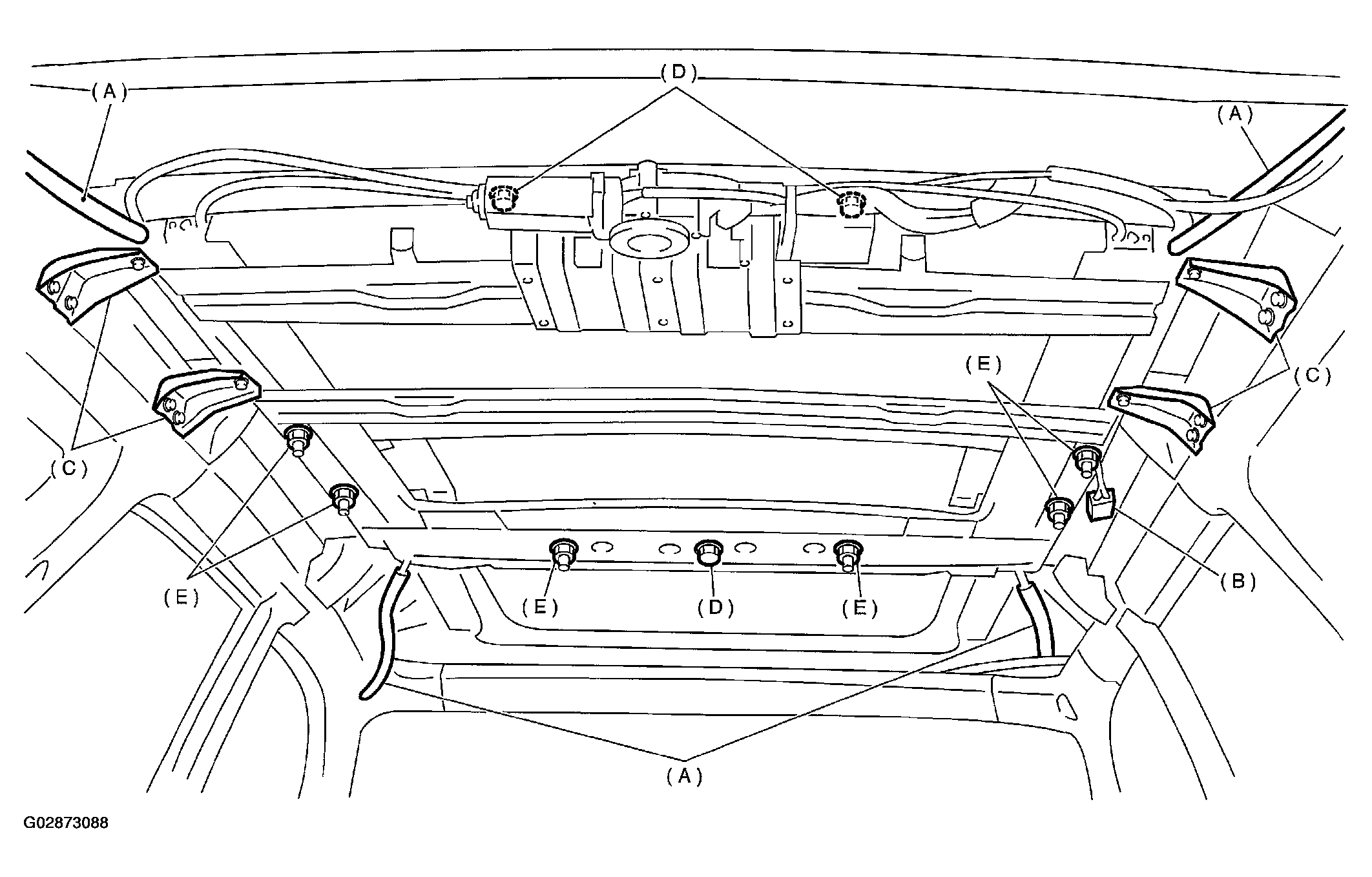

    Fig 1: Removing Sunroof Frame (Wagon Rear)
    G02873088Courtesy of SUBARU OF AMERICA, INC.
