Roof Trim: Removal: Wagon

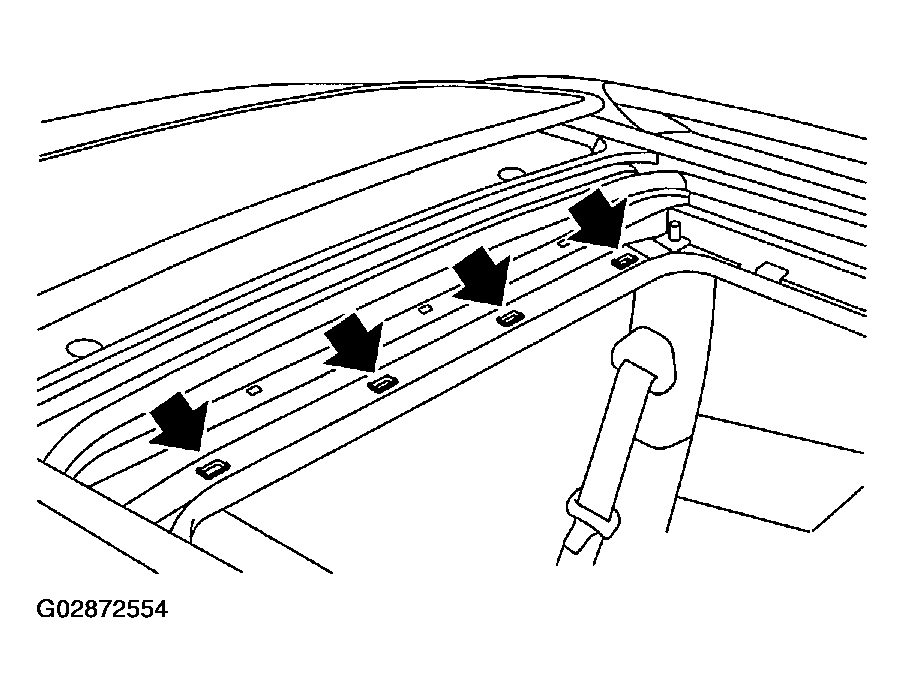

Open the rear sunroof, and then remove four clips. (Sunroof equipped model)

Fig 1: Removing Four Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ground cable from battery.
Remove sunroof switch. (Sunroof equipped model) < Ref. to REMOVAL , Sunroof Switch.>
Remove room light and luggage room light. < Ref. to REMOVAL , Room Light> and < Ref. to REMOVAL , Luggage Room Light.>
Remove sun visor and hook of both sides. < Ref. to REMOVAL , Sun Visor.>
Remove assist grips (A).

Fig 2: Removing Assist Grips
Courtesy of SUBARU OF AMERICA, INC.
Remove upper inner trim. < Ref. to REMOVAL , Upper Inner Trim.>

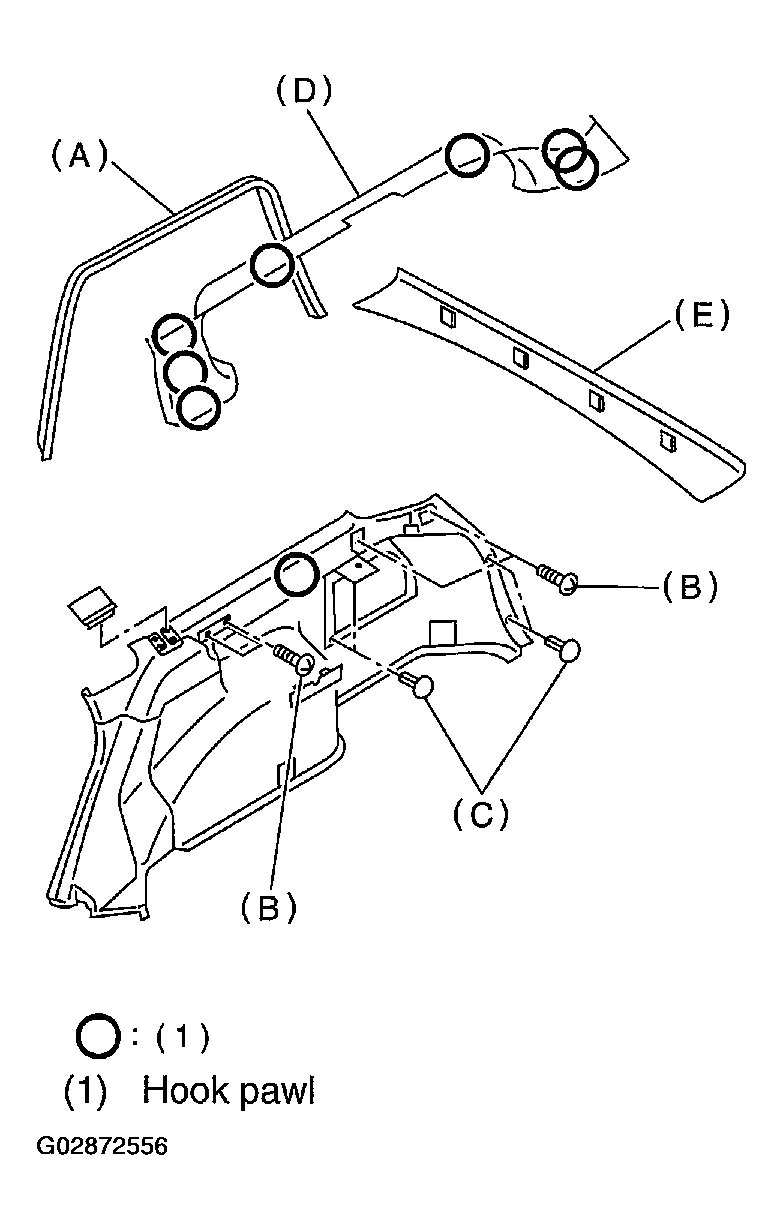

Remove rear window mole of both sides (A).
Remove screws (B) and clips (C) of rear quarter lower trim shown in the figure.
Remove rear quarter upper trim (D) of both sides.
Remove rear rail trim (E).

Fig 3: Removing Rear Rail Trim
Courtesy of SUBARU OF AMERICA, INC.
Remove cover (B) while detaching snap lock carefully. Put the rear center seat belt tongue (A) out to the other side of the trim through the hole.

Fig 4: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove clips and then remove roof trim.

Fig 5: Removing Roof Trim
Courtesy of SUBARU OF AMERICA, INC.
