Adjust Liftgate - AR72.20-P-0002SRC
MODEL 453.4
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Check whether liftgate (1) can be closed easily and the gap dimensions are within the tolerance range | AR60.00-P-0700-01SR | |
| Soft top to liftgate | *BE60.00-P-1032-01CA | ||
| Bumper to lower liftgate | *BE60.00-P-1024-01CA | ||
| Taillamp panel to liftgate | *BE60.00-P-1023-01CA | ||

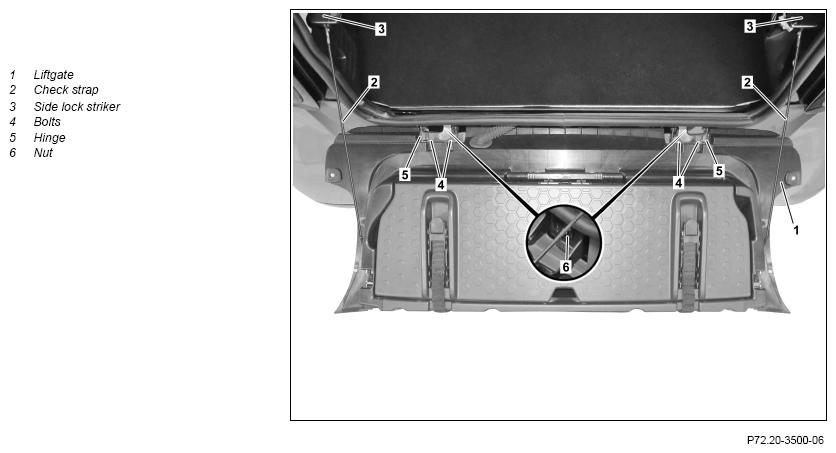

| Figure | |||
| Remove | |||
| 2 | Remove check straps (2) from side lock strikers (3) | AR72.20-P-2571SRA | |
| 3 | Remove paneling over side lock strikers (3) | AR68.30-P-4700SRC | |
| 4 | Remove side lock strikers (3) | ||
| Adjust | |||
| 5 | Loosen bolts (4) of hinges (5) | ||
| 6 | Align liftgate (1) and tighten bolts (4) | AR60.00-P-0700-01SR | |
| Soft top to liftgate | *BE60.00-P-1032-01CA | ||
| Bumper to lower liftgate | *BE60.00-P-1024-01CA | ||
| Taillamp panel to liftgate | *BE60.00-P-1023-01CA | ||
| *BA72.20-P-1002-03SR | |||
| Figure | |||
| 7 | Loosen nuts (6) of hinges (5) | ||
| 8 | Align liftgate (1) and tighten nuts (6) | AR60.00-P-0700-01SR | |
| Soft top to liftgate | *BE60.00-P-1032-01CA | ||
| Bumper to lower liftgate | *BE60.00-P-1024-01CA | ||
| Taillamp panel to liftgate | *BE60.00-P-1023-01CA | ||
| *BA72.20-P-1005-03SR | |||
| Figure | |||
| Install | |||
| 9 | Install side lock strikers (3) | ||
| 10 | Install check straps (2) on side lock strikers (3) | AR72.20-P-2571SRA | |
| Adjust | |||
| 11 | Adjust transition of liftgate (1) to edges of taillamp covers and sideways motion of lock strikers (3) | ||
| Install | |||
| 12 | Tighten bolts of side lock strikers (3) | ||
| 13 | Install paneling over side lock strikers (3) | AR68.30-P-4700SRC |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1023-01CA | Taillamp panel to liftgate | Dimension "T" | mm | 4, 5 (±1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1024-01CA | Bumper to lower liftgate | Dimension "U" | mm | 5 (±2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1032-01CA | Soft top to liftgate | Dimension "V4" | mm | 8 (±2) |
LIFTGATE
| Number | Designation | Model 453.4 | |
|---|---|---|---|
| BA72.20-P-1002-03SR | Screw/bolt/nut, liftgate hinge to liftgate | Nm | 21 |
LIFTGATE
| Number | Designation | Model 453.4 | |
|---|---|---|---|
| BA72.20-P-1005-03SR | Screw/bolt/nut, liftgate hinge to rear center section | Nm | 21 |
