Remove/Install Side Support Bearing - AR77.33-P-1008MCO
MODEL 451.4, 453.4

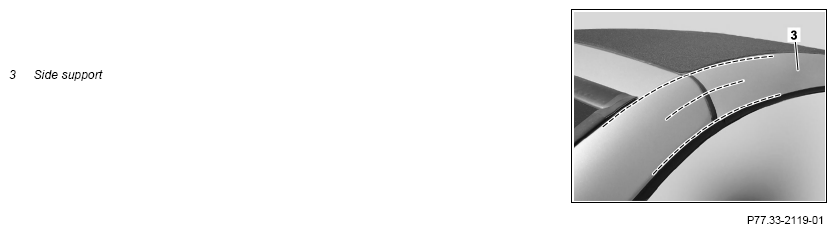

Shown on left side of vehicle on Model 451.4

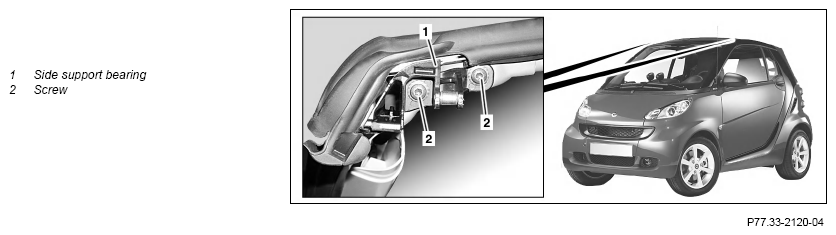

Shown on left side of vehicle on Model 451.4
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove | |||
| 1 | Completely open soft top | ||
| 2 | Remove side support (3) | ||
| 3 | Remove front roof frame paneling | Model 451.4 except code 494 (US version) |
AR68.30-P-4450MCO |
| Model 451.4 with code 494 (US version) |
AR68.30-P-4450MCV | ||
| Model 453.4 | AR68.30-P-4450SRC | ||
| 4 | Mark position of side support bearing (1) | Model 453.4 | |
| 5.1 | Unscrew bolts (2), rotate side support bearing (1) 90° and detach from A-pillar | Model 451.4 | |
| 5.2 | Unscrew bolts (2) and remove side support bearing (1) | Model 453.4 | |
| Install | |||
| 6.1 | Insert side support bearing (1) in A-pillar and rotate 90° | Model 451.4 | |
| 6.2 | Position side support bearing (1) on A-pillar | Model 453.4 |
|
| 7 | Tighten bolts (2) | ||
| 8 | Install side support (3) | ||
| Check | |||
| 9 | Check transitions between A-pillar and side support (3) | Model 453.4 If complaint present ↓ Correct position of side support bearing (1) by loosening bolts (2) |
|
| 10 | Check soft top for proper function | If complaint present ↓ Adjust soft top |
|
| Model 453.4 | AR77.30-P-1010SRC | ||
| Model 451.4 | AR77.30-P-1010MCO | ||
| 11 | Install front roof frame paneling | Model 451.4 except code 494 (US version) | AR68.30-P-4450MCO |
| Model 451.4 with code 494 (US version) |
AR68.30-P-4450MCV | ||
| Model 453.4 | AR68.30-P-4450SRC |
