Remove/Install Front Roof Frame Paneling - AR68.30-P-4450SRC
MODEL 453.4
| Remove/install | |||
| 1 | Remove side supports | ||
| 2 | Remove sun visors | AR68.60-P-5480SR | |

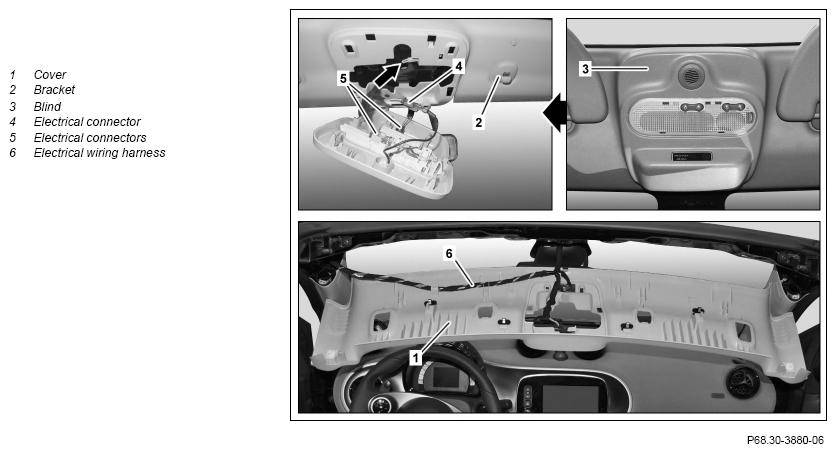

| 3 | Unclip bracket (2) | Figure | |
| 4 | Unlip cover (3) | Figure | |
| 5 | Remove electrical connector (4) from paneling (1), and disconnect | ||
| 6 | Disconnect electrical connector (5) and place cover (3) to one side | ||
| 7 | Unclip paneling (1) | Ensure roof peak seal is in correct installation position. Leaks may occur otherwise. Do not subject electrical wiring harness (6) to excessive force. Otherwise the electrical wiring harness (6) and mirror mounting paneling can be damaged. |
|
| 8 | Unclip electrical wiring harness (6) and remove paneling (1) | Ensure that wiring harness (6) is routed correctly. Otherwise the electrical wiring harness (6) may be damaged. |
|
