Exterior Lights Function - GF82.10-P-0003KJ
MODEL 453.0/3/4
Shown on Model 453 (except 453.091/391/491) without code P25 (LED & Sensor package) and with code 410 (Manual transmission, 5-speed)
Vehicles with code 460 (Canada version) are always assigned code 494 (USA version) at the same time and therefore they have the same lighting equipment.

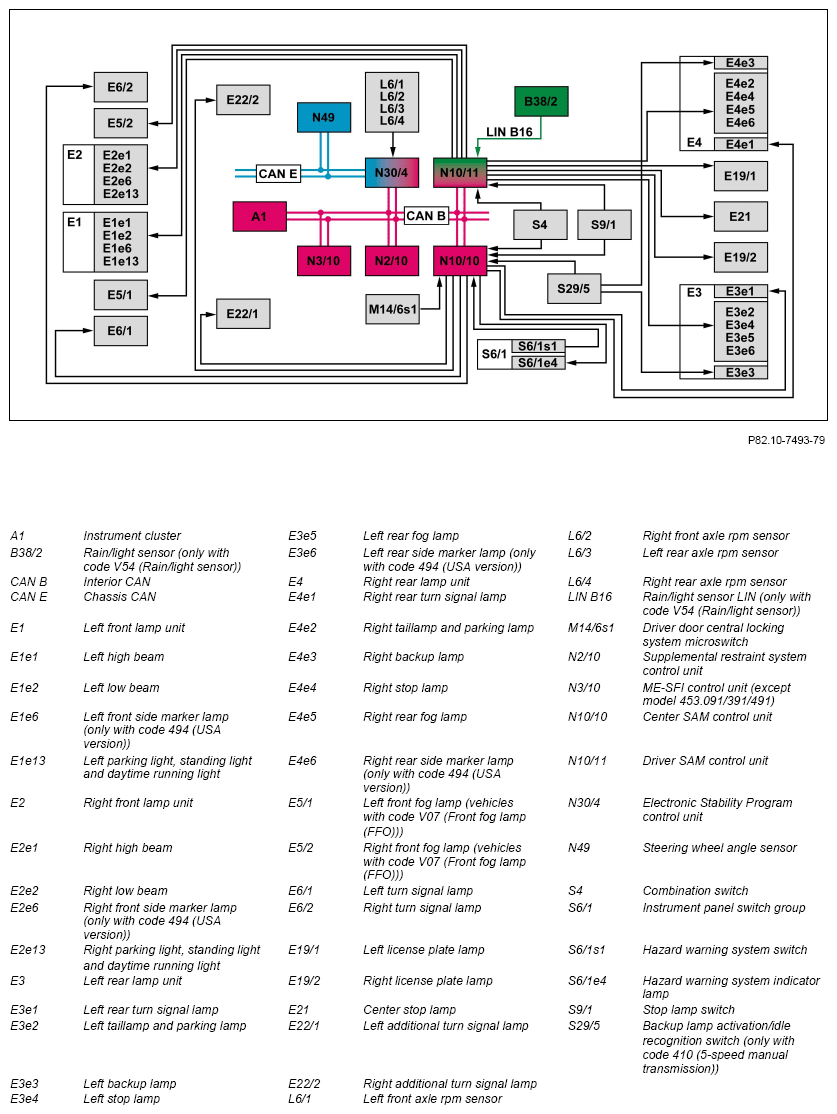

Shown with code 494 (USA version) without code 410 (Manual transmission, 5-speed) and without code P25 (LED & Sensor package) with LED rear lamps (standard in USA)

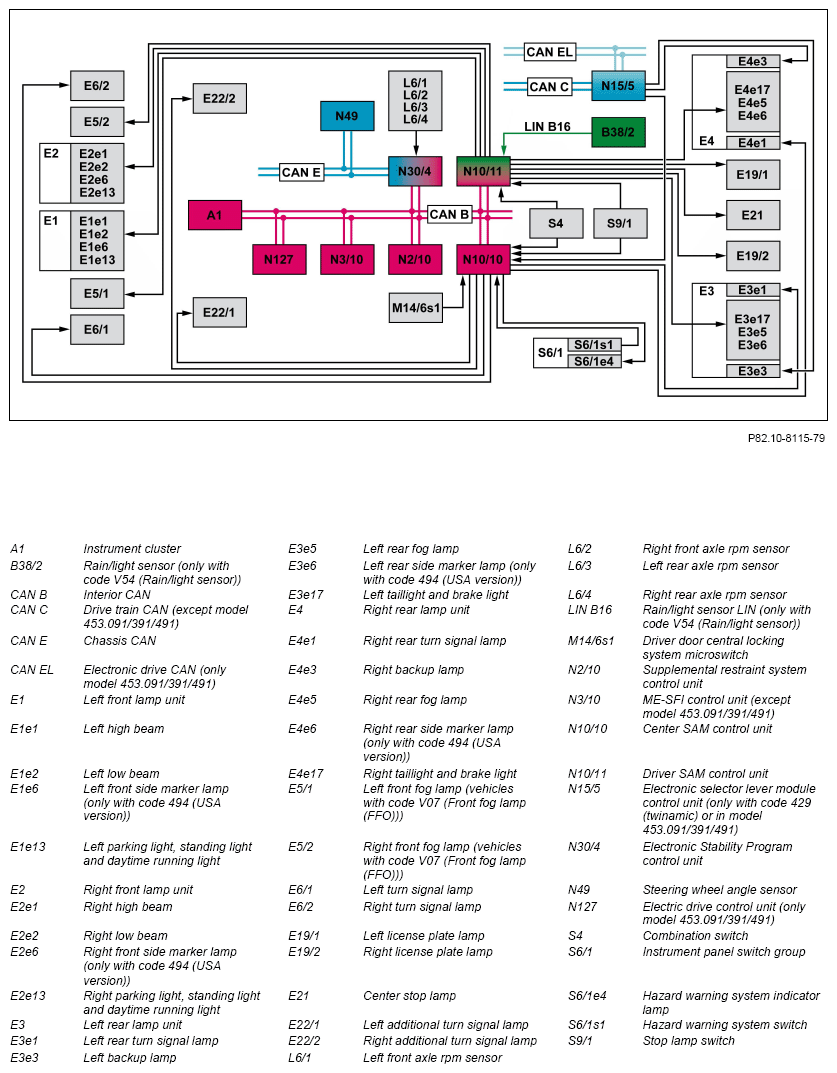

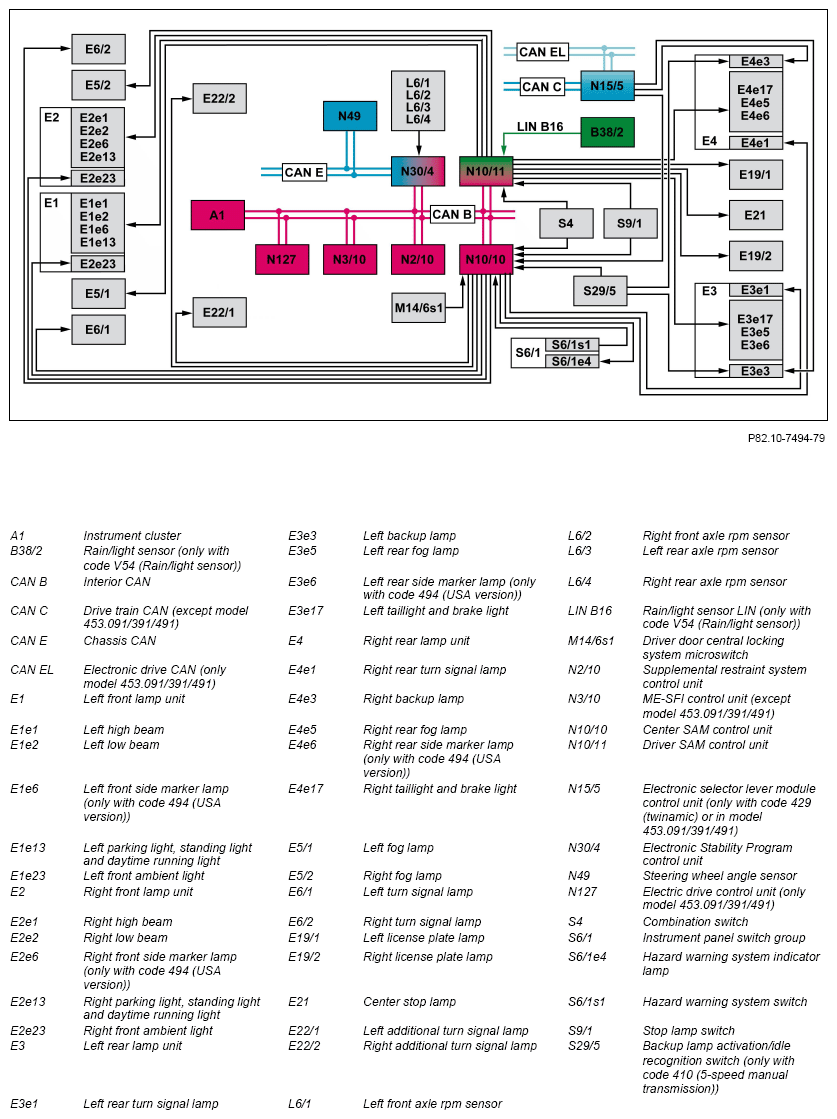

Shown with code P25 (LED & Sensor package)
Function requirements, general
- Circuit 30 ON
Exterior lights (ABL), general
The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.
A differentiation is made between the following versions of the front lamp unit and rear lamp unit in accordance with the vehicle equipment:
- H4-Halogen headlamps with four integrated daytime running light LEDs (standard equipment)
- H4 halogen headlamps with welcome function, integrated daytime running lights in LED optical fiber technology (with code P25 (LED & sensor package))
- Taillamps in LED technology (with code P25 (LED & sensor package) or with code 494 (USA version))
- Taillamp standard equipment
The exterior lights contain the following functions described in separate documents:
- Standing/parking lights actuation function
- Standing lights actuation
- Lights on warning
- Parking lamp actuation
- Driving lights actuation, function
- Low beam actuation
- High beam actuation (high beams, headlamp flasher)
- Daytime running lamps actuation
- Auto on/off driving lights (via rain/light sensor)
- Cornering lights actuation (vehicles as of model year 2017 with code P25 (LED & sensor package) or with code V07 (Front fog lamp (FFO)))
- Front fog light actuation, function
- Turn signal light actuation function
- Turn signaling (left turn signal, right turn signal, one-touch turn signaling)
- Hazard warning flashing
- Brake lights actuation function
- Backup light actuation function
- Headlight switch off delay function
- Locator lighting
- Headlamp range adjustment, function
| Standing/parking lights actuation, function | GF82.10-P-3060KJ | ||
| Headlamp control, function | GF82.10-P-2009KJ | ||
| Front fog light actuation, function | GF82.10-P-3070KJ | ||
| Turn signal indicator actuation, function | GF82.10-P-3008KJ | ||
| Brake light actuation, function | GF82.10-P-3010KJ | ||
| Backup lamp actuation, function | GF82.10-P-3011KJ | ||
| Headlight switch off delay function | GF82.10-P-2011KJ | ||
| Headlamp range adjustment, function | Model 453.0/3/4 except code 494 (US version) |
GF82.10-P-3017KJ |
