Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006SR
MODEL 453
with CODE 220 (Rear parking assist)
MODEL 453
with CODE V52 (Combination code for rear parking aid and reversing camera)

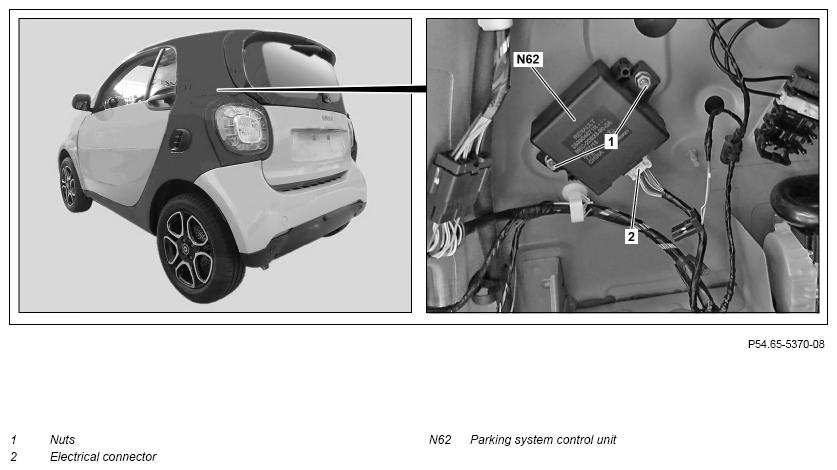

Shown on model 453.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Commission parking system control unit (N62) | AD00.00-P-2000-06SR | ||
| 2 | Remove left covers from load compartment | Model 453.4 with code 220 (Rear parking assist) Model 453.4 with code V52 (Combination code for rear parking aid and reversing camera) |
AR68.30-P-4700SRC |
| Model 453.3 with code 220 (Rear parking assist) Model 453.3 with code V52 (Combination code for rear parking aid and reversing camera) |
AR68.30-P-4800SRA | ||
| Model 453.0 with code 220 (Rear parking assist) Model 453.0 with code V52 (Combination code for rear parking aid and reversing camera) |
AR68.30-P-4800SR | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Unscrew nuts (1) and remove parking system control unit (N62) | ||
| 5 | Install in the reverse order |
