Remove/Install Rear Soft Top Drive Wiring Harness - AR77.39-P-1010SRC
MODEL 453.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left B-pillar paneling | AR68.30-P-4700SRC | |
| 2 | Remove switches of soft top locks | AR77.33-P-0001SRC | |

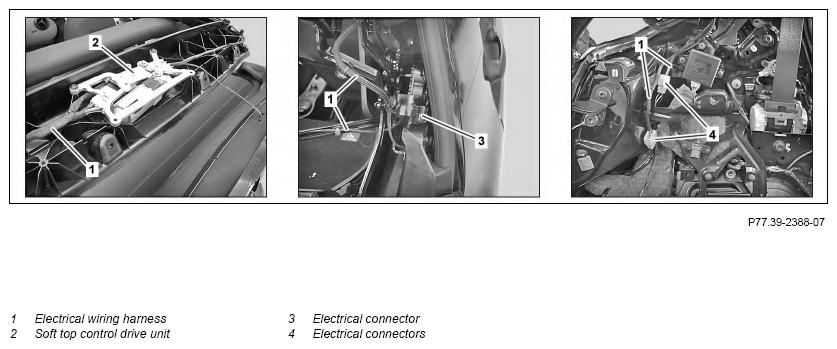

| 3 | Remove soft top control drive unit (2) | AR77.33-P-1234SRC | |
| 4 | Remove left soft top drive electric motor | AR77.39-P-4010SRC | |
| 5 | Disconnect electrical connector (3) at soft top drive electric motor right from above | ||
| 6 | Disconnect electrical connectors at rear window | ||
| 7 | Disconnect electrical connectors (4) | ||
| 8 | Detach electrical wiring harness (1) from body, main bearings and roof cassette, and remove | Make sure that electrical wiring harness (1) is routed correctly. Otherwise the electrical wiring harness (1) can be damaged due to shearing or chafing. |
|
| 9 | Install in the reverse order |
