Remove/Install Soft Top Control Drive Unit - AR77.33-P-1234SRC
MODEL 453.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||

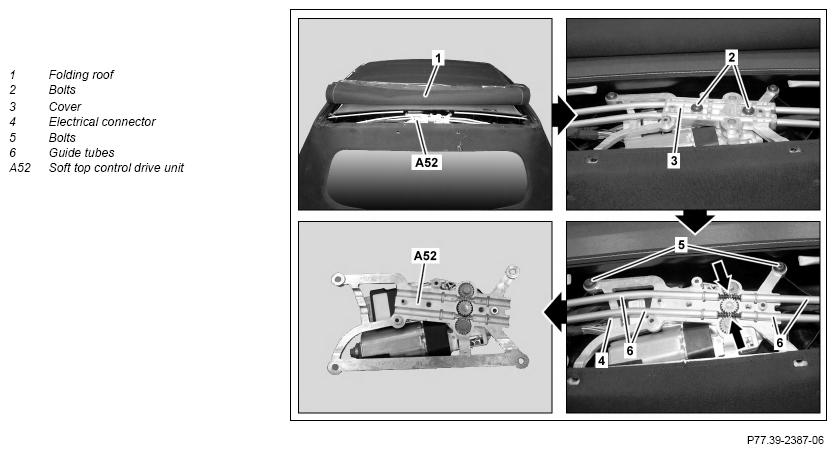

| 1 | Detach folding roof (1) from roof cassette as shown | AR77.30-P-1100MCO | |
| 2 | Remove screws/bolts (2) and remove cover (3) | ||
| 3 | Mark position of drive cables in relation to one another (arrows) | ||
| 4 | Remove bolts (5) | ||
| 5 | Lift guide tubes (6) and take out soft top control drive unit (A52) | ||
| 6 | Release and unplug electrical connector (4) and remove soft top control drive unit (A52) | ||
| 7 | Install in the reverse order |
