Remove/Install Folding Roof Cassette Soft Top Lock - AR77.33-P-0001SRC

MODEL 453.4

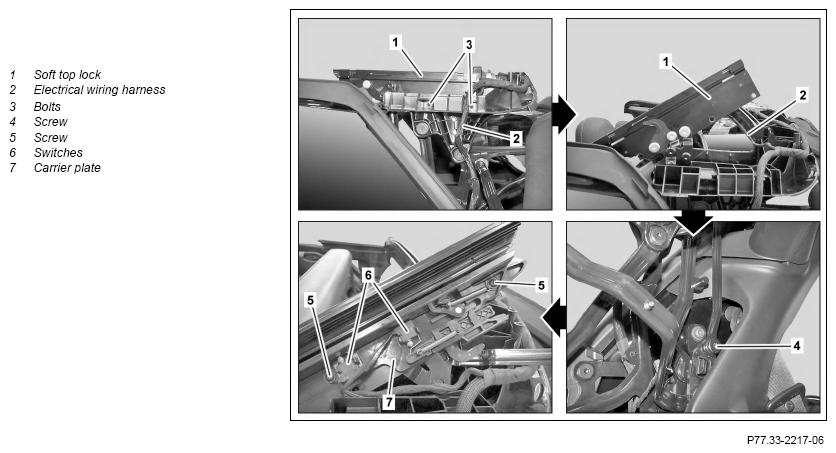

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install
1	Remove guide tubes of relevant drive cable		AR77.30-P-1112SRC
2	Unhook electrical wiring harness (2) from roof cassette
3	Remove bolts (3)
4	Pull soft top lock (1) upwards at rear	Removal  : This releases the soft top lock (1). : Lock soft top lock (1) using pin of B-pillar latch. Pay attention to routing of wiring harness (2).
5	Unscrew bolt (4)
6	Pull soft top lock (1) upwards and out, and turn over
7	Unscrew bolts (5) and remove carrier plate (7) of soft top lock (1)	Observe installation location of bolts (5).
8	Unclip switches (6) and place to one side	The guide pins and spring steel sheets must not be damaged or bent. Otherwise the soft top may suffer malfunction or damage. Only one switch (6) is installed on right side of vehicle. The switches (6) may be replaced individually.
9	Install in the reverse order
